FULL TECHNICAL REVIEW EASUN 60A 40A 30A 20A MPPT SOLAR CHARGE CONTROLLER

Product Introduction

The EASUN POWER MPPT Solar Charge Controller series, encompassing models from 20A to 60A, represents a robust solution for optimizing solar energy harvesting and battery management in diverse off-grid and hybrid solar power systems. This device addresses the critical challenge of maximizing power extraction from solar panels, especially under varying light conditions, by employing advanced Maximum Power Point Tracking (MPPT) technology. Unlike simpler PWM controllers, the EASUN POWER controller dynamically adjusts its operating point to ensure that solar panels always deliver their peak power output, leading to significantly higher energy yields. Designed for versatility, it supports automatic detection of 12V, 24V, 36V, and 48V battery systems and is compatible with a wide range of battery chemistries, including sealed lead-acid, vented, Gel, and Lithium batteries. Its scalability, allowing for unlimited parallel connections, makes it an ideal choice for small residential setups, RVs, remote cabins, and even larger commercial installations requiring efficient and reliable power regulation. Check out our other technical reviews for more hardware testing.

Hardware specifications

Core Specifications: EASUN POWER ICharger-MPPT-48V-60A-E DSP

  • High-concerned chemical: None
  • Brand Name: EASUN POWER
  • Model Number: ICharger-MPPT-48V-60A-E (also available as MPPT-2440, MPPT-2420, MPPT-2430, MPPT-6048)
  • Application: Charger Controller
  • Maximum Current: Up to 60A (continuous 40A for some models, with parallel support up to 120A and unlimited parallel connection)
  • Battery Voltage Detection: Automatic 12V/24V/36V/48V (also 32V setting for 12V/24V models)
  • MPPT Efficiency: >99%
  • Peak Conversion Efficiency: >98%
  • Processor Technology: Built-in DSP controller for high speed and performance
  • Charging Mode: Multi-stage (Three-stage) charging with Equalization charging function
  • Cooling: Fan cooling
  • Battery Compatibility: Sealed lead acid, vented Gel, and Lithium battery, AGM, Flooded
  • Protection Features: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit
  • Additional Features: Multi-function LCD displays, BTS function (Battery Temperature Sensor)
  • Customization: Yes
  • Origin: Mainland China
  • Certification: CE
Available Versions

Available Versions & Selection Guide

The EASUN POWER MPPT Solar Charge Controller is available in several configurations to suit various power requirements and system voltages:

  • MPPT-48V-60A-E: 60A maximum current, designed for 12V, 24V, 36V, 48V auto-detection systems.
  • MPPT-6048: 60A maximum current, designed for 12V, 24V, 36V, 48V auto-detection systems.
  • MPPT-2440: 40A maximum current, designed for 12V/24V auto-detection systems (with 32V setting).
  • MPPT-2430: 30A maximum current, designed for 12V/24V auto-detection systems (with 32V setting).
  • MPPT-2420: 20A maximum current, designed for 12V/24V auto-detection systems (with 32V setting).
Package Contents

What’s in the Box?

Information not available at the moment.

Features and benefits

Why I love EASUN POWER ICharger-MPPT-48V-60A-E DSP

  • Superior Energy Harvesting with High Efficiency: The EASUN POWER MPPT Solar Charge Controller boasts an impressive MPPT efficiency greater than 99% and a peak conversion efficiency exceeding 98%. This means that the controller can extract nearly all available power from your solar panels, even during fluctuating sunlight conditions, significantly increasing the overall energy yield of your solar system compared to less efficient PWM controllers. This directly translates to faster battery charging and more usable power for your applications.
  • Advanced Performance with DSP Technology: Equipped with built-in DSP (Digital Signal Processor) technology, this controller ensures high-speed operation and superior performance. The DSP controller enables intelligent Maximum Power Point Tracking, allowing for rapid and precise adjustments to optimize power extraction from the solar array. This advanced processing capability contributes to the controller’s high efficiency and reliable operation, providing a stable and consistent power flow.
  • Optimized Battery Health and Longevity: The device incorporates a multi-stage (specifically, three-stage) charging mode, which is crucial for maintaining battery health and extending its lifespan. This intelligent charging process includes bulk, absorption, and float stages, ensuring that batteries are charged efficiently without overcharging. Additionally, the equalization charging function helps to balance individual battery cells in a bank, preventing sulfation and further enhancing battery longevity and performance.
  • Broad Compatibility and System Versatility: With automatic battery voltage detection for 12V, 24V, 36V, and 48V systems (and a 32V setting for 12V/24V models), this controller offers exceptional versatility. It is compatible with a wide array of battery types, including sealed lead-acid, vented, Gel, AGM, Flooded, and Lithium batteries. This broad compatibility simplifies system design and allows users to integrate the controller into existing setups or new projects with diverse battery requirements.
  • Comprehensive Protection and Enhanced Safety: Safety is paramount in any power system, and the EASUN POWER controller provides extensive protection features. These include safeguards against PV array short circuits, PV reverse polarity, battery reverse polarity, overcharging, and output short circuits. These protections ensure the longevity of both the controller and connected components, preventing damage from common electrical faults and providing peace of mind for users.
  • Scalable Power Solutions: The controller supports parallel connection, allowing users to combine multiple units for increased current capacity. While individual units can reach a maximum of 60A (with continuous 40A for some models), two 60A units can be put in parallel to achieve a total MPPT capacity of 120A. The system supports unlimited parallel connections, offering exceptional scalability for expanding solar installations as power demands grow. This flexibility makes it suitable for a wide range of applications, from small off-grid systems to larger, more complex power solutions.
  • User-Friendly Monitoring and Thermal Management: Featuring multi-function LCD displays, the controller provides clear and concise information about system performance, making monitoring straightforward. The inclusion of fan cooling ensures efficient thermal management, preventing overheating and maintaining optimal operating conditions, especially during high-load periods. Furthermore, the BTS (Battery Temperature Sensor) function allows for temperature-compensated charging, which is vital for maximizing battery life and performance across varying environmental temperatures.
Pros and Cons

Strengths & Weaknesses:

What I Like

  • High MPPT efficiency (>99%) and peak conversion efficiency (>98%) for maximum energy harvest.
  • Advanced DSP processor technology for intelligent and high-speed performance.
  • Automatic battery voltage detection (12V/24V/36V/48V) for broad system compatibility.
  • Multi-stage (three-stage) charging with equalization function to optimize battery health and lifespan.
  • Comprehensive protection features including PV and battery reverse polarity, short circuit, and overcharge.
  • Compatibility with a wide range of battery types: sealed lead acid, vented, Gel, AGM, Flooded, and Lithium.
  • Scalable design supporting unlimited parallel connections for increased current capacity (e.g., two 60A units for 120A).
  • Integrated fan cooling and BTS function for effective thermal management and temperature-compensated charging.

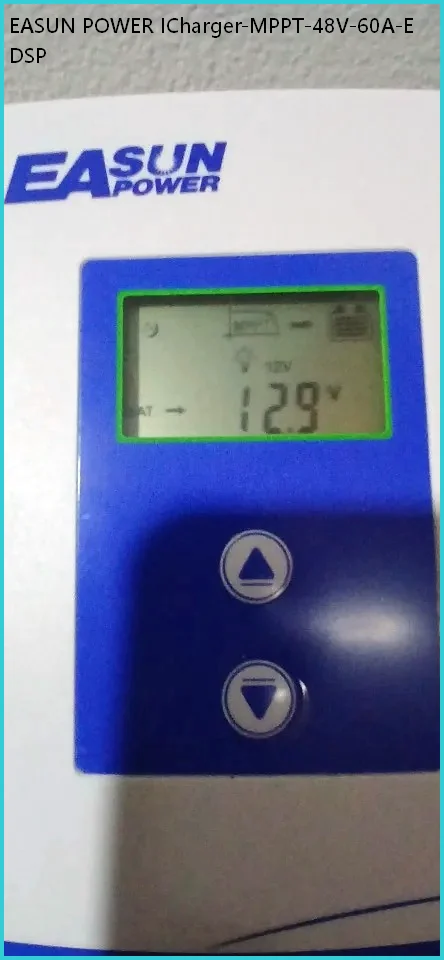

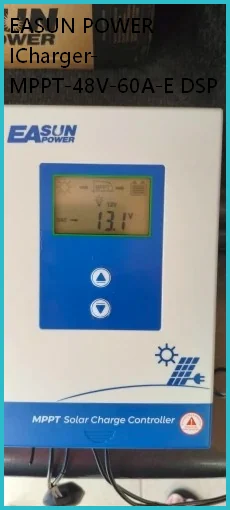

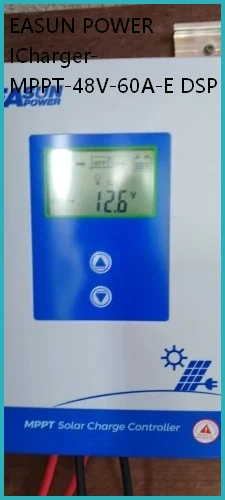

  • Multi-function LCD display for easy monitoring of system parameters.
  • CE certified, ensuring compliance with European safety standards.

Points to Consider

  • Some users reported receiving incorrect amperage models (e.g., 20A instead of 60A) or different models than ordered.

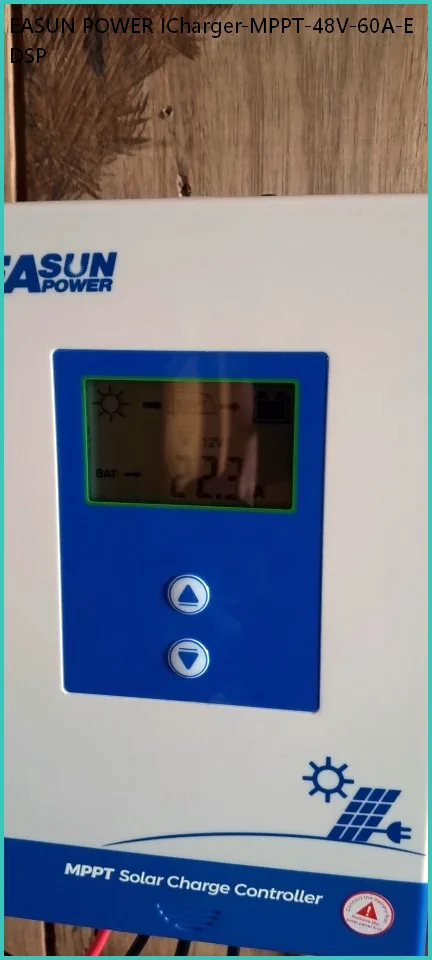

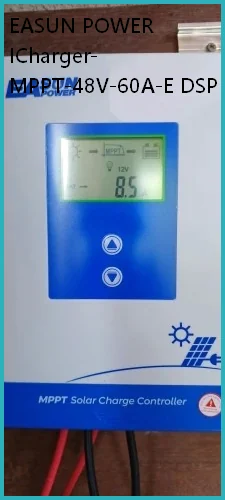

  • The display may lack backlighting, making it difficult to read in low light conditions.
  • Cooling fans can be noisy and lack regulation, activating at relatively low loads (e.g., 750-800W for 60A model).

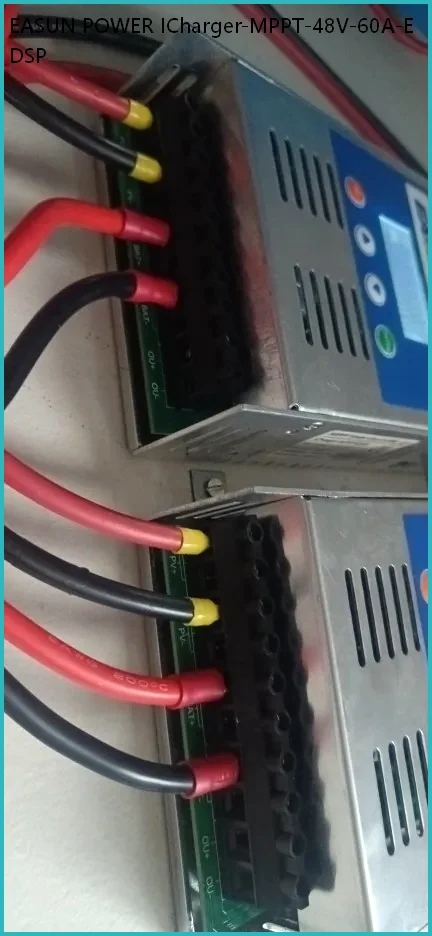

  • Connection terminals (bornes) may be too small, limiting cable size to 6mm, which can be problematic for higher current models (e.g., 60A).
  • Menu navigation can be confusing or difficult to set up for some users.
  • Some models may not be fully compatible with 48V systems despite being advertised as auto-detecting 12V-48V.
  • Reports of units being non-MPPT or not working as advertised, with some being identified as cheaper alternatives (e.g., MiniSolar 60A-V124 instead of Easun 6048).

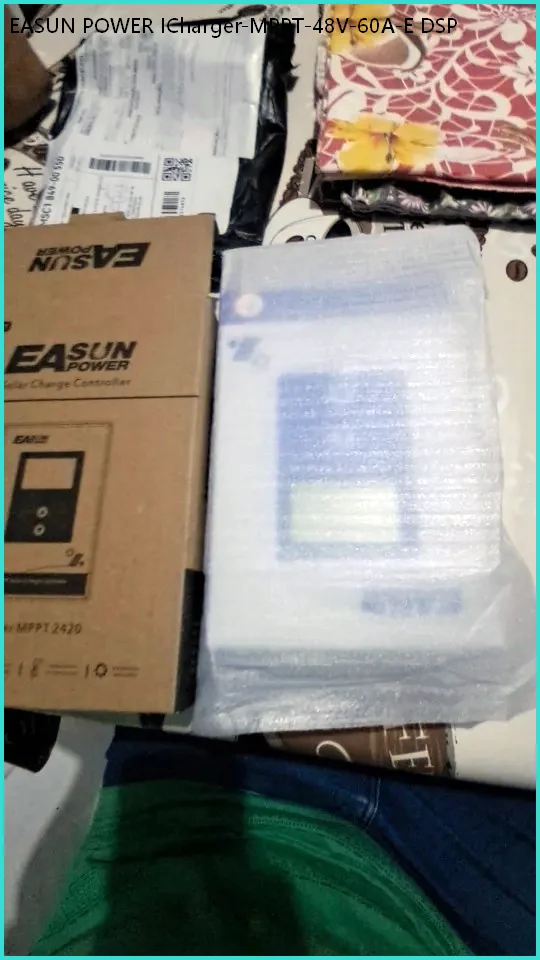

  • Potential for long delivery times and poor packaging, leading to damaged goods.
  • Not explicitly designed for LiFePO4 batteries, despite general «Lithium battery» compatibility, which might require specific settings not easily accessible.
Price and Availability

Where to Buy & Customer Reviews

Check Price on AliExpress (Best Value)

Find on eBay (New & Used)

As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

Store info

STORE

⭐ 95.2% Positive Feedback | 3558 Followers

Name:FNIRSI Official Store
Store no.:2939001
Location:China
Open since:Feb 26, 2017

Detailed seller ratings

Item as Described4.7 Below Average
Communication4.7 Below Average
Shipping Speed4.6 Below Average

OTHER GOODS

User reviews

User Reviews & Feedback Analysis ⭐ 4.3 (78) | Sold (310)

Reviews EASUN POWER ICharger-MPPT-48V-60A-E DSP

Authentic Feedback Analysis:
⭐ 5/5 | BR User: The MPPT seems to be working normally, everything appears to be good quality. The display doesn’t have backlighting, at least I couldn’t find it. Basic configuration is described in the manual, which also includes an installation guide for drilling.
⭐ 5/5 | CL User: Excellent controller, I faithfully recommend this MPPT. I use it with four 500W panels and a 24-volt inverter.
⭐ 5/5 | UA User: Long delivery — two months. Installed it, and it works. Satisfied with the quality. The rear heatsink is large. The fans are unregulated and quite noisy, turning on at approximately 750-800W load.
⭐ 5/5 | BR User: Everything is okay, fast shipping, well packaged. Remember to connect the battery to the controller first, and only then the solar panels.
⭐ 5/5 | UY User: Seems like a great product and arrived very quickly, ahead of schedule. I liked it, just need to test it now, but I recommend it. You can trust the product, delivery is very fast.
⭐ 1/5 | UY User: Good afternoon, I bought a 60-ampere unit and a 20-ampere unit arrived. I didn’t like it.
⭐ 5/5 | IT User: Functional product, perfect for its economic purpose, plus a low price with an AliExpress discount. I recommend the purchase.
⭐ 5/5 | BR User: Very good equipment, great price, and super fast delivery. Congratulations to the seller!
⭐ 5/5 | BR User: Very good equipment, works as specified by the manufacturer. I will buy another one as a spare. Congratulations to the seller for the super fast shipping. You can buy without fear and be happy.
⭐ 5/5 | BR User: Arrived quickly. Very good controller, exactly as advertised without any changes. I am satisfied.
⭐ 5/5 | BR User: I bought it again because the previous one was good. I haven’t tested this one yet, but I believe it will be great.
⭐ 5/5 | PT User: Super fast delivery! Haven’t tested it yet, but it feels very robust.
⭐ 5/5 | RO User: Fast delivery, not tested yet but I know the product, have ordered before. Thank you!
⭐ 4/5 | BR User: The Easun 40A charge controller is a quality product, and this is the second one I’ve bought. I haven’t tested this one’s operation yet!
⭐ 5/5 | BR User: Top inverter arrived quickly and working perfectly.
⭐ 4/5 | BR User: Good equipment, met my expectations.
⭐ 5/5 | AU User: Product received damaged – not the fault of the seller. A refund was promptly offered. Very good, thank you.
⭐ 1/5 | BR User: The connection terminals (bornes) of the charge controller only support cables up to 6mm. This made connection very difficult for me and even raised doubts about whether it truly supports 60A.
⭐ 5/5 | BR User: Everything arrived correctly. I tested it for a week with two 155W panels in series on a 12V system. Its operation is very good, similar to the 30A model which is much smaller than the 60A. I liked it a lot; the heat dissipator is very good, and its coolers haven’t even turned on because the dissipator is so effective. Seller gets a 10 for chat communication.
⭐ 5/5 | BR User: Very good. It manages to generate electricity even on a completely cloudy day. It keeps the battery always charged. I recommend it.
⭐ 5/5 | BR User: Very good product, truly MPPT. It worked perfectly. Menu navigation is simple once you learn how to navigate it.
⭐ 1/5 | FR User: Firstly, the item took over two months to arrive, and I had already received other AliExpress orders placed much later. Secondly, the item arrived defective; I ordered two solar controllers, and after installation, one of them released the sacred blue smoke. I managed to repair it, but the question arises: why did I pay money to wait so long for delivery and then have to repair it myself? Lastly, the packaging looked like it had been through all seven circles of hell. So, draw your conclusions.

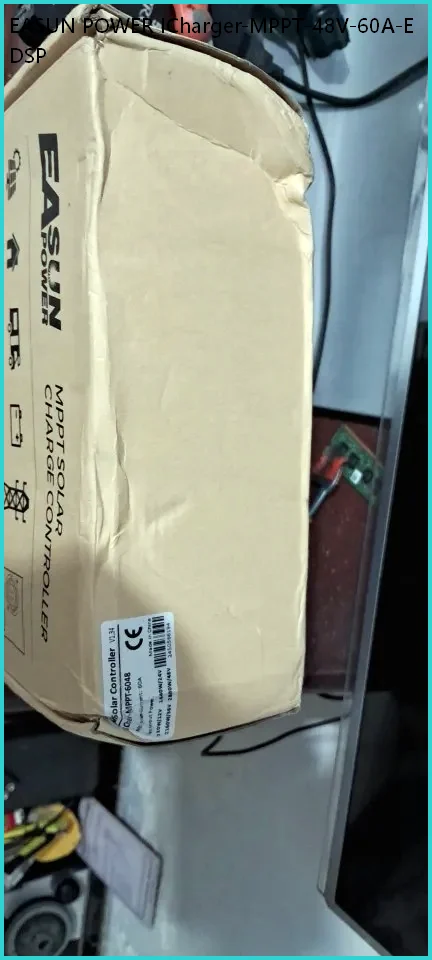

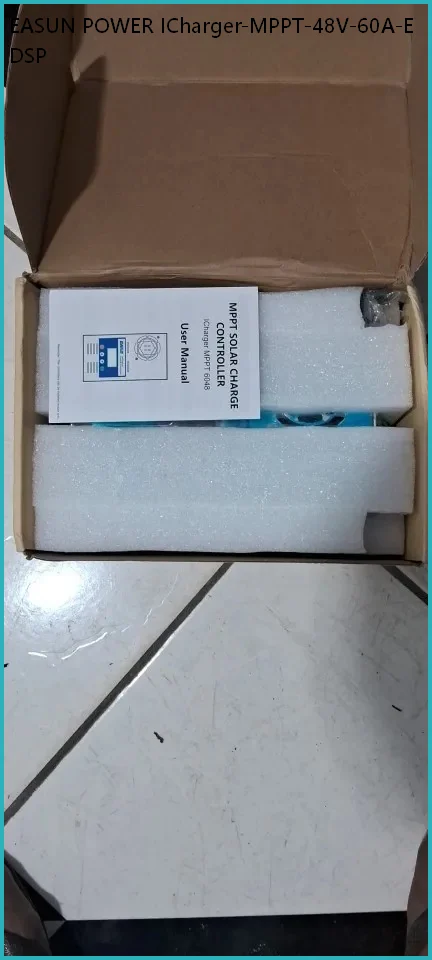

⭐ 5/5 | BR User: The box was very dented, but apparently, the product is okay. It takes a little while to power on.
⭐ 5/5 | BR User: My second charge controller and performing as expected for a 48V battery.
⭐ 1/5 | BR User: The equipment arrived and did not work for my 48V system. The seller advertised it as 12V, 24V, 36V, and 48V automatic, but the equipment came as 12V and 24V only.
⭐ 1/5 | UA User: These are scammers! They sell the cheapest controllers, designed only for lead-acid batteries, as Easun 6048. The photo shows what I received after ordering an Easun 6048. The manual states it’s a MiniSolar 60A-V124. It has nothing in common with Easun 6048, neither software nor hardware!
⭐ 1/5 | ES User: It doesn’t work, you can’t return it, it’s not MPPT. AliExpress is terrible, doesn’t accept returns. Easun is a very bad brand… Choose Victron, it has nothing to do with this.
⭐ 1/5 | BR User: Did not send the product I bought. I bought a 60A and received a 20A. No comments.
⭐ 1/5 | BR User: I bought the 40A and received the 20A. How do I exchange it and receive the 40A I purchased?
⭐ 1/5 | IT User: The controller does not match the description, not reliable.
⭐ 3/5 | UA User: Menu setup is confusing, but otherwise it’s normal.
⭐ 2/5 | TH User: Not easy to set up. Not for LiFePO4 batteries.



Pinout and Interface Map

PRODUCT PARAMETER EASUN POWER ICharger-MPPT-48V-60A-E DSP

MPPT 60A Solar Charge Controller and Discharge Backlight 12V 24V 36V 48V Auto for Vented Sealed Gel Nicd Li Solar Cells Panel

ItemParameter
ModelsICharger MPPT 6048
Charging mode3-stage: constant current(MPPT), constant voltage, floating
System Voltage12/24/36/48/ Auto
Max PV Input Power720W/12V; 1440W/24V 2160W/36V; 2880W/48V
Max PV InDutVoltaae180 Voc
Battery voltage automatic recognitio n12V system (DC8.7V-DC15.5V); 24V system (DC16V-DC31V) 36V system (DC33V-DC41V); 48V system (DC42V-DC64V)
Overcharging protection voltage12V system (16V); 24V system (32V) 36V system (48V); 48V system (64V)
Limited current protection61A
Max efficiency>98.1%
PV utilization>99%
Auto Temperature Compensation-3mV/2V/°C
Protection Function
Temperature protection75’C
Fan-on temperature>45’C
Fan-off temperature<40’C
Properties
Size (mm)214x115x50
Net weiqht(Kq)1.1
Gross weiqht(Kq)1.2
Electromaqnetic compatibilityAccord to EN61000, EN55022, EN55024
EnclosureIP21
Environmental temperature-20*C — +55’C
Storaqe temperature-40’C ~ +75’C
Battery Parameters
Battery TypeSystem VoltEQUBSTFLDBST RLRVLDV
GELAuto14.2V14.2V13.8V13.2V12.6V12.0V
SELAuto14.6V14.4V13.8V13.2V12.6V12.0V
FLDAuto14.8V14.6V13.8V13.2V12.6V12.0V
USEAuto/12y24/36/48VDefined by users
LI12/24/36/48VDefined by usersDefined by users
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.)12V system (360W)12V system (480W)12V system (600W)12V system (720W)
24V system (720W)24V system (960W)24V system (1200W)24V system (1440W)
36V system (1080W)36V system (1400W)36V system (1800W)36V system (2100W)
48V system (1440W)48V system (1700W)48V system (2200W)48V system (2800W)
Comparison table

Technical Specifications & Comparison EASUN POWER ICharger-MPPT-48V-60A-E DSP

Rated charge current20A30A40A60A
Input
Solar panel inputrange16.8V-60V(12V)33.6V-60V(24V)16.8V-75V(12V)33.6V-75V(24V)16.8V-100V(12V)33.6V-100V(24V)16.8V-150V(12V)33.6V-150V(24V)50.4V-150V(36V)67.2V-150V(48V)
System rated voltage12/24V Auto recognized1 2V/24V/36/48VAuto.
Maximum batteryvoltage8V-32V
Maximum input power260W(12V)520W (24V)390W(12V)780W (24V)520W(12V)1040W (24V)780W(12V)1560W(24V)2340W(36V)31 20W(48V)
Output
Rated Discharge Current20A20A20A30A
Battery typeUser default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.
Equalized chargingvoltageMaintenance-freelead-acid battery :14.6V,Duration: 2hoursGEL:No;Lead-acid Flooded battery: 14.8V
Absorption chargingvoltageMaintenance-free lead-acid battery :14.4V,Duration: 2hoursGEL:14.2V ;Lead-acid Flooded battery: 14.6V
Float charging voltageMaintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V
Static loss24V(<50mA)/48V<(35mA)
LVRMaintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V
LVDMaintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V
Light control voltage5V10V15V20V
Temperature compensationcoefficient-4mV/°C/2V(25°C)
Discharge loop voltagedrop≤0.2V
Operating temperature-20°C ~ +55 °C
Storage temperature-30~ +80 °C
Working humidity≤90%, No condensation
Protection classIP30
Grounded typePositive grounded
Aperture for installation中5mm
Comparison table

EASUN MPPT Solar Panel Charger Controller 20A 30A 40A 12V 24V Auto LCD Display Fit for AGM Gel Flooded Lithium Batteries Charger

  • 40A 30A 20A MPPT solar charge controller(Fan cooling)
  • 12V/24V(auto detection);32V(setting)
  • MPPT efficiency>99%,Peak conversion
  • efficiency >98%
  • DSP processors technology ensure high
  • speed and performance
  • Multi-stage charging mode
  • Protection: PV array short circuit ,
  • PV reverse polarity , Battery reverse polarity ,
  • Over charging , Output short circuit
  • Equalization charging function
  • BTS function
ModelsICharer MPPT 2420 2430 2440
Rated charge current20A/30A/40A
System Voltage12/24V Auto recognized
Max PV Input Power260W(12V) 260W(12V)/ 260W(12V) 260W(12V)/520W(12V) 1040W (24V)
Solar panel inputrange16.8V-60V(12V) 33.6V-60V(24V) /16.8V-60V(12V) 33.6V-60V(24V)/16.8V-60V(12V)33.6V-60V(24V)
BatteryVoltageAutomaticRecognition12VSystem(DC8.7V-DC15.SV)24VSystem(DC16V-DC31V)36VSystem(DC33V-DC41V)48VSystem(DC42V-DC64V)
Maximum batteryvoltage8V-32V
Battery typeBattery type
LVDMaintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V
LVRMaintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V
HVDLead acid battery 16V
Temperature compensationcoefficient-4mV/°C/2V(25°C)
Fan-onTemperature>45℃
Fan-offTemperature<40℃
Size(mm)247.3*201*80.3
NeWteight(Kg)1.5
Light control voltage≤90%, No condensation
EnclosureIP30
Opertation Temperature-20°C~+55°C
Storage Temperature-30°C~+70°C
Final summary

Final Verdict: EASUN POWER ICharger-MPPT-48V-60A-E DSP

The EASUN POWER MPPT Solar Charge Controller series offers a compelling solution for those seeking to maximize their solar energy yield and efficiently manage battery charging. Its high MPPT and conversion efficiencies, coupled with advanced DSP technology, ensure optimal power extraction and robust performance across various battery chemistries and system voltages. While the device boasts impressive technical specifications and scalability, potential buyers should be aware of reported inconsistencies in product delivery (receiving incorrect amperage or model) and some user interface challenges. Despite these drawbacks, for hobbyists and professionals building off-grid or hybrid solar systems, the core benefit of superior energy harvesting and comprehensive protection features makes it a valuable investment. The ability to support unlimited parallel connections is a significant advantage, allowing for future expansion and adaptability to growing power needs. For more in-depth analyses, visit andibond.com.
