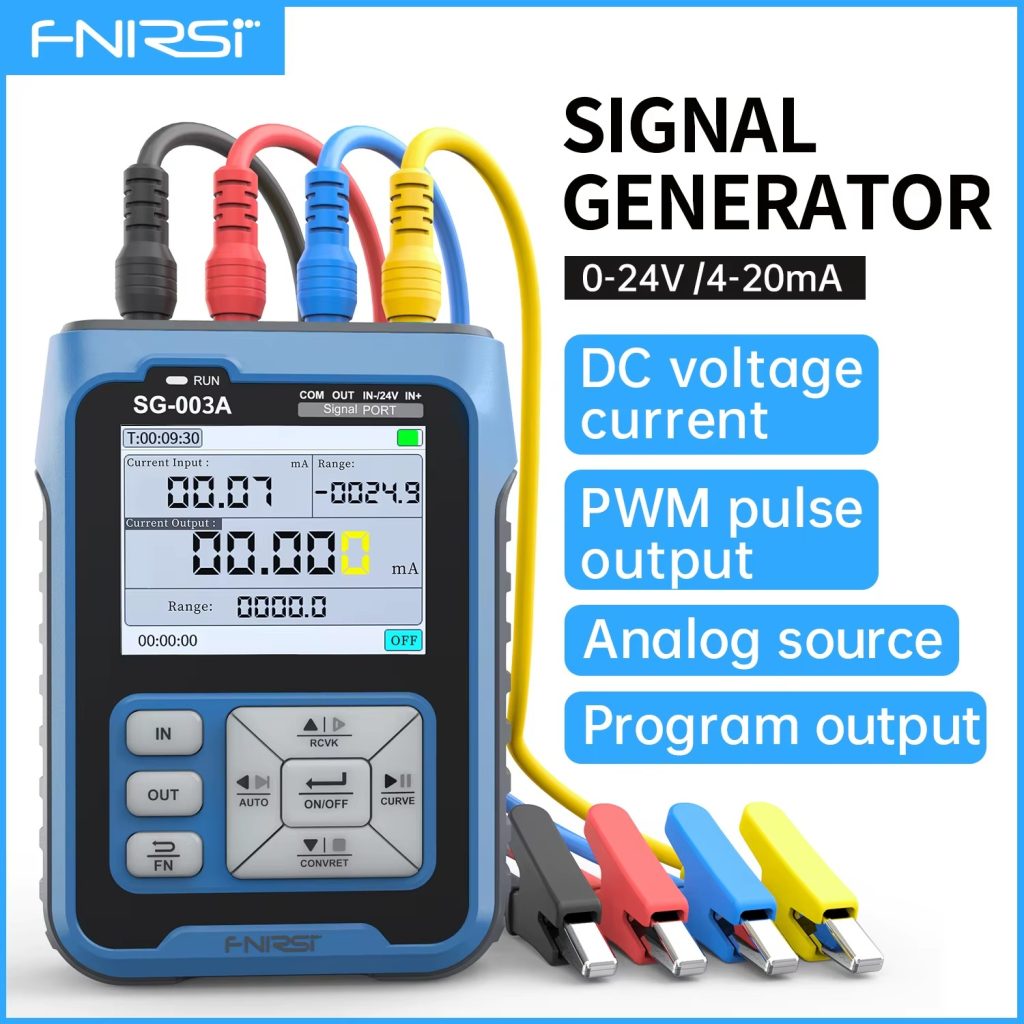

Product Introduction

The FNIRSI SG-003A is a highly versatile and portable signal generator and calibrator designed specifically to address the complex debugging and calibration needs within industrial environments. This compact device serves as an indispensable tool for professionals working with PLCs, process instrumentation, and electric valves, offering a comprehensive suite of signal generation and measurement capabilities. Its unique blend of high precision, extended battery life, and user-friendly interface sets it apart in the market, making it an ideal solution for on-site testing and troubleshooting where reliability and accuracy are paramount. Engineered for efficiency, the SG-003A aims to streamline maintenance and commissioning tasks, reducing downtime and ensuring optimal performance of critical industrial systems. Check out our other technical reviews for more hardware testing.

Hardware specifications

Core Specifications: FNIRSI SG-003A

Model Number: SG-003A
Brand Name: FNIRSI
Origin: Mainland China
Certification: CE
DIY Supplies: Electrical
Battery Included: Yes
High-concerned chemical: None
Display Size: 2.4 Inches (TFT color LCD, 240*320 resolution)
Active current output range: 0~24mA
Active current output resolution: 0.01 mA
Active current output maximum load: 750Ω
Active current output Precision: ±(0.1%+0.005)
Passive current output range: 0-24 mA
Passive current output resolution: 0.01 mA
Passive current output external power supply: Up to 30V
Passive current output Precision: ±(0.1%+0.005)
Voltage output range: 0-24 V
Voltage output resolution: 0.01v
Voltage output maximum current: 30mA
Voltage output Precision: ±(0.1%+0.005)
24V voltage output drive current: 24mA
24V voltage output resolution: 0.01 mA
24V voltage output Precision: ±(0.1%+0.005)
Current input measurement range: 0-24 mA
Current input measurement resolution: 0.01 mA
Current input measurement input impedance: 100Ω
Current input measurement Precision: ±(0.1%+0.05)
Voltage input measurement range: 0-30 V
Voltage input measurement resolution: 0.01 V
Voltage input impedance: 2MΩ
Voltage input measurement Precision: ±(0.1%+0.05)
PWM output (frequency) Range: 0-9999Hz
Battery Capacity: 3000mAh (3.7V lithium battery)
Operating environment: 0 °C — 50 °C
Size: 112mm*82mm*27mm
Net Weight: 165g
Power Interface: Type-C (5V input)
Standby Time: 26 hours
Maximum power consumption: 0.32W
Internal protection: Reverse and overcurrent protection (protection voltage: 30V)

Available Versions

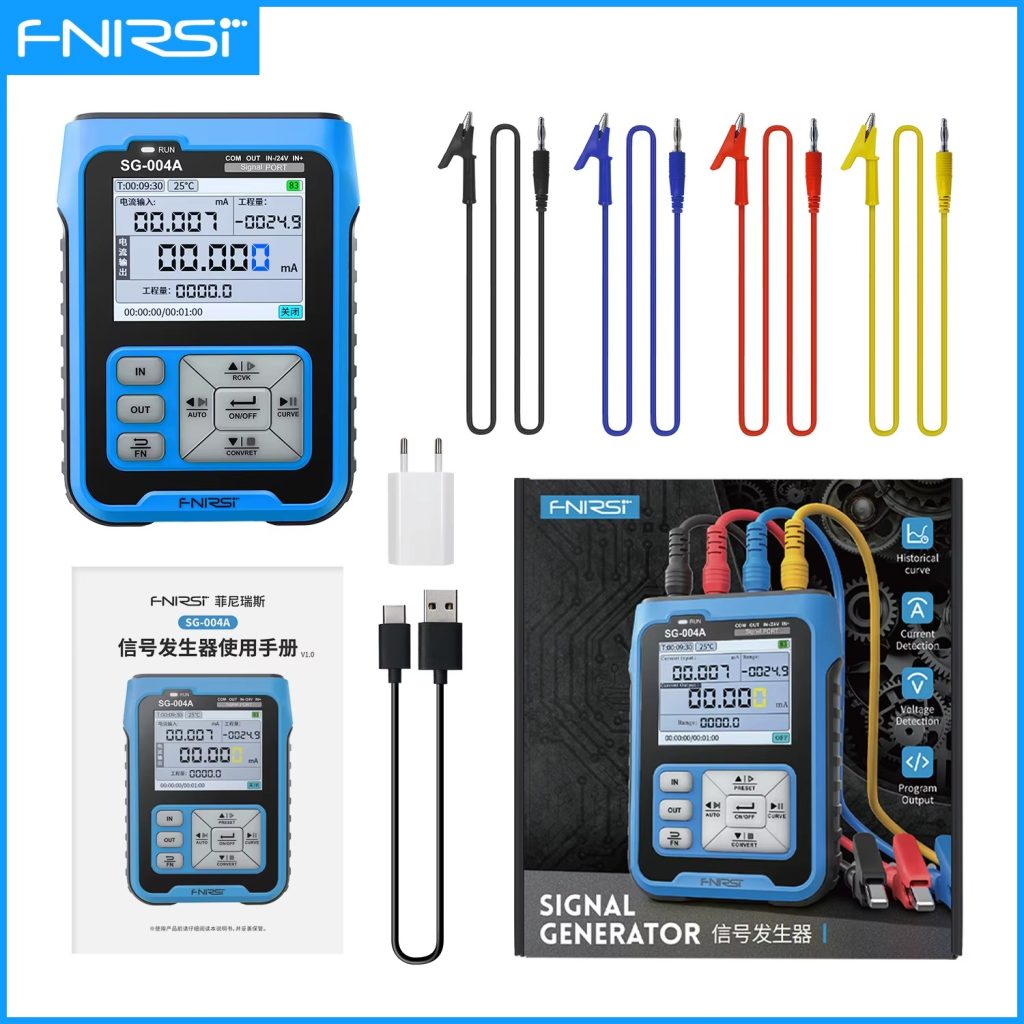

Available Versions & Selection Guide

The FNIRSI SG-003A is available in several versions, including NEW SG-003A, NEW SG-004A-BU, and NEW SG-004A-YE, offering users choices based on specific needs or aesthetic preferences. The core SG-003A model is highlighted for its compact and portable design, weighing just 165g with dimensions of 92mm*72mm*30mm (note: other specs state 112mm*82mm*27mm, using the latter for consistency), making it exceptionally easy to carry for on-site testing. It features versatile output modes including active/passive current and voltage output, alongside PWM for custom frequency sweeps. The device boasts high precision output of ±(0.1%+0.005) ensuring reliable signal generation for precise calibration. Its extended operating environment allows it to function flawlessly in temperatures ranging from 0 °C to 50 °C, making it ideal for diverse conditions. Furthermore, the SG-003A is equipped with a 3000mAh battery, providing up to 26 hours of standby time for prolonged field use.

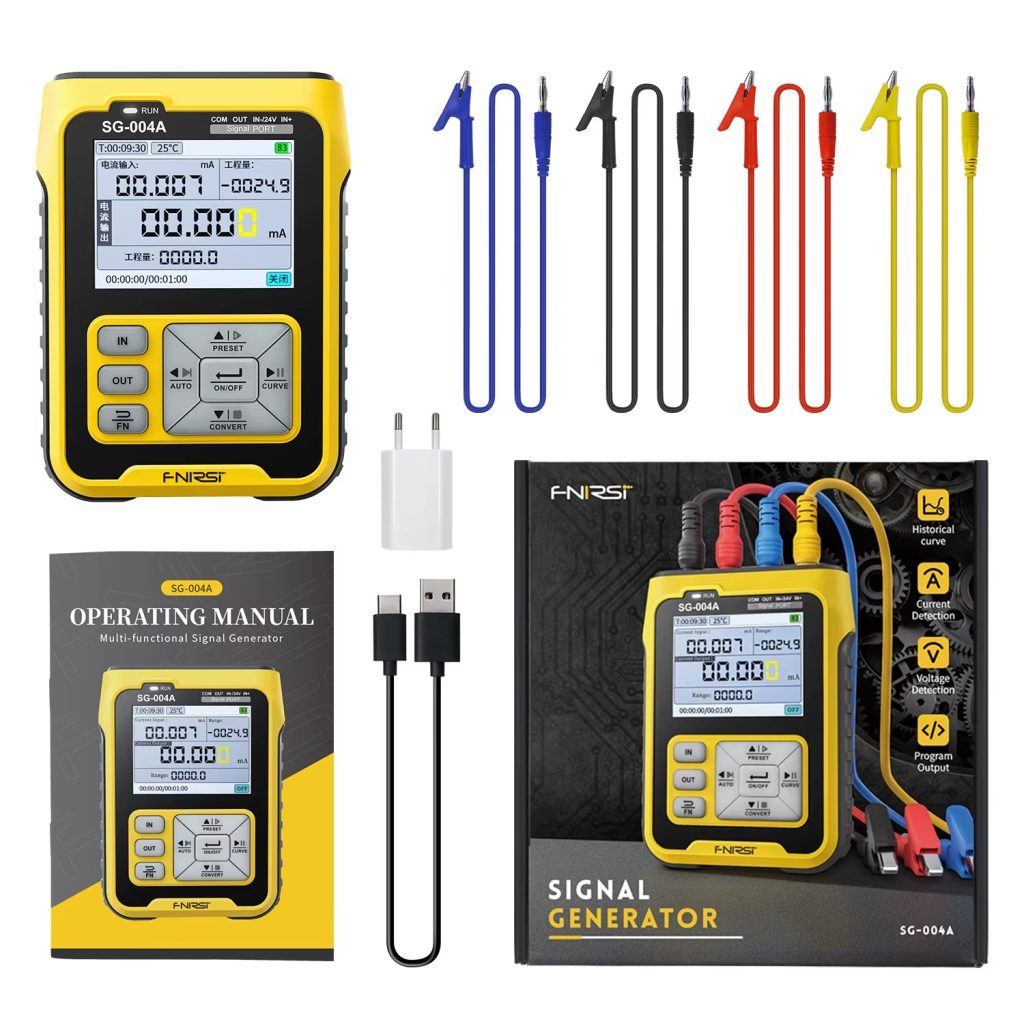

Package Contents

What’s in the Box?

The standard package for the FNIRSI SG-003A includes:
1*FNIRSI SG-003A Multifunctional Signal Generator Calibrator
4*Test Clip
1*Type-C Charging Cable
1*EU Charger

Features and benefits

Why I love FNIRSI FNIRSI SG-003A

Versatile Signal Generation and Measurement: The SG-003A offers a broad spectrum of signal input and output functions, including active current output from 0 to 24mA with a resolution of 0.01mA and a maximum load of 750Ω, passive current output from 0 to 24mA requiring an external power supply up to 30V, and voltage output from 0 to 24V with a maximum current of 30mA. These capabilities, coupled with a precision of ±(0.1%+0.005) for all current and voltage outputs, ensure highly accurate signal simulation for diverse industrial applications.
Comprehensive Measurement Capabilities: Beyond signal generation, the device excels in measurement, providing current input measurement from 0 to 24mA with an input impedance of 100Ω and voltage input measurement from 0 to 30V with an input impedance of 2MΩ. Both measurement functions boast a precision of ±(0.1%+0.05), allowing for precise verification and troubleshooting of industrial sensors and control loops.
Advanced Automatic Output Functions: The SG-003A features an automatic output function for both voltage and current, allowing users to select between single rise, single drop, and cycle modes. This automation is invaluable for testing system responses over time or performing automated calibration routines without constant manual intervention.
Flexible PWM and Frequency Output: With a PWM output range of 0 to 9999Hz and a frequency output precision of ±2% (5 digits), the calibrator enables precise control over frequency and duty cycle. This is particularly useful for testing devices that rely on pulse-width modulation signals, such as motor controllers or specialized sensors.

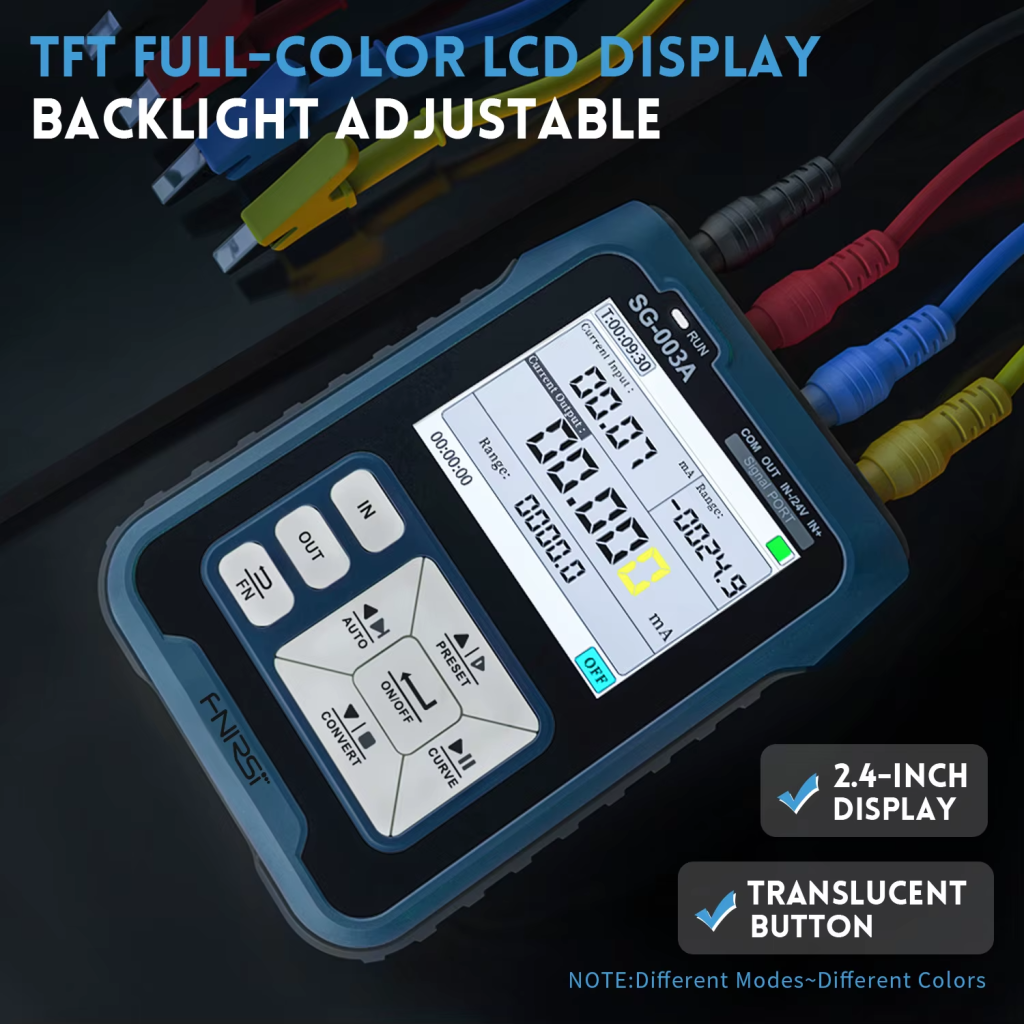

Intuitive User Interface and Display: The device is equipped with a high-definition 2.4-inch TFT color LCD screen with a resolution of 240*320, providing clear and eye-catching readings. The adjustable button backlight further enhances usability, making it convenient for operation in various lighting conditions, from bright daylight to low-light environments.
Robust Power Management and Portability: Powered by a single 3.7V 3000mAh lithium battery, the SG-003A offers an impressive standby time of 26 hours, with typical usage times ranging from 8-10 hours with continuous 20mA output. Its compact size of 112mm*82mm*27mm and lightweight design at just 165g, combined with Type-C charging (5V input), make it exceptionally portable and ideal for field work.
Enhanced Protection and Customization: Internal reverse and overcurrent protection, with a protection voltage of 30V, safeguard the device during operation. Furthermore, the output has a custom function, allowing users to set arbitrary upper and lower output limits, providing tailored control for specific testing scenarios.
Real-time Data Visualization: The inclusion of real-time curve displays for voltage and current input diagrams, with a frame rate of 10 frames, allows for immediate observation of signal changes. This graphical representation is crucial for diagnosing intermittent issues or understanding dynamic system behavior.
Program Extension Features: The device supports program automatic lift output, output timing, preset output, Modbus slave functionality, signal linear conversion output, and USB firmware upgrade, offering advanced capabilities for complex industrial automation tasks and future-proofing.

Pros and Cons

Strengths & Weaknesses:

What I Like

Highly versatile with active/passive current, voltage, and PWM output modes.
High precision of ±(0.1%+0.005) for outputs and ±(0.1%+0.05) for inputs.
Long-lasting 3000mAh battery providing up to 26 hours standby and 8-10 hours continuous use.
Compact and lightweight design (165g, 112x82x27mm) for excellent portability.
Clear 2.4-inch TFT color LCD with adjustable backlight for all lighting conditions.
Automatic output functions (rise, drop, cycle) for efficient testing.
Real-time curve display for dynamic signal analysis.
Robust internal protection against reverse polarity and overcurrent (up to 30V).
Wide operating temperature range of 0 °C — 50 °C.

Points to Consider

Some users reported issues with product functionality as described (though this could be isolated).
Does not generate sinewave signals, which might be a limitation for certain applications.
Cannot replace expensive, high-end calibrators for extremely demanding precision tasks.
One user received incorrect product due to shipping error, not device fault.

Price and Availability

Where to Buy & Customer Reviews

Check Price on AliExpress (Best Value)

AliExpress

Find on eBay (New & Used)

ebay

As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

Store info

STORE

⭐ 98.6% Positive Feedback | 123.0K Followers

Name:	FNIRSI Official Store
Store no.:	2939001
Location:	China
Open since:	Feb 26, 2017

Detailed seller ratings

Item as Described	4.9 Above Average
Communication	4.9 Above Average
Shipping Speed	4.9 Above Average

OTHER GOODS

User reviews

User Reviews & Feedback Analysis ⭐ 4.7 (41) | Sold (264)

Reviews FNIRSI SG-003A

Authentic Feedback Analysis:
⭐ 1.0/5 | AliExpress Shopper: Article does not work as described,
⭐ 5.0/5 | h***h: Good versatile equipment with included battery
⭐ 5.0/5 | AliExpress Shopper: good product, recommended
⭐ 5.0/5 | J***z: Fast purchase and product as described
⭐ 5.0/5 | E***s: Excellent instrument, good build quality, tons of functions, recommended!
⭐ 5.0/5 | W***t: Excellent quality.
⭐ 5.0/5 | I***u: Good product, long-lasting battery. At this price, have a very good precision. In 16 hours of running with max brightness, drained approx. 25% of battery.
⭐ 4.0/5 | L***a: I received it, it seems very good
⭐ 1.0/5 | AliExpress Shopper: I did not receive the selected product, I received two bicycle handlebar holders.
⭐ 5.0/5 | AliExpress Shopper: So far so good. Nice little piece of kit.
⭐ 5.0/5 | AliExpress Shopper: tested today in an industrial environment, for commissioning a radar measurement with 4-20mA, it works very well. being able to measure and simulate a signal is very handy. I am happy with it
⭐ 5.0/5 | s***v: Very useful tool. Helps to quickly localize the problem. Can’t replace expensive calibrators, but for troubleshooting it’s perfect.
⭐ 5.0/5 | AliExpress Shopper: very useful unit. But no sinewave from the generator. Then it was perfect.

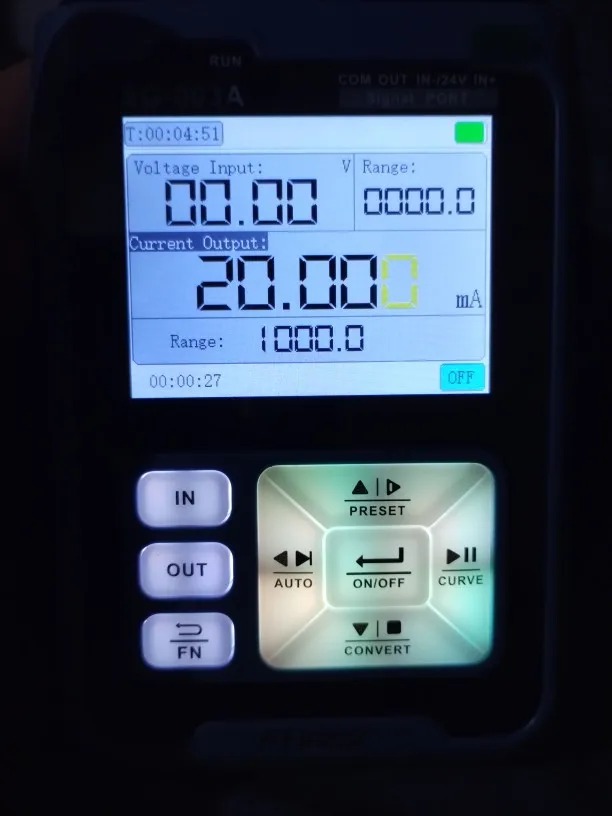

FULL TECHNICAL REVIEW FNIRSI SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Signal Generator 17 | andibond.com

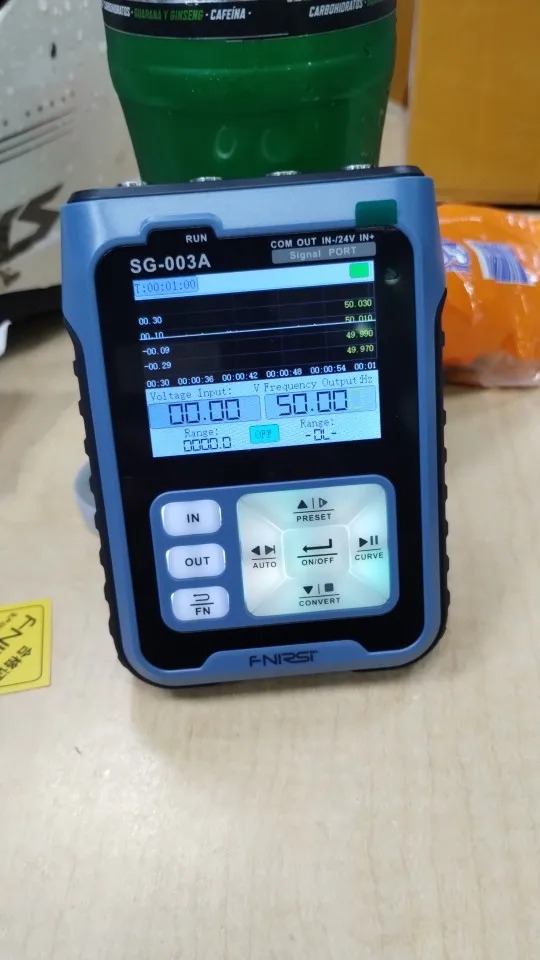

FULL TECHNICAL REVIEW FNIRSI SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Signal Generator 22 | andibond.com

Pinout and Interface Map

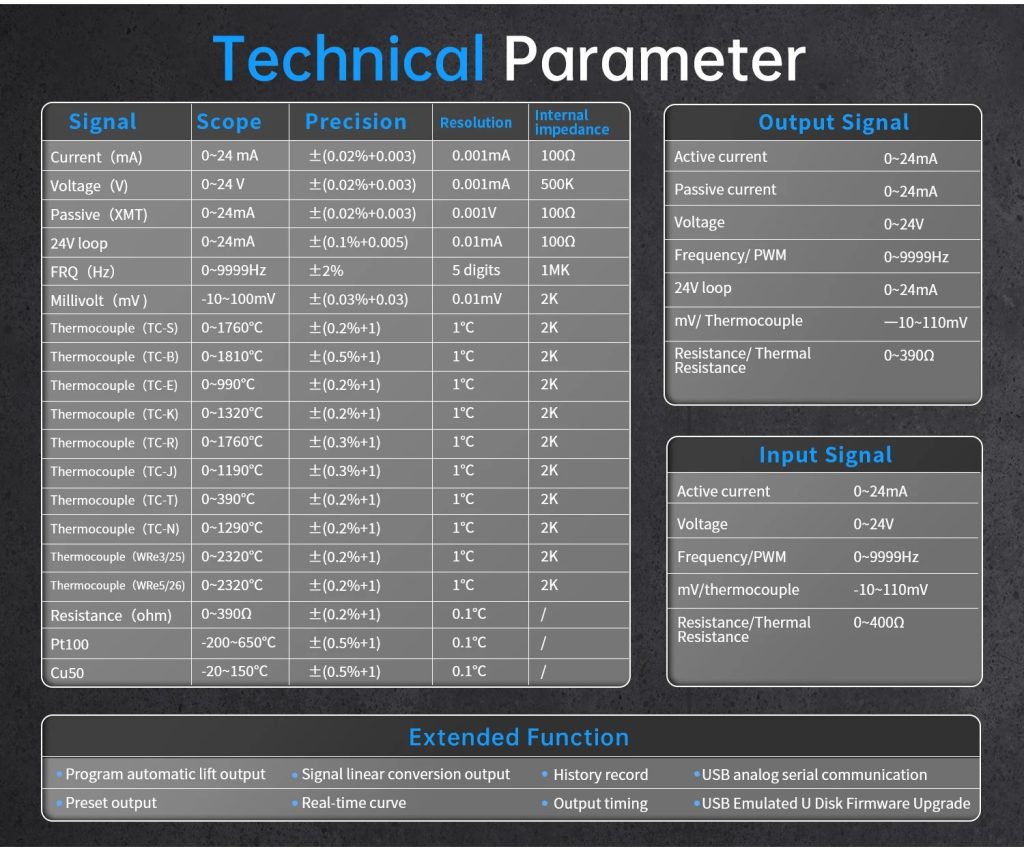

PRODUCT PARAMETER FNIRSI SG-003A

FNIRSI SG-003A

Comparison table

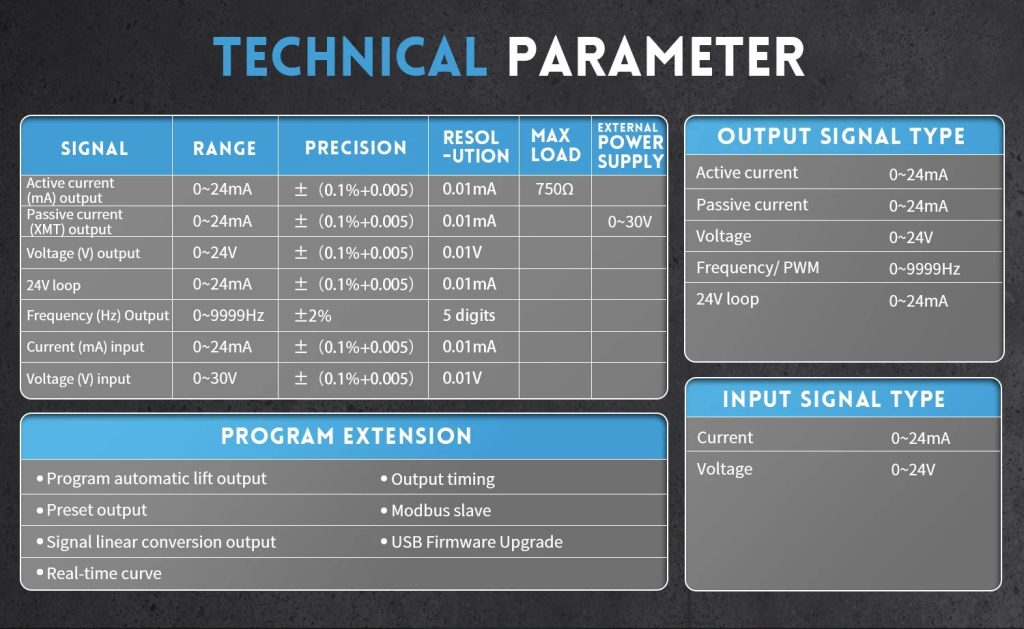

Technical Specifications & Comparison FNIRSI SG-003A
