Product Introduction

The LILYGO T-Knob ESP32-C6-MINI-1U is a highly integrated development board designed to solve the challenge of creating compact, interactive human-machine interfaces and precise motor control solutions. Its unique combination of an ESP32-C6 microcontroller, a TMC6300 motor driver with zero standby current, and an MT6701 Hall-based angle position encoder sets it apart in the market. This versatile device is perfectly suited for projects requiring advanced IoT connectivity, precise rotary input, and efficient motor management, such as smart home devices, robotics, industrial control panels, and interactive art installations. Check out our other technical reviews for more hardware testing.

  • LILYGO T-Knob ESP32-C6-MINI-1U
    • Technical Support & Resources

    Sample Code For Reference:

  • LILYGO T-Knob ESP32-C6-MINI-1U
    • Hardware specifications

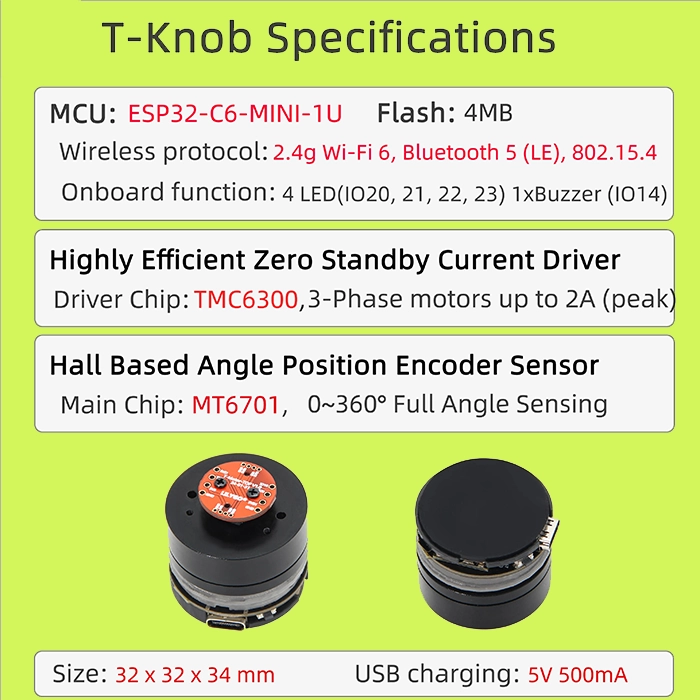

    Core Specifications: LILYGO T-Knob ESP32-C6-MINI-1U

    • MCU: ESP32-C6-MINI-1U
    • Flash: 4MB
    • Wireless Protocol: 2.4g Wi-Fi 6, Bluetooth 5 (LE), 802.15.4
    • Onboard Functions: 4 LEDs (IO20, 21, 22, 23), 1x Buzzer (IO14)
    • Driver Chip: TMC6300 (3-Phase motors up to 2A peak, Highly Efficient Zero Standby Current)
    • Hall Sensor Chip: MT6701 (0~360° Full Angle Sensing)
    • Size: 32 x 32 x 34 mm
    • USB Charging: 5V 500mA
    Available Versions

    Available Versions & Selection Guide

    Version: ESP32-C6-MINI-1U

    Package Contents

    What’s in the Box?

    The LILYGO T-Knob ESP32-C6-MINI-1U board itself.

    Features and benefits

    Why I love LILYGO T-Knob ESP32-C6-MINI-1U

    • Advanced Connectivity with ESP32-C6: The integrated ESP32-C6-MINI-1U offers cutting-edge 2.4g Wi-Fi 6, Bluetooth 5 (LE), and 802.15.4 protocols, enabling robust and high-speed communication for complex IoT applications and seamless integration into smart ecosystems.
    • Efficient Motor Control with TMC6300: Featuring the TMC6300 driver, this board provides highly efficient control for 3-phase motors up to 2A peak, coupled with a critical zero standby current capability, making it ideal for battery-powered devices and energy-sensitive projects.
    • Precise Angular Sensing with MT6701: The MT6701 Hall-based angle position encoder delivers 0-360° full angle sensing, offering highly accurate, contactless, and durable rotational feedback essential for precise control in robotics, HMI, and industrial applications.
    • Compact and Integrated Design: With dimensions of just 32x32x34 mm, the T-Knob is incredibly compact, allowing for easy integration into space-constrained designs, while onboard LEDs and a buzzer provide immediate visual and auditory feedback without additional components.
    • Versatile Onboard Peripherals: The inclusion of four programmable LEDs and a buzzer directly on the board simplifies the development of intuitive user interfaces and provides essential feedback mechanisms, reducing the need for external components and streamlining project development.
    Pros and Cons

    Strengths & Weaknesses:

    What I Like

    • — Integrated ESP32-C6 with Wi-Fi 6, Bluetooth 5 (LE), and 802.15.4 for advanced IoT.
    • — Highly efficient TMC6300 motor driver with zero standby current.
    • — Precise 0-360° Hall effect angle sensor (MT6701) for robust feedback.
    • — Extremely compact form factor (32x32x34mm) for versatile integration.
    • — Onboard LEDs and buzzer simplify user interface and feedback mechanisms.

    Points to Consider

    • — No customer reviews available to gauge real-world user experience.
    • — Limited detailed information on power consumption beyond USB charging.
    • — Specific motor control applications may require additional external components.
    • — Only one version of the board is currently listed.
    • — Pinout diagram not explicitly provided in the product description.
    Price and Availability

    Where to Buy & Customer Reviews

    Check Price on AliExpress (Best Value)

    AliExpress

    Find on eBay (New & Used)

    ebay

    As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

    Store info

    STORE

    96.7% Positive Feedback ⭐ | 30.6K Followers

    Name:lilygo Official Store
    Store no.:2090076
    Location:China
    Open since:Mar 16, 2016

    Detailed seller ratings

    Item as Described4.8 Above Average
    Communication4.8 Above Average
    Shipping Speed4.8 Above Average

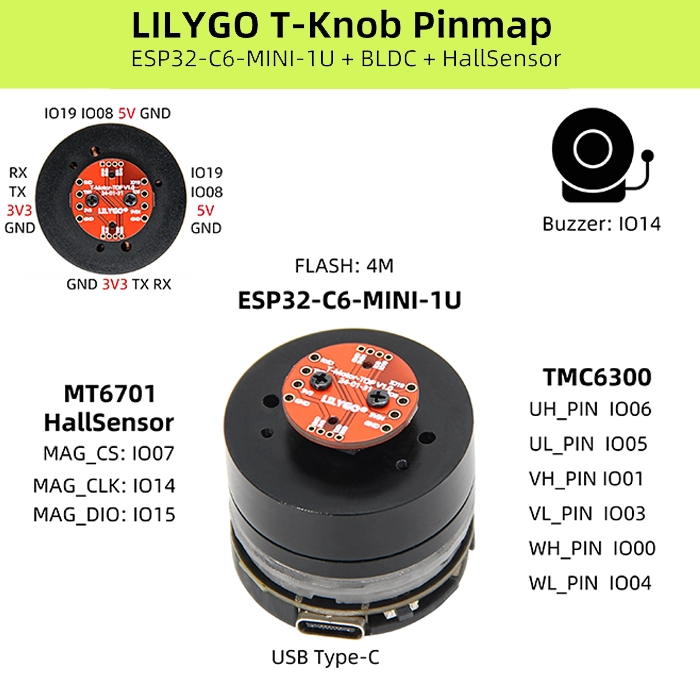

    Pinout and Interface Map

    Pinout Configuration: LILYGO T-Knob ESP32-C6-MINI-1U

    LILYGO T-Knob ESP32-C6-MINI-1U

  • LILYGO T-Knob ESP32-C6-MINI-1U
    • Final summary

    Final Verdict: LILYGO T-Knob ESP32-C6-MINI-1U

    The LILYGO T-Knob ESP32-C6-MINI-1U is an exceptional choice for developers and hobbyists seeking a compact, feature-rich solution for interactive control and motor management. Its integration of a powerful ESP32-C6 with Wi-Fi 6, a precise Hall encoder, and an efficient motor driver makes it highly versatile for IoT, robotics, and HMI projects. While the lack of user reviews and detailed power consumption data are minor considerations, the board’s unparalleled combination of advanced connectivity, precise sensing, and efficient motor control in a tiny footprint easily outweighs these points. It’s an ideal investment for those looking to innovate with a highly integrated and capable development platform. For more in-depth analyses, visit andibond.com.
