FULL TECHNICAL REVIEW LILYGO T-Display-S3-Pro ESP32-S3

Отandibond
Product Introduction

The LILYGO T-Display-S3-Pro ESP32-S3 is an advanced development board designed to address the growing demand for compact, feature-rich solutions in IoT and HMI applications. It stands out with its larger 2.33-inch touch display, powerful ESP32-S3 chipset, and integrated peripherals like ambient light and proximity sensors, making it uniquely versatile. This board is ideally suited for projects requiring an interactive user interface, robust wireless connectivity, and sensor data processing, from smart home devices and portable gadgets to Meshtastic communication nodes. Check out our other technical reviews for more hardware testing.

  • LILYGO T-Display-S3-Pro
    • Technical Support & Resources

    Sample Code For Reference:

  • LILYGO T-Display-S3-Pro ESP32-S3
  • LILYGO T-Display-S3-Pro ESP32-S3
  • LILYGO T-Display-S3-Pro ESP32-S3

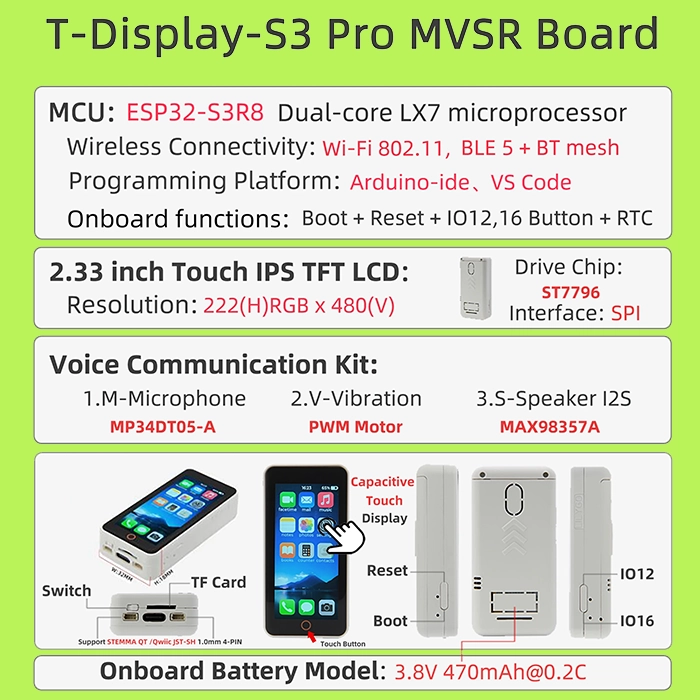

    • Hardware specifications

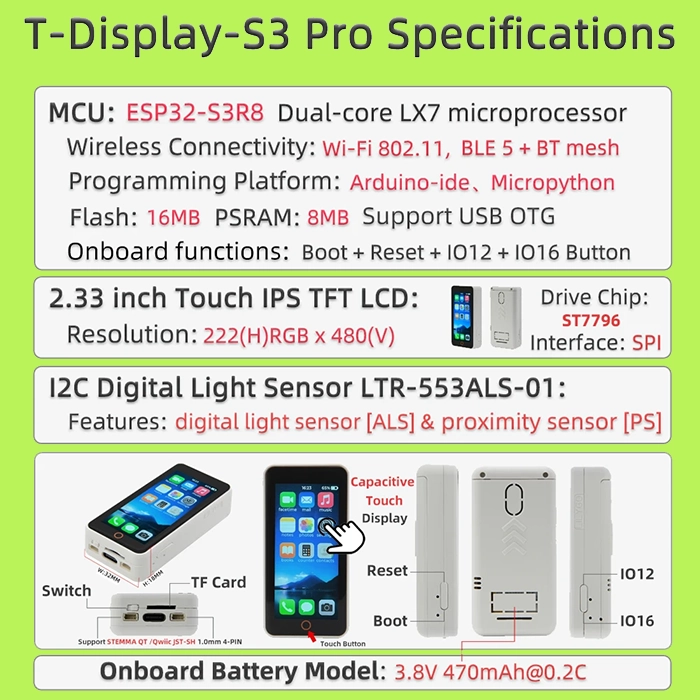

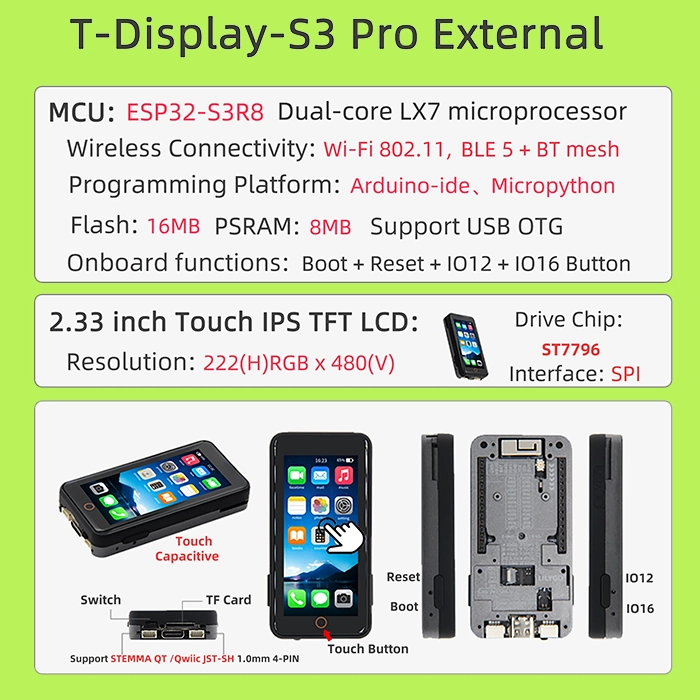

    Core Specifications: LILYGO T-Display-S3-Pro ESP32-S3

    • MCU: ESP32-S3R8 Dual-core LX7 microprocessor
    • Wireless Connectivity: Wi-Fi 802.11, BLE 5 + BT mesh
    • Programming Platform: Arduino-ide, Micropython, VS Code (for MVSR)
    • Flash: 16MB
    • PSRAM: 8MB
    • Display: 2.33 inch Touch IPS TFT LCD, Resolution: 222(H)RGB x 480(V), Drive Chip: ST7796, Interface: SPI
    • I2C Digital Light Sensor: LTR-553ALS-01 (Ambient Light Sensor & Proximity Sensor)
    • Battery: Onboard 3.8V 470mAh@0.2C
    • USB: Support USB OTG (via SY6970 chip)
    • Onboard Buttons: Boot, Reset, IO12, IO16
    • Dimensions: 72x18x32mm
    • Optional Modules: MPU9250 IMU, Camera (OV5640, GC0308), Voice Communication Kit (Microphone MP34DT05-A, Vibration PWM Motor, Speaker I2S MAX98357A), TF Card
    Available Versions

    Available Versions & Selection Guide

    The LILYGO T-Display-S3-Pro ESP32-S3 is available in numerous configurations, often distinguished by color, included camera module, or specialized features:

    • White Standard Version (K231)
    • White GC0308 Camera Version (K239)
    • White OV5640 Camera Version (K232)
    • White Orange Standard Version (K233)
    • White Orange GC0308 Camera Version (K240)
    • White Orange OV5640 Camera Version (K235)
    • Black Standard Version (K234)
    • Black GC0308 Camera Version (K241)
    • Black OV5640 Camera Version (K236)
    • Orange Standard Version (K237)
    • Orange GC0308 Camera Version (K242)
    • Orange OV5640 Camera Version (K238)
    • Orange，OV5640 Camera
    • Black，OV5640 Camera
    • Black Gray，MVSR Version
    • Black，GC0308 Camera
    • Orange，MVSR Version
    • Orange，GC0308 Camera
    • Black，MVSR Version
    • Orange，Basic Version
    • White Orange，MVSR Version
    • Black，External Extension
    • White，MVSR Version
    • White Orange，External Extension
    • White，External Extension
    • Black Gray，OV5640 Camera
    • Black Gray，GC0308 Camera
    • Black Gray，Basic Version
    • Orange，External Extension
    • White Orange，GC0308 Camera
    • White Orange，Basic Version
    • Black，Basic Version
    • White Orange，OV5640 Camera
    • White，Basic Version
    • White，OV5640 Camera
    • White，GC0308 Camera

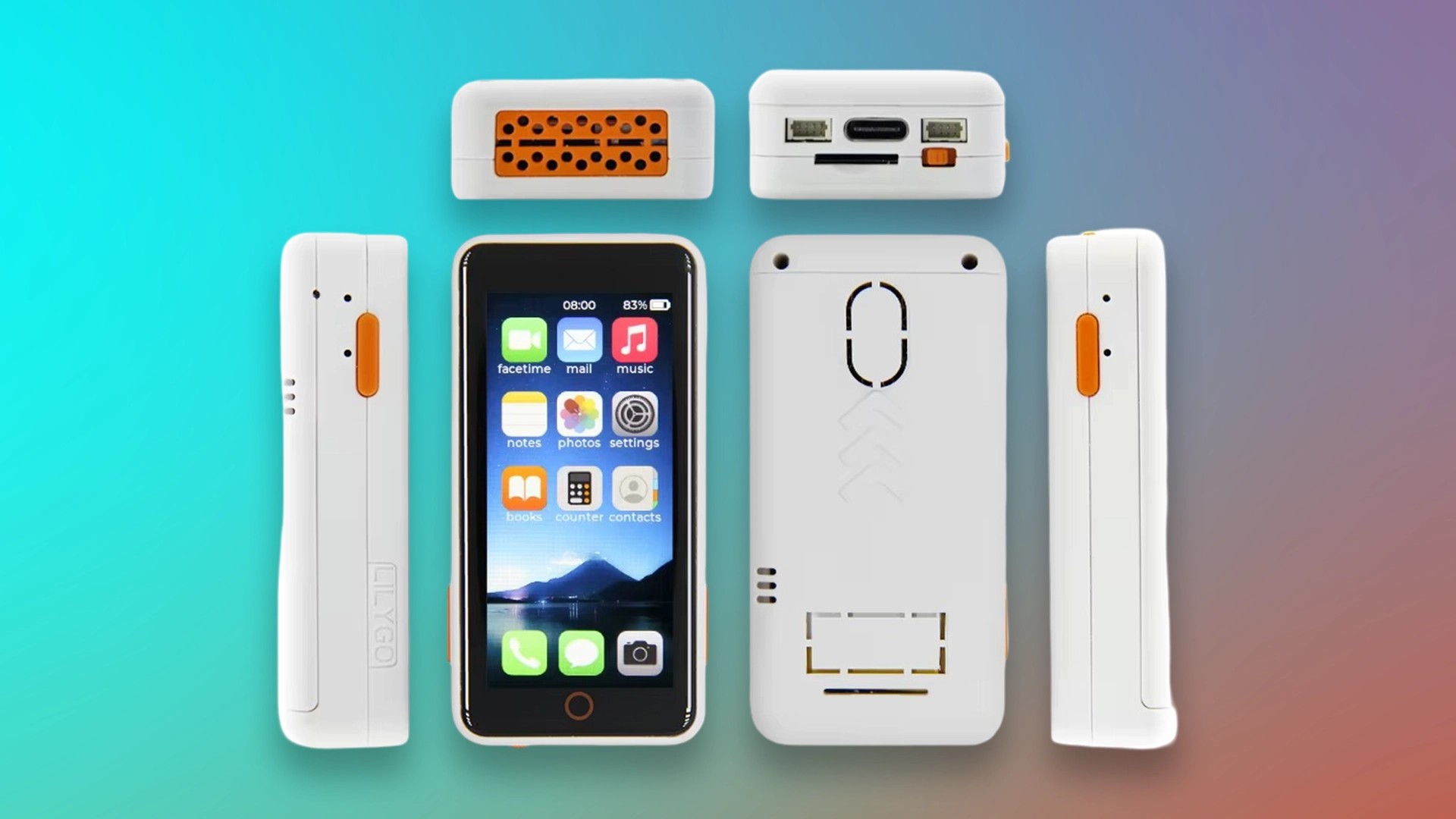

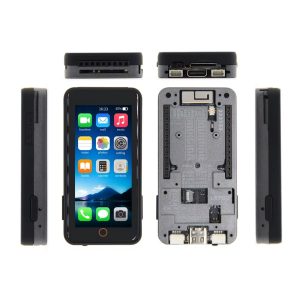

  • LILYGO T-Display-S3-Pro
  • LILYGO T-Display-S3-Pro
  • LILYGO T-Display-S3-Pro
  • LILYGO T-Display-S3-Pro
  • LILYGO T-Display-S3-Pro
    • Package Contents

    What’s in the Box?

    Basic development board (specific components depend on selected version).

    Features and benefits

    Why I love LILYGO T-Display-S3-Pro ESP32-S3

    • Powerful ESP32-S3R8 Dual-core LX7 Microprocessor: This robust MCU provides ample processing power for complex IoT applications, enabling real-time data processing, efficient handling of display and sensor data, and supporting advanced algorithms, making it ideal for demanding projects requiring high performance.
    • Large 2.33-inch Touch IPS TFT LCD: The vibrant and interactive display offers a superior user interface for HMI applications, data visualization, and intuitive control in embedded systems. Its touch capability simplifies user interaction, reducing the need for external buttons and enhancing user experience.
    • Versatile Wireless Connectivity (Wi-Fi 802.11, BLE 5 + BT mesh): Ensures seamless integration into existing networks, direct communication with mobile devices, and the creation of robust mesh networks. This is crucial for distributed sensor systems, smart home automation, and various IoT scenarios.
    • USB OTG Support with SY6970 Chip: The inclusion of the SY6970 chip allows the board to function as a USB host, enabling direct connection to peripherals like keyboards, mice, or external storage. This significantly expands its utility for standalone applications, data logging, or field deployments without a host PC.
    • Integrated I2C Digital Light and Proximity Sensors (LTR-553ALS-01): These onboard sensors facilitate context-aware applications such as automatic display brightness adjustment, presence detection, or gesture control. This integration reduces the need for external components and simplifies sensor data acquisition.
    • Modular Camera Expansion via POGOpin: The flexible design allows for easy addition of camera modules (OV5640, GC0308), providing imaging capabilities for surveillance, object detection, or visual feedback. This makes the board highly adaptable for projects requiring visual data capture.
    • Built-in 3.8V 470mAh Battery and Power Switch: Offers excellent portability and standalone operation, which is essential for battery-powered devices, remote monitoring, or mobile applications where a constant power source is unavailable. The power switch adds convenience for managing power consumption.
    • Dual Integrated QWIIC Ports: These ports simplify the connection of I2C peripherals, accelerating prototyping and significantly reducing wiring complexity for developers already utilizing the QWIIC ecosystem, promoting rapid development cycles.
    Pros and Cons

    Strengths & Weaknesses:

    What I Like

    • — Powerful ESP32-S3R8 MCU for demanding tasks
    • — Large, vibrant 2.33-inch touch IPS display
    • — Comprehensive wireless connectivity (Wi-Fi, BLE, BT mesh)
    • — USB OTG support for expanded peripheral connectivity
    • — Integrated ambient light and proximity sensors
    • — Modular camera expansion options
    • — Built-in battery and power management
    • — Convenient QWIIC ports for easy prototyping
    • — Compact dimensions and good build quality

    Points to Consider

    • — Case design can make soldering difficult and display cable removal problematic
    • — GC0308 camera module is generally not recommended for quality
    • — «Tiny tiny» size might be too small for some applications or users
    • — Limited detailed documentation for all optional modules (e.g., MPU9250 IMU)
    Price and Availability

    Where to Buy & Customer Reviews

    Check Price on AliExpress (Best Value)

    AliExpress

    Find on eBay (New & Used)

    ebay

    As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

    Store info

    STORE

    96.7% Positive Feedback ⭐ | 30.6K Followers

    Name:lilygo Official Store
    Store no.:2090076
    Location:China
    Open since:Mar 16, 2016

    Detailed seller ratings

    Item as Described4.8 Above Average
    Communication4.8 Above Average
    Shipping Speed4.8 Above Average

    OTHER GOODS

    User reviews

    User Reviews & Feedback Analysis ⭐ 4.8 (23) | Sold (155)

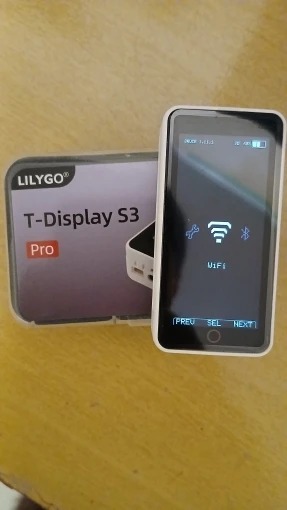

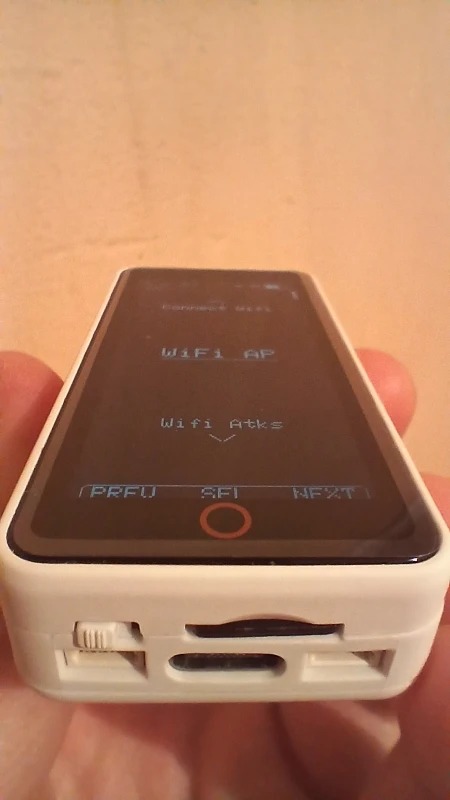

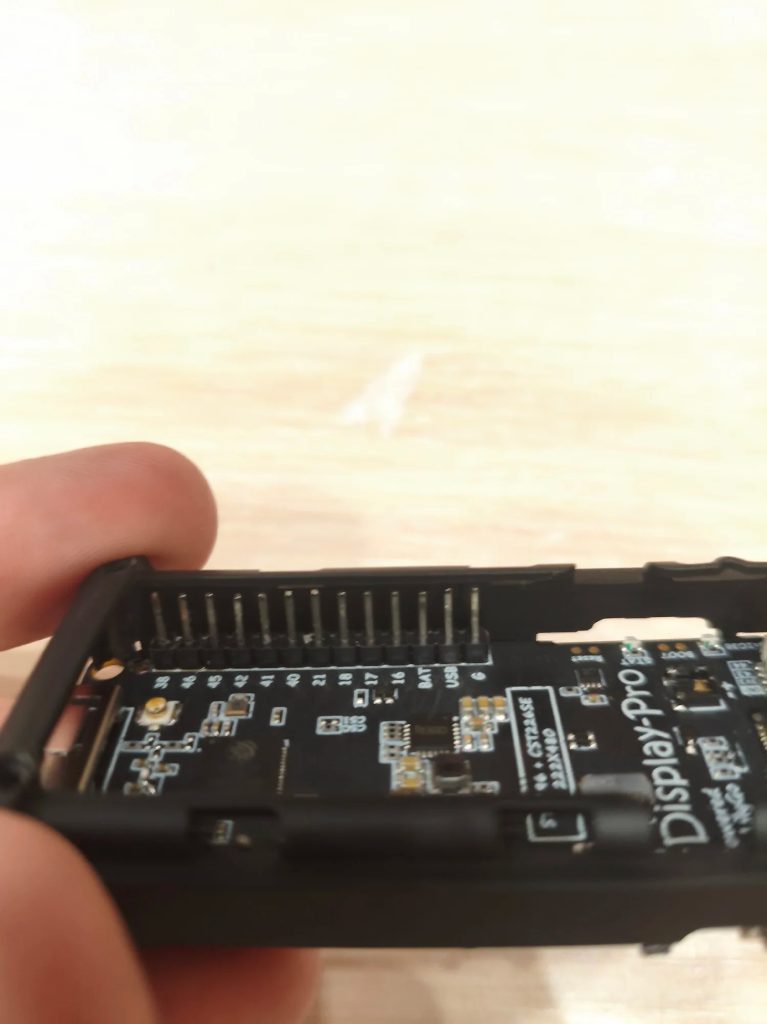

    Reviews LILYGO T-Display-S3-Pro ESP32-S3

    5 Stars 4.8

    Authentic Feedback Analysis:

    ⭐ 5.0/5 | A***s: muito bom vou conectar um cc1101 nele ai vai ficar melhor ainda é bem construído e bem bonito estou satisfeito
    ⭐ 5.0/5 | J***o: Produto excelente atendeu as minhas necessidades, leve e com uma interface fácil de manusear.
    ⭐ 5.0/5 | С***ь: До Москвы доехал быстро. Качество супер. В живую выглядит лучше чем на фото. То что надо! Продолжайте делать годные вещи ))
    ⭐ 5.0/5 | J***o: Muito bom

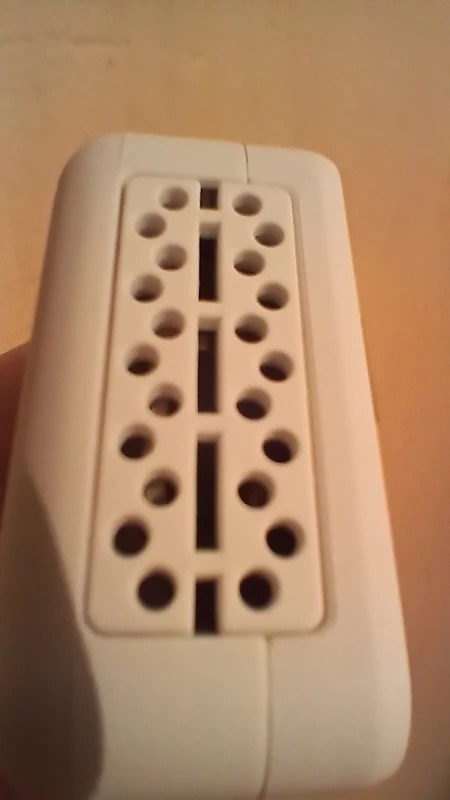

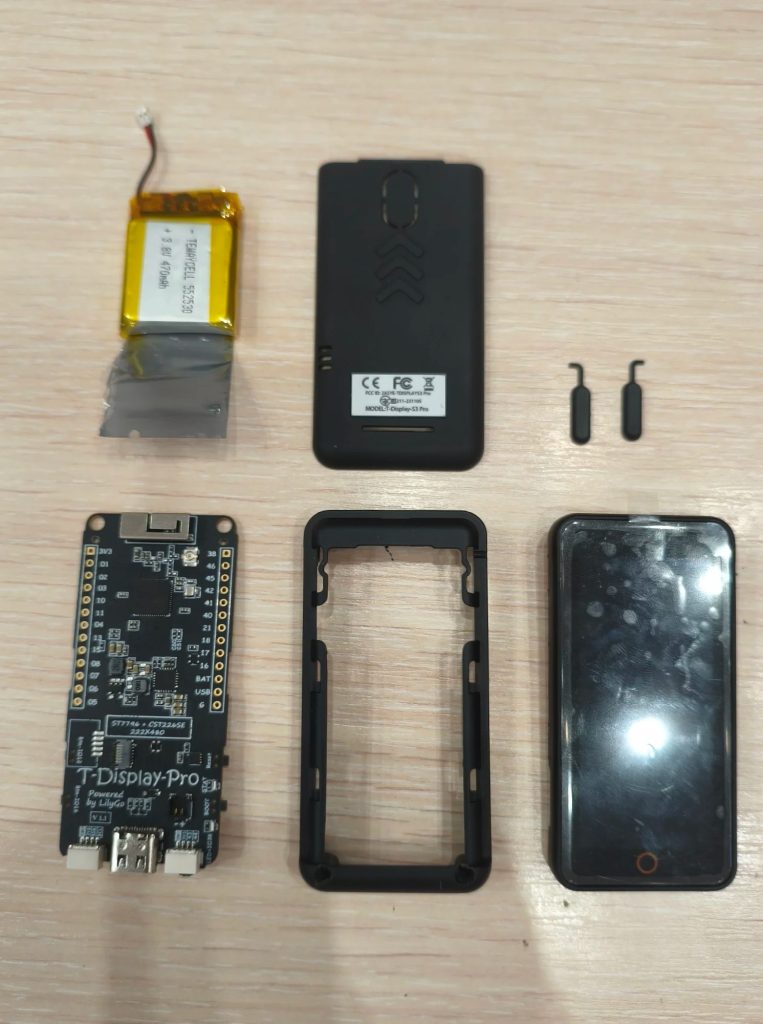

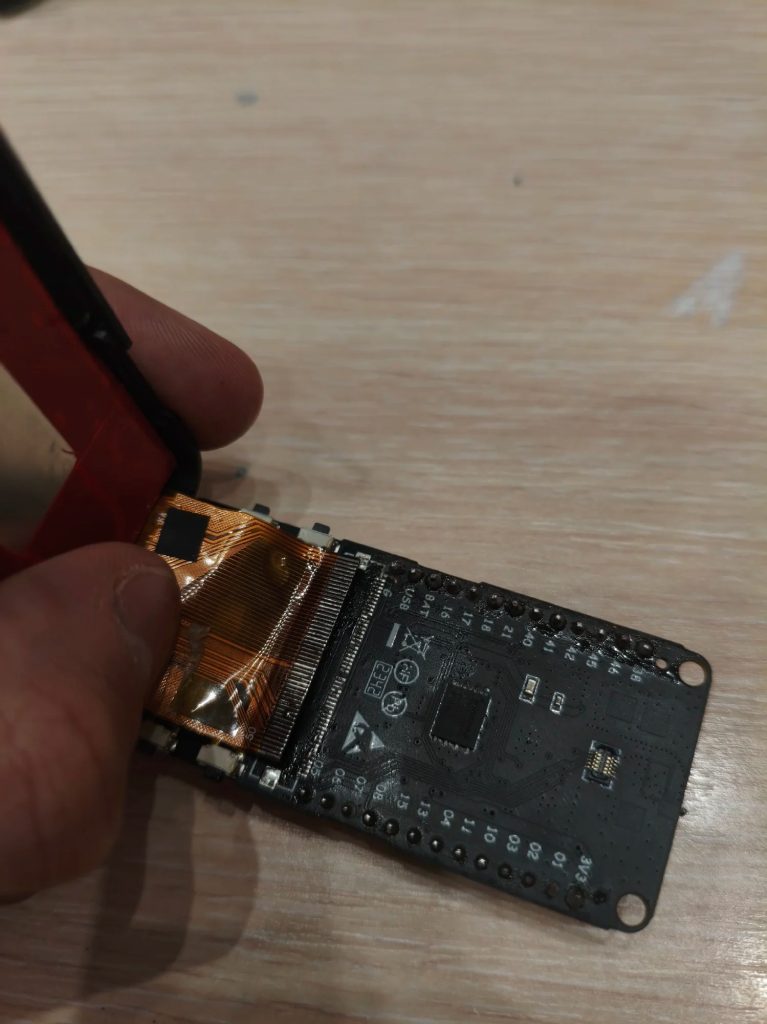

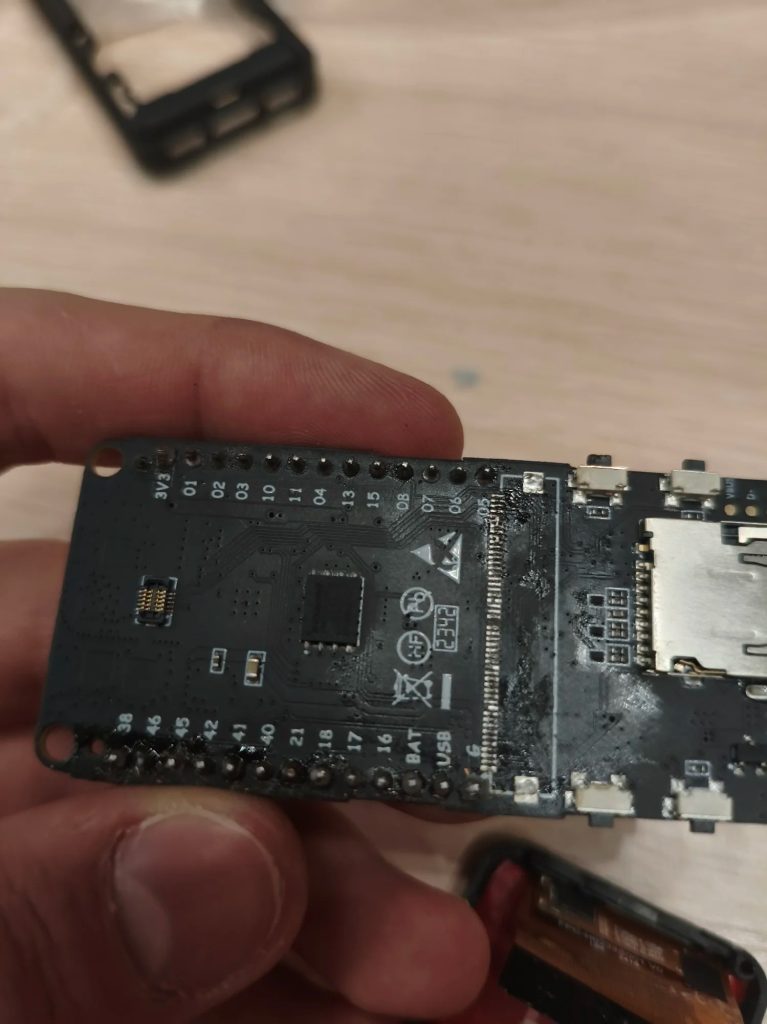

    ⭐ 1.0/5 | Ф***ч: A very good case, in which it is impossible to properly solder the protrusions for the contacts where the soldering holes are located, and especially the display cable connector, which, if removed, is impossible to insert back.
    ⭐ 5.0/5 | M***a: bardzo polecam zakupy od Lilygo. dostawa na czas jak zawsze. Produkt rewelacyjny. Mam już sporo przedmiotów od tej firmy i za każdym razem jestem zadowolony.
    ⭐ 5.0/5 | d***r: small, didn’t stress test the battery but it didn’t run out during use. buy the ov5640 camera, it’s worth the extra cost the gc0308 is not up to the task.
    ⭐ 5.0/5 | M***a: super sprzęt jak zawsze od Lilygo, perfekcyjne wykonanie i możliwości rozwoju i tworzenia własnych projektów. Polecam produkt oraz sprzedawcę każdemu.
    ⭐ 5.0/5 | a***r: Article was delivered and fully intact. Everything is fine.
    ⭐ 5.0/5 | AliExpress Shopper: Top poduct and fast delivery
    ⭐ 5.0/5 | M***n: Great product. But beware, it’s tiny tiny.
    ⭐ 5.0/5 | J***o: Muito obrigado!
    ⭐ 5.0/5 | AliExpress Shopper: Great nifty gadget
    ⭐ 5.0/5 | AliExpress Shopper: Bom

  • FULL TECHNICAL REVIEW LILYGO T-Display-S3-Pro ESP32-S3 13 | andibond.com

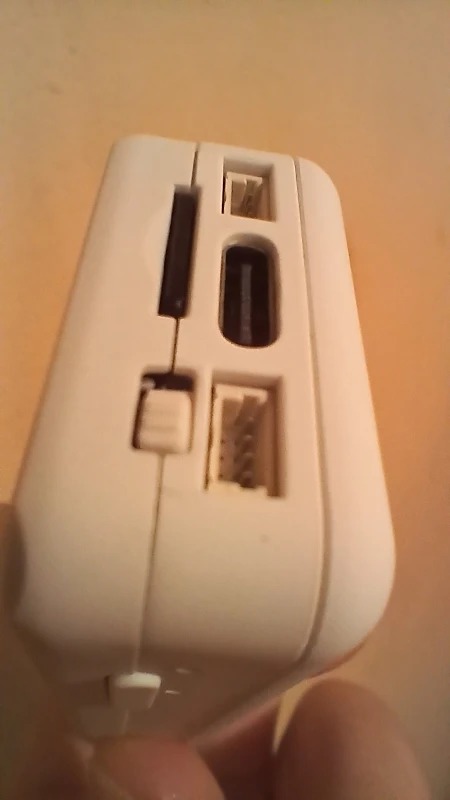

  • FULL TECHNICAL REVIEW LILYGO T-Display-S3-Pro ESP32-S3 15 | andibond.com
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
  • Reviews LILYGO T-Display-S3-Pro ESP32-S3
    • Pinout and Interface Map

    Pinout LILYGO T-Display-S3-Pro ESP32-S3

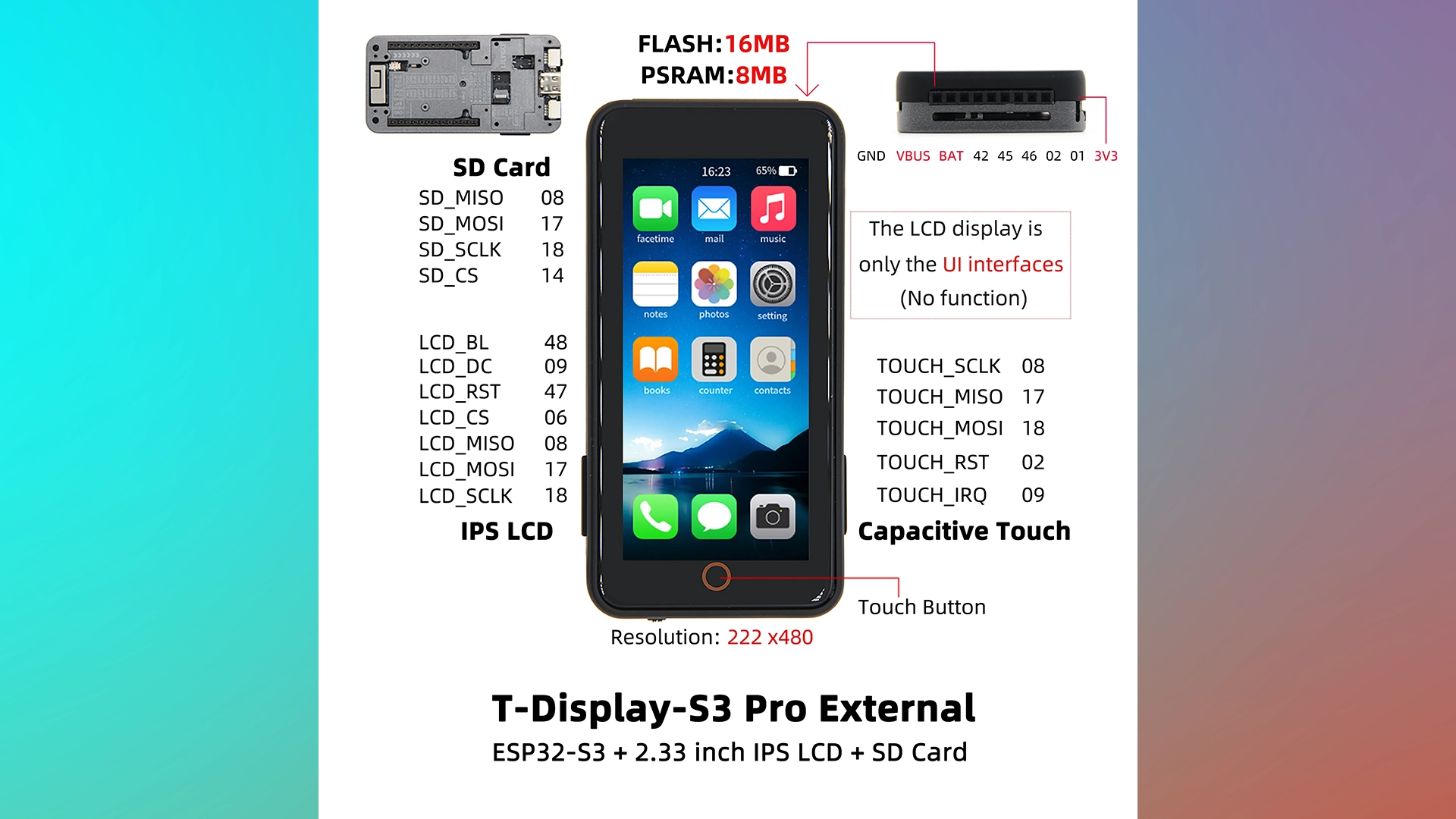

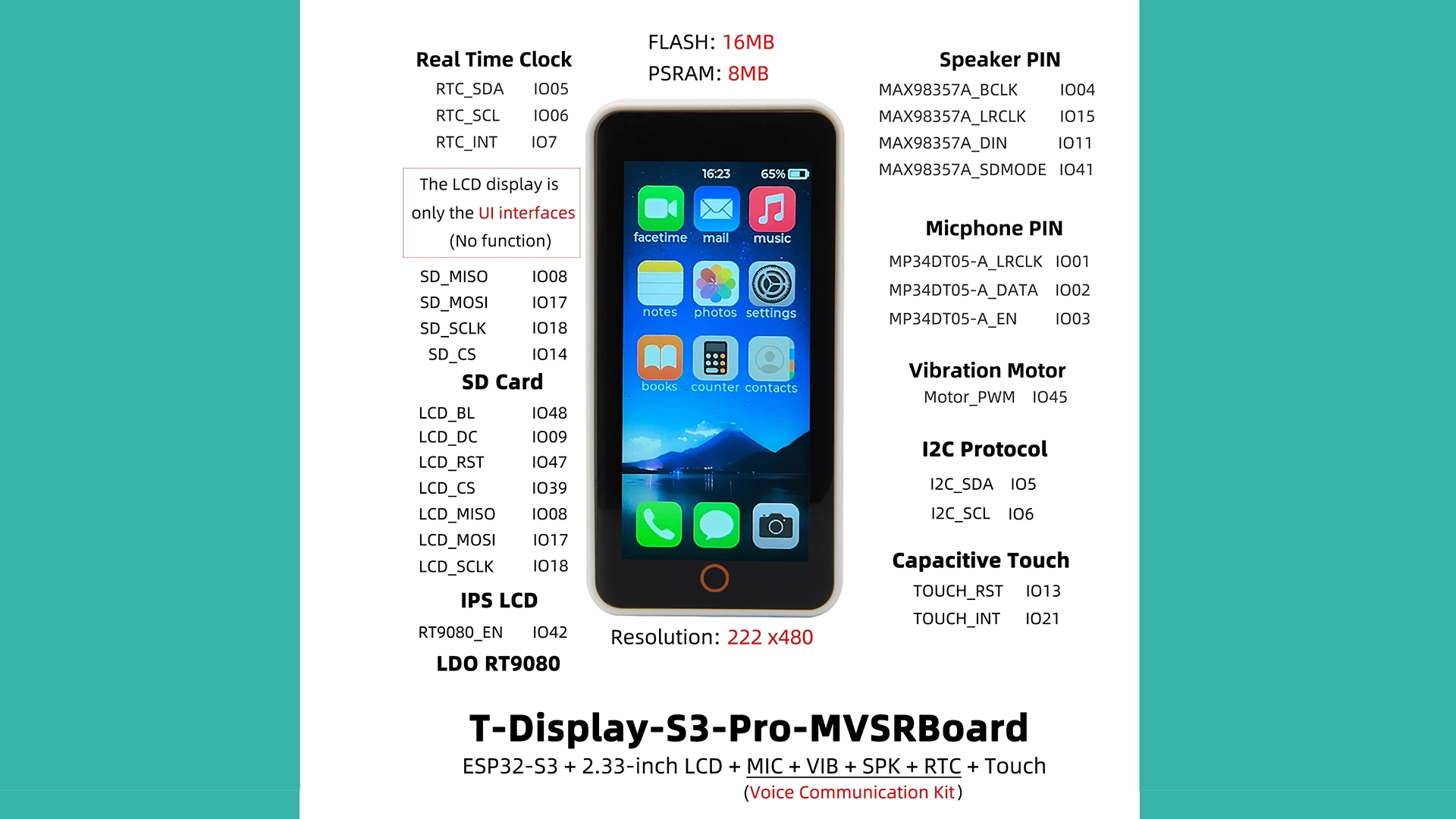

    T-Display-S3-Pro PINMAP, T-Display-S3-Pro Camera PINMAP, T-Display-S3-Pro External PINMAP, T-Display-S3-Pro-MVSBoard PINMAP

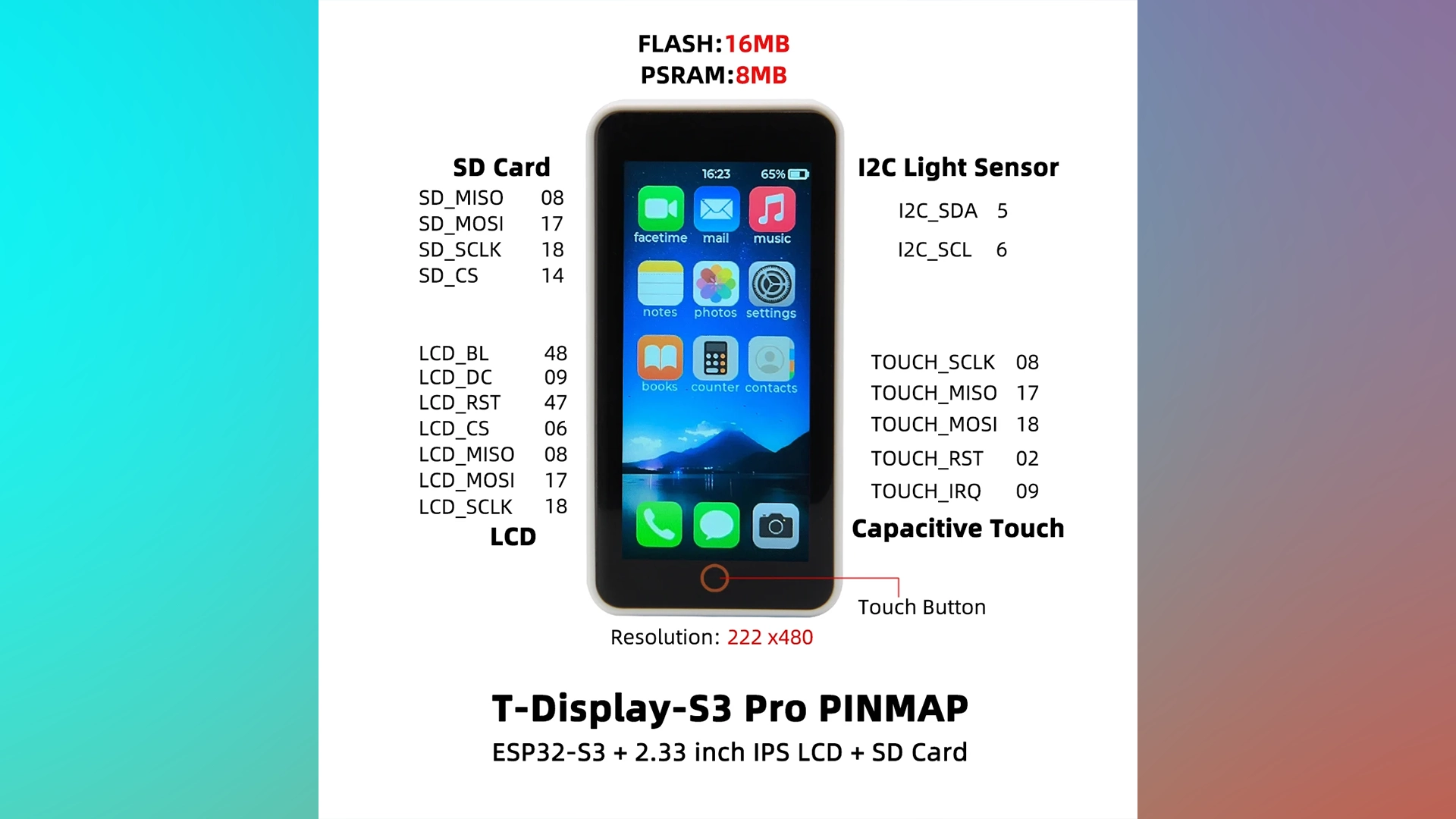

  • T-Display-S3-Pro PINMAP

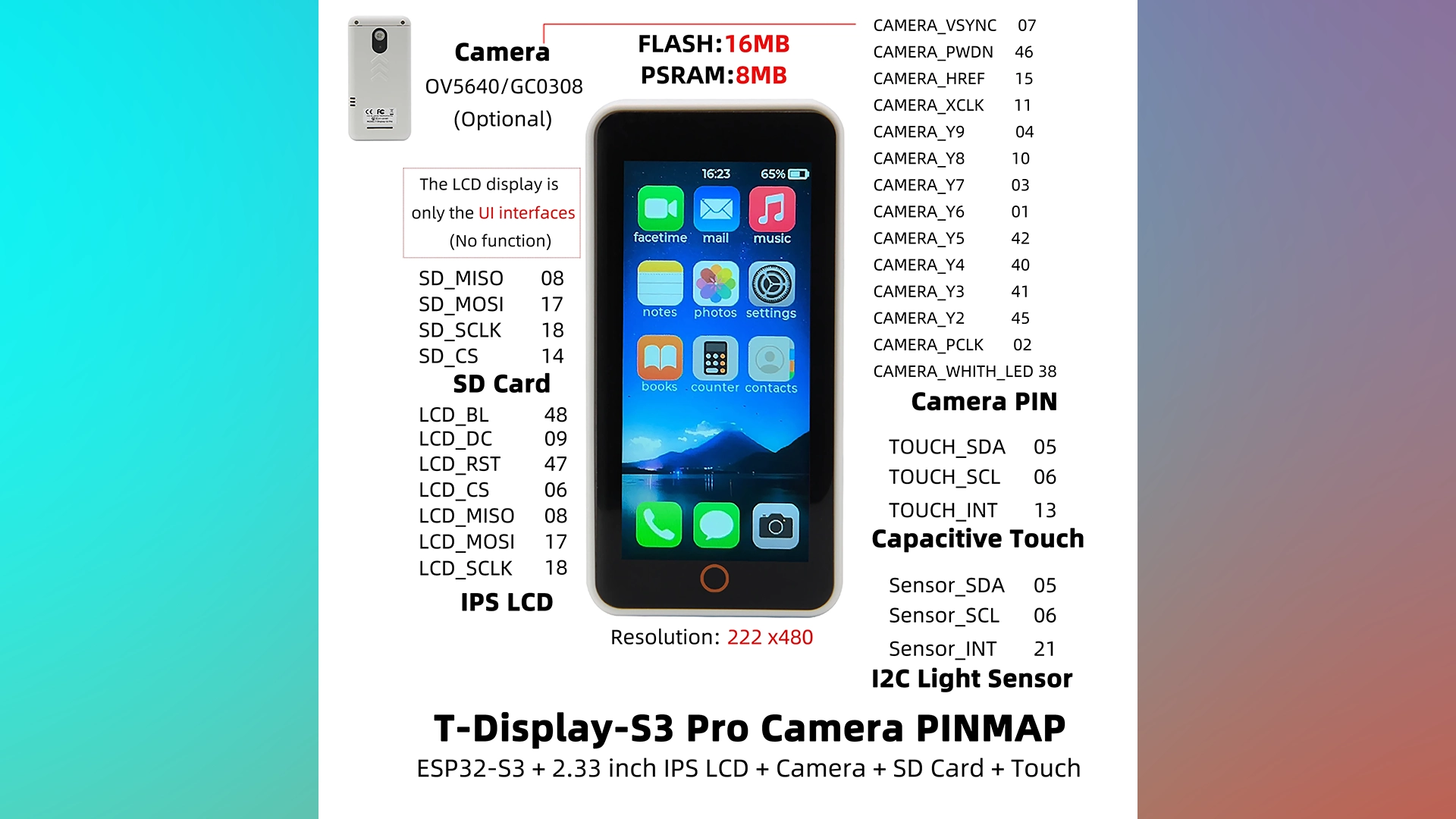

  • T-Display-S3-Pro Camera PINMAP
  • T-Display-S3-Pro External PINMAP
  • T-Display-S3-Pro-MVSBoard PINMAP
    • Final summary

    Final Verdict: LILYGO T-Display-S3-Pro ESP32-S3

    The LILYGO T-Display-S3-Pro ESP32-S3 is an exceptionally versatile and powerful development board that offers excellent value for its price, especially for those seeking a compact solution with an integrated display and extensive connectivity. It is an ideal choice for hobbyists, professional developers, and enthusiasts working on IoT projects, HMI interfaces, portable devices, or even Meshtastic nodes. Its main advantage, the combination of a robust ESP32-S3 with a large, interactive touch display and modular expandability, significantly outweighs minor drawbacks like case design quirks or specific camera module limitations. For more in-depth analyses, visit andibond.com.
