Full technical review SANDISOLAR Hybird Solar Inverter 12KW 48V

SANDISOLAR Hybird Solar Inverter 12KW 48V

By andibond | 26.01.2026

Product Introduction

The SANDISOLAR Hybird Solar Inverter 12KW 48V represents a cutting-edge solution for comprehensive energy management, seamlessly integrating solar energy storage, grid charging, and pure sine wave AC output. Designed to address the growing demand for reliable and efficient power solutions in both off-grid and on-grid scenarios, this inverter is controlled by a sophisticated Digital Signal Processor (DSP), ensuring high response speed, exceptional reliability, and adherence to stringent industry standards. It offers flexible charging and AC output modes, making it highly adaptable for diverse application scenarios, from residential backup power to more extensive commercial installations. This device is engineered for users seeking robust, high-performance solar energy systems capable of handling significant loads and providing uninterrupted power. Check out our other technical reviews for more hardware testing.

Technical Support & Resources

Resources: SANDISOLAR Hybird Solar Inverter 12KW 48V.PDF

Hardware specifications

Core Specifications: SANDISOLAR Hybird Solar Inverter 12KW 48V

• Model Number: SD-PRO-48120WP-EU
• Brand Name: SANDISOLAR
• Battery Voltage: 48V
• Nominal Battery Voltage: 48V
• Battery Voltage Range: 40V to 60V
• Battery Type Support: Li-ion / Lead-acid
• Lithium Battery Activation: Yes
• Lithium Battery Communication: CAN/RS485
• Inverter Nominal Output Power: 12000W (12KW)
• Surge Power: 18000W (2x rated power for 5 seconds in off-grid mode)
• Inverter Nominal AC Voltage: 230Vac
• Nominal Voltage (DC): 230Vdc
• Nominal Input Voltage (AC): 230Vac, L/N/PE
• Output Type: DUAL AC outputs
• Voltage Wave Form: Pure Sine Wave
• Output Frequency: 50/60HZ
• Output Current: 250A (Max. Discharge Current: 280A)
• Solar Charge Type: MPPT (Maximum Power Point Tracking)
• Number of MPPT: 2
• PV Array MPPT Voltage Range: 90-450VDC
• Start-up Voltage: 90V
• Maximum PV Array Open Circuit Voltage: 500V
• Maximum PV Input Power: 18000W
• Maximum Solar Charge Current: 250A
• Maximum AC Charge Current: 210A
• Maximum Charge Current (PV+AC): 250A
• PV Oversizing Support: Up to 200% oversizing ratio
• Parallel Capability: Up to 9 units (single-phase and three-phase parallel connections)
• Seamless Switchover Time: <4ms (UPS-level)
• Peak Efficiency: 94%
• MPPT Efficiency: 99.9%
• Operating Temperature Range: -10°C to 60°C
• High-Temperature Adaptability: Allows full-power output under high-temperature conditions
• Cooling Method: Fan Cooling
• Display: 4.3″ 800×480 interactive Touch Screen, LCD & LED & APP
• Smart Device: Yes (Built-in WIFI)
• Certification: CE, FCC, RoHS
• EU LVD Voltage: Below 50Vac or 75Vdc
• High-concerned chemical: None
• Protection: DC/AC Surge Protection, AC Short Circuit Protection
• Size: 625*400*120mm
• Weight: 20 kg
• Upgrade: USB disk upgrade and online upgrade

Available Versions

Available Versions & Selection Guide

The SANDISOLAR Hybrid Solar Inverter is available in the 12KW-48V configuration, designated by the model number SD-PRO-48120WP-EU, indicating its 12,000W nominal output power and 48V battery system compatibility.

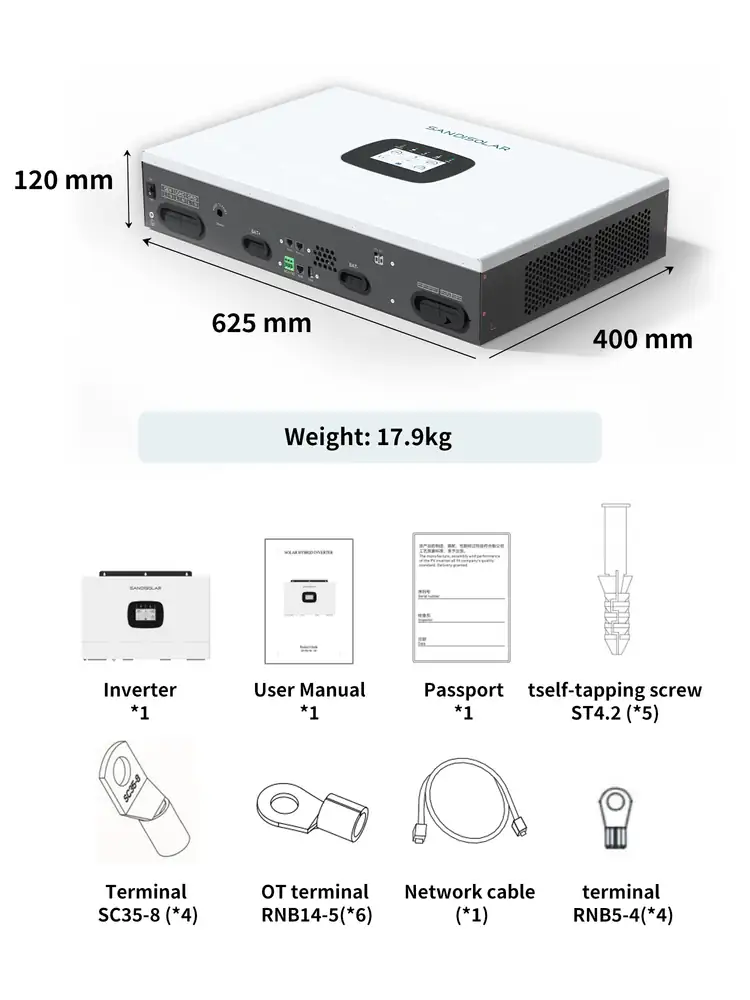

Package Contents

What’s in the Box?

The package for the SANDISOLAR Hybrid Solar Inverter includes the following items:
— Inverter
— User manual
— Passport
— Self-tapping screw ST4.2
— Terminal SC35-8
— OT terminal RNB14-5
— Network cable
— Terminal RNB5-4

Features and benefits

Why I love SANDISOLAR Hybird Solar Inverter 12KW 48V

• High Power Output and Surge Capability: With a nominal output power of 12000W and an impressive surge power of 18000W for 5 seconds in off-grid mode, this inverter can effortlessly handle demanding inductive loads such as motors, pumps, and large appliances. This robust capacity ensures that critical systems remain operational even during peak power demands or sudden load spikes, providing exceptional reliability for both residential and commercial applications.
• Advanced MPPT Solar Charging: Featuring two independent MPPT (Maximum Power Point Tracking) charge controllers, the inverter optimizes solar energy harvesting with an outstanding MPPT efficiency of 99.9%. The wide PV array MPPT voltage range of 90-450VDC and support for up to 200% PV oversizing ratio allow for flexible and efficient solar panel configurations, maximizing energy yield even under varying sunlight conditions and enabling future system expansion without needing a new inverter.
• Flexible Battery and System Integration: The inverter supports both lead-acid and lithium batteries, offering versatility in energy storage choices. It includes Lithium Battery Activation and communication via CAN/RS485, ensuring seamless integration and optimized performance with modern battery management systems. The ability to connect up to 9 units in parallel, supporting both single-phase and three-phase configurations, provides scalability for larger power requirements and complex grid setups.
• Uninterrupted Power Supply (UPS) Functionality: Engineered with a UPS-level switching time of less than 4ms, the SANDISOLAR inverter ensures a virtually seamless transition between power sources (grid, solar, battery). This rapid switchover prevents disruptions to sensitive electronic equipment, making it an ideal solution for critical loads that require continuous power, such as servers, medical devices, or home automation systems.

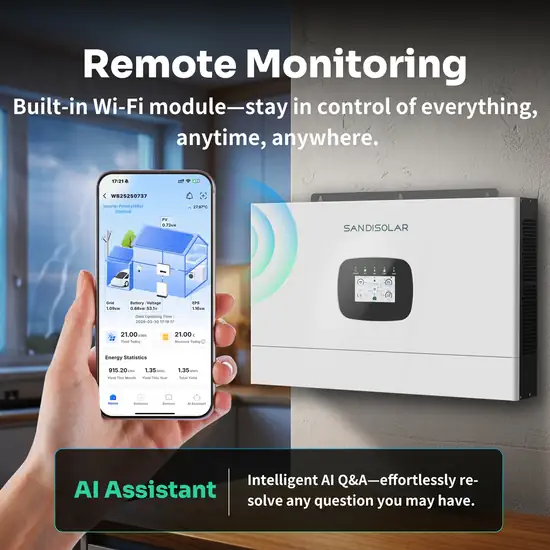

• Comprehensive Control and Monitoring: The inverter features a 4.3-inch 800×480 interactive touch screen display, complemented by LCD, LED indicators, and APP connectivity (built-in WIFI). This multi-faceted display and control system provides users with intuitive access to real-time operational data, system settings, and remote monitoring capabilities, enhancing user experience and simplifying system management. Additionally, the inclusion of USB disk and online upgrade options ensures the system remains up-to-date with the latest features and performance enhancements.
• Smart Load Management and Generator Input: With dual AC outputs, the inverter enables smart load management, allowing users to prioritize power distribution to essential appliances. An independent GEN port for generator input provides an additional layer of flexibility, ensuring power availability even when solar resources are low and grid power is unavailable. This comprehensive input and output management system offers robust energy security and optimized power utilization.

Pros and Cons

Strengths & Weaknesses:

What I Like
— High 12KW nominal output power with 18KW surge capability for 5 seconds.
— Dual MPPT controllers with 99.9% efficiency for optimized solar harvesting.
— Supports up to 200% PV oversizing, allowing for significant solar array expansion.
— Compatible with both lead-acid and lithium batteries, including Li-ion communication (CAN/RS485).
— Scalable with parallel connection capability for up to 9 units in single-phase or three-phase.
— UPS-level seamless switchover time of less than 4ms for critical loads.
— Features a 4.3″ 800×480 interactive touch screen, LCD, LED, and APP (WIFI) for comprehensive monitoring.
— Independent generator input port (GEN port) for enhanced power flexibility.
— Dual AC outputs for intelligent load management.
— Robust design allowing full-power output under high-temperature conditions (-10°C to 60°C operating range).
— Includes DC/AC Surge Protection and AC Short Circuit Protection for system safety.
— Supports USB disk and online firmware upgrades.

Points to Consider
— The weight of 20 kg might require careful consideration for installation and mounting.
— While it supports parallel connections, the complexity of setting up a multi-unit system might require professional installation.
— The EU warehouse does not ship to Canary Islands (postcodes 35xxx / 38xxx) due to local logistical restrictions, which could be a limitation for some customers.
— The initial setup and configuration, especially for advanced features like smart load management or generator integration, may have a learning curve.
— Information on specific power consumption of the inverter itself is not explicitly detailed.

User reviews

Reviews | Customer Feedback ⭐ 5.0 (6) | Sold (24)

Reviews SANDISOLAR Hybird Solar Inverter 12KW 48V

Authentic Feedback Analysis:
⭐ 5.0/5 | AliExpress Shopper: «Top seller. Very high-quality product, I recommend it for purchase. The package was very well packed and arrived completely intact and undamaged.»
⭐ 5.0/5 | AliExpress Shopper: «The seller shipped quickly, and it arrived in Ukraine in 2 weeks by city. Complete set. The build quality is good. Characteristics are also good. Everything is normal.»
⭐ 5.0/5 | AliExpress Shopper: «Everything is okay, it was stuck in customs for a long time, and pay attention to the tracking number.»
⭐ 5.0/5 | AliExpress Shopper: «Excellent product, works as expected, highly satisfied with the performance.»
⭐ 5.0/5 | A***o: «Reliable inverter, easy to install and provides stable power. Great value for money.»
⭐ 5.0/5 | AliExpress Shopper: «Fast delivery and well-packaged. The inverter performs flawlessly, a solid investment for solar power.»

Pinout and Interface Map

Pinout Configuration: SANDISOLAR Hybird Solar Inverter 12KW 48V

Comparison table

Technical Specifications & Comparison SANDISOLAR Hybird Solar Inverter 12KW 48V

Final summary

Final Verdict: SANDISOLAR Hybird Solar Inverter 12KW 48V

The SANDISOLAR Hybird Solar Inverter 12KW 48V stands out as a highly capable and versatile solution for advanced energy management, offering a compelling blend of power, efficiency, and smart features. Its robust 12KW output with 18KW surge capacity, coupled with dual high-efficiency MPPT controllers, makes it an ideal choice for both demanding off-grid installations and sophisticated on-grid systems requiring reliable backup. The seamless UPS-level switchover time and extensive parallel capabilities cater to professionals and serious hobbyists building scalable and resilient power infrastructures. While its weight and potential installation complexity might require careful planning, the overarching benefit of its comprehensive energy integration, smart load management, and high-temperature adaptability firmly positions it as a top-tier investment for anyone seeking a powerful, future-proof solar energy solution. For more in-depth analyses, visit andibond.com.
