The ESP32-C3-LCDkit stands as a definitive platform for engineers, hobbyists, and developers seeking to leverage the efficiency of the RISC-V architecture in Human-Machine Interface (HMI) applications. As the demand for compact, cost-effective, and high-performance IoT devices continues to surge, understanding the hardware foundations of this development board is paramount. The ESP32-C3-LCDkit Pinout is more than just a map of physical connections; it is the blueprint that dictates how your software interacts with the physical world, from high-speed display rendering to responsive sensor data acquisition. By mastering the ESP32-C3-LCDkit Pinout, developers can optimize their code to ensure smooth graphical output and robust peripheral communication.
At the heart of the board lies the ESP32-C3-MINI-1 module, a powerhouse that balances low power consumption with the computational intensity required for modern graphical stacks. This module, equipped with 4 MB of flash and 400 KB of SRAM, allows for sophisticated GUI development via frameworks like LVGL. However, the true utility of the kit is unlocked only when you grasp how the ESP32-C3-LCDkit Pinout bridges the microcontroller to the 1.28-inch GC9A01-driven LCD, the tactile rotary encoder, and the audio amplifier. This guide will provide a deep dive into these connections, ensuring that your hardware integration is both seamless and professional.
1. Architecture and Core Functionality
At its heart, the ESP32-C3 series leverages a single-core 32-bit RISC-V processor. Unlike its predecessors, which often relied on Xtensa architectures, this shift to RISC-V represents a significant milestone in open-standard hardware design. The architecture is optimized for low-power operation and cost-effective IoT sensing applications. The board integrates 4 MB of SPI flash within the module itself, ensuring that your application code and file systems are non-volatile and easily accessible.

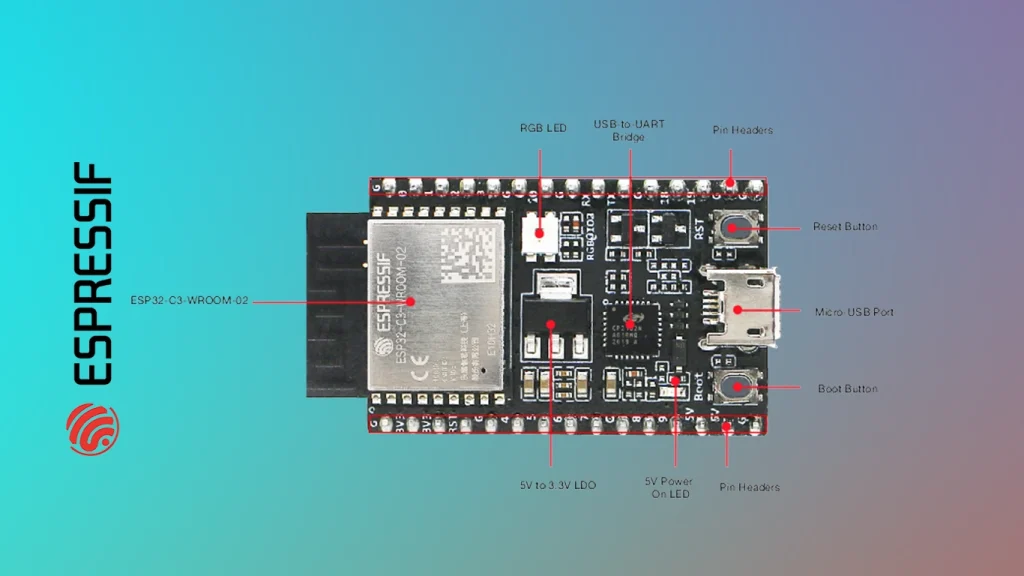

The ESP32-C3-DevKitC-02 Pinout is meticulously designed to break out the majority of the module’s GPIOs to standard 2.54mm pitch headers. This allows for direct integration into standard breadboards or custom PCB shields. The versatility of these pins is what truly drives the board’s utility; most pins are multiplexed to support multiple functions, including ADC, UART, SPI, and PWM.
2. Power Options and Thermal Management
Reliable power delivery is the foundation of any hardware project. The board provides three mutually exclusive ways to provide power to the system: the Micro-USB port (the recommended default), the 5V and GND pin headers, or the 3V3 and GND pin headers.
The Role of the LDO
The on-board Low Dropout Regulator (LDO) is a critical component for stabilizing the system. It converts the 5V input from the USB or external supply down to a clean, stable 3.3V, which the ESP32-C3 chip requires for operation. Linear regulators like this are preferred in development kits because they have minimal switching noise compared to DC-DC buck converters, ensuring that sensitive analog circuits (like the internal ADC) receive a stable voltage rail. However, linear regulators dissipate excess power as heat. If you are drawing significant current from the 3.3V rail—perhaps powering external OLED displays or high-current sensors—be mindful of thermal management. Excessive load on the LDO can lead to thermal throttling or board resets.
3. Pinout Definitions and GPIO Deep Dive
The ESP32-C3-DevKitC-02 Pinout encompasses a variety of pin types, including Power (P), Ground (G), Input (I), Output (O), and High Impedance (T). Understanding the underlying electronics of these pins is vital for sophisticated firmware development.
Analog-to-Digital Converter (ADC)
The ESP32-C3 features an internal Successive Approximation Register (SAR) ADC. The SAR architecture functions by comparing the input voltage against a reference voltage through a binary search algorithm. It uses a sample-and-hold circuit to capture the analog voltage, then executes a series of comparisons—one for each bit of resolution. The resolution, typically 12-bit, allows for 4096 distinct levels. When using the ADC pins, such as those found on GPIO4 or GPIO5, ensure the input signal impedance is low. High-impedance sources can cause significant errors due to the charge redistribution during the conversion process, potentially leading to inaccurate sensor readings.
UART and Serial Communication
The USB-to-UART bridge on the board is essential for both programming the device and serial debugging. UART (Universal Asynchronous Receiver/Transmitter) is a simple, effective protocol for point-to-point communication. It operates based on synchronized baud rates, meaning both the ESP32-C3 and your PC must agree on the speed of transmission (e.g., 115200 bps). If the baud rates do not match exactly, you will observe «garbage» data on your terminal. The bridge chip handles the translation between USB differential signals (D+/D-) and the logic-level UART (TX/RX) signals.
Strapping Pins
One of the more nuanced aspects of the ESP32-C3-DevKitC-02 Pinout is the presence of «strapping pins.» Pins like GPIO2, GPIO8, and GPIO9 are sampled by the chip at the exact moment of power-up or system reset. The logic levels (High or Low) present on these pins determine the boot behavior of the processor. For instance, the combination of logic levels determines whether the chip boots from internal flash or enters the «Firmware Download Mode.» This is why holding the «Boot» button (typically connected to GPIO9) during a reset forces the chip into a state where it waits for new firmware over the UART interface.
4. Pin Header Reference Table

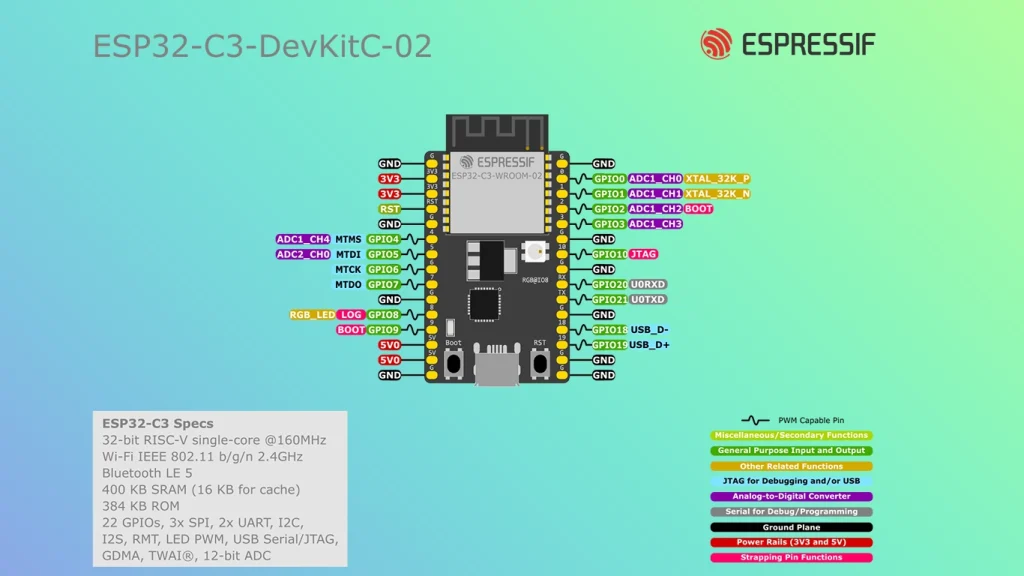

The following table details the mapping of the ESP32-C3-DevKitC-02 Pinout for the J1 and J3 headers. Please ensure you cross-reference these with your schematics before making connections.
| Pin # | Name | Type | Function |
| J1-1 | G | G | Ground |
| J1-2 | 3V3 | P | 3.3 V power supply |
| J1-3 | 3V3 | P | 3.3 V power supply |
| J1-4 | RST | I | CHIP_PU |
| J1-5 | G | G | Ground |
| J1-6 | 4 | I/O/T | GPIO4, ADC1_CH4, FSPIHD, MTMS |
| J1-7 | 5 | I/O/T | GPIO5, ADC2_CH0, FSPIWP, MTDI |
| J1-8 | 6 | I/O/T | GPIO6, FSPICLK, MTCK |
| J1-9 | 7 | I/O/T | GPIO7, FSPID, MTDO |
| J1-10 | G | G | Ground |
| J1-11 | 8 | I/O/T | GPIO8, RGB LED |
| J1-12 | 9 | I/O/T | GPIO9 |
| J1-13 | 5V | P | 5 V power supply |
| J1-14 | 5V | P | 5 V power supply |
| J1-15 | G | G | Ground |
| J3-1 | G | G | Ground |
| J3-2 | 0 | I/O/T | GPIO0, ADC1_CH0, XTAL_32K_P |
| J3-3 | 1 | I/O/T | GPIO1, ADC1_CH1, XTAL_32K_N |
| J3-4 | 2 | I/O/T | GPIO2 |
| J3-5 | 3 | I/O/T | GPIO3, ADC1_CH3 |
| J3-6 | G | G | Ground |
| J3-7 | 10 | I/O/T | GPIO10, FSPICS0 |
| J3-8 | G | G | Ground |
| J3-9 | RX | I/O/T | GPIO20, U0RXD |
| J3-10 | TX | I/O/T | GPIO21, U0TXD |
| J3-11 | G | G | Ground |
| J3-12 | 18 | I/O/T | GPIO18, USB_D- |
| J3-13 | 19 | I/O/T | GPIO19, USB_D+ |
| J3-14 | G | G | Ground |
| J3-15 | G | G | Ground |
5. Programming and Firmware Download Mode
Understanding how to interact with the device’s firmware download mode is essential. When you need to flash new code, you initiate «Firmware Download Mode.» This is done by holding the «Boot» button (GPIO9) down while simultaneously pressing and releasing the «Reset» button. This sequence ensures that the strapping pin GPIO9 is pulled to a logic low state during the reset cycle. Upon detecting this, the internal ROM bootloader pauses normal execution and waits for data packets over the UART interface, allowing your flash utility to write the new binary to the flash memory.

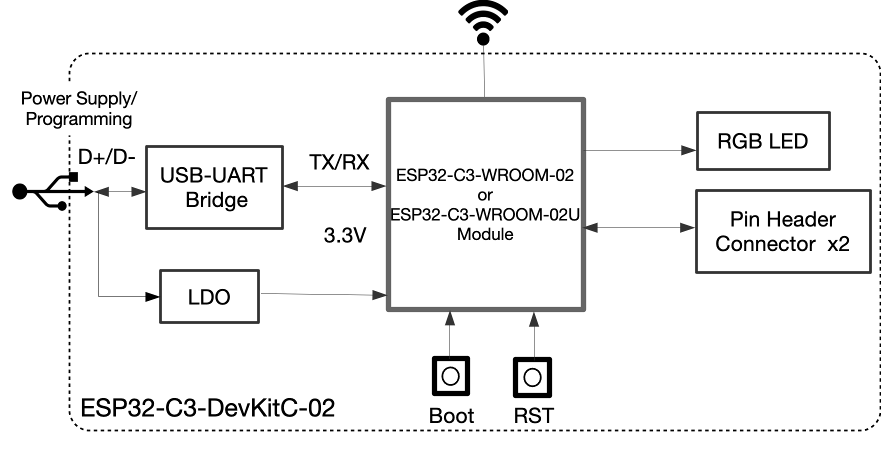

The block diagram above illustrates the interaction between the power supply, the USB-to-UART bridge, and the main module. Keeping this flow in mind—specifically how the D+/D- signals route through the bridge to the UART TX/RX pins—will help you troubleshoot connection issues effectively. Whether you are debugging signal integrity on the USB lines or probing the GPIOs with a logic analyzer, understanding the board’s internal signal path is the mark of an expert developer.
7. References & Legal Notice
This technical manual is developed based on the official documentation provided by Espressif Systems. We highly recommend referring to the primary source for the most recent updates regarding hardware revisions and detailed specifications.
Disclaimer: ESP32 and ESP32-S2 are registered trademarks of Espressif Systems (Shanghai) Co., Ltd. This guide is an independent technical review and is not an official publication of Espressif Systems.
