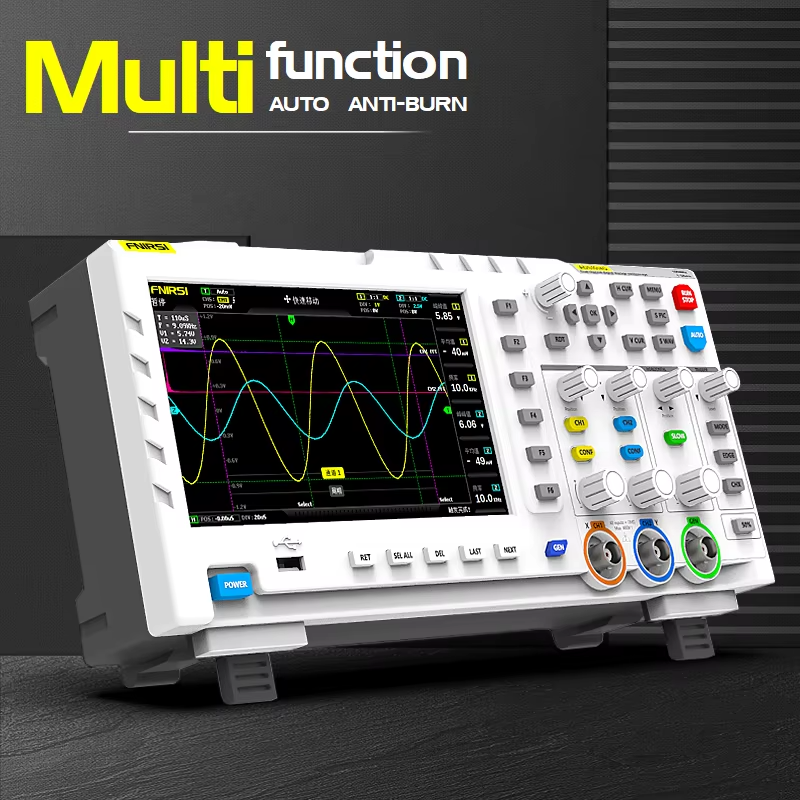

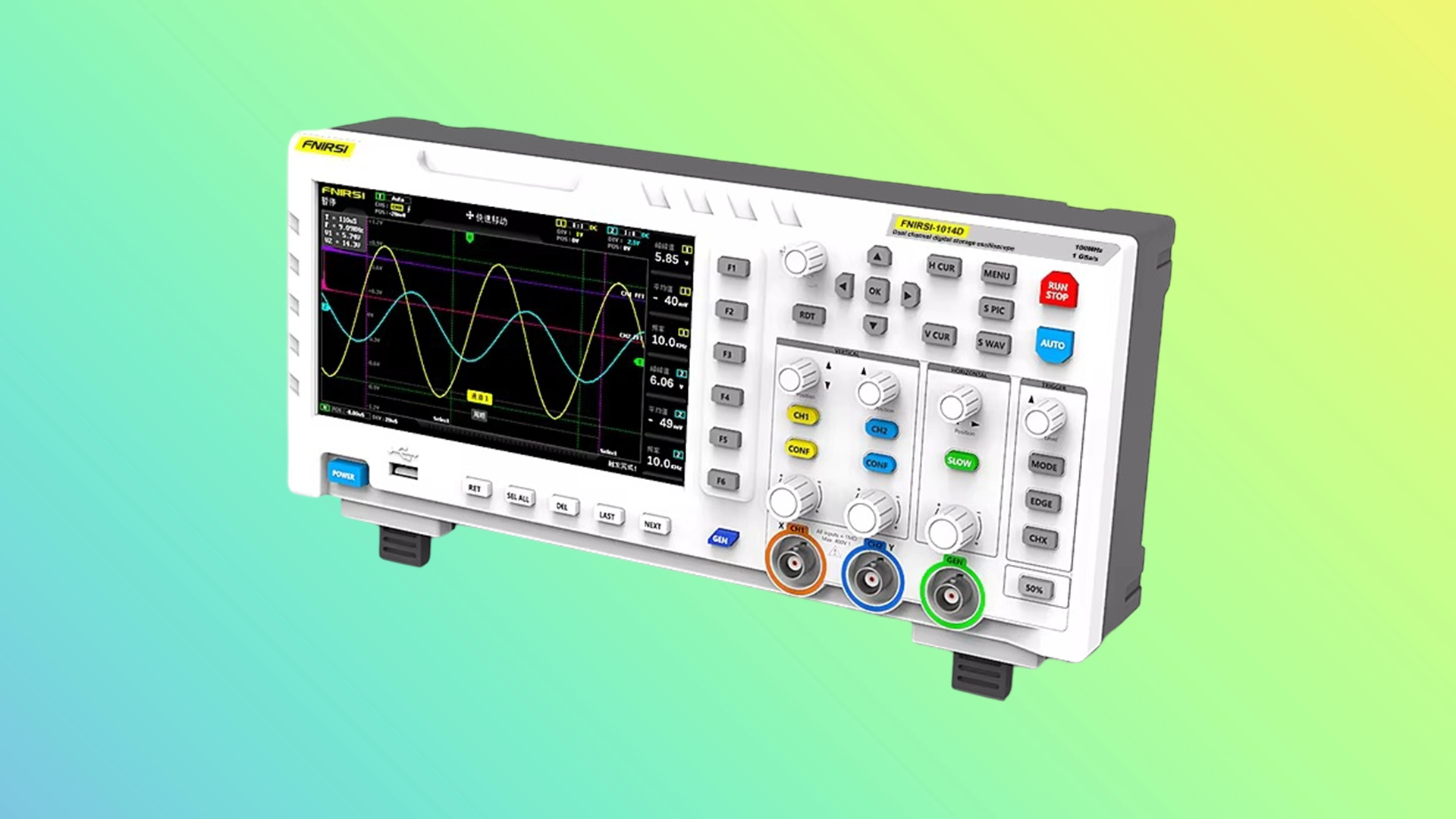

Full technical review FNIRSI-1014D | Specs, Features & Feedback

Product Introduction

The FNIRSI-1014D emerges as a highly versatile and cost-effective two-in-one solution, combining the functionalities of a dual-channel digital oscilloscope and a DDS function signal generator. Designed to address the demanding needs of both the maintenance and research & development industries, this device stands out by offering professional-grade features typically found in more expensive desktop oscilloscopes, but at a significantly more accessible price point. Its unique blend of high-performance specifications, such as a 100MHz analog bandwidth and 1GSa/s real-time sampling rate, coupled with innovative features like intelligent anti-burn protection and a robust waveform capture output, positions it as an indispensable tool for engineers, technicians, and hobbyists alike. The FNIRSI-1014D is engineered to simplify complex signal analysis and generation tasks, making it an ideal choice for debugging oscillating, op-amp, inverter, PWM driver, and various digital and bus circuits. Check out our other technical reviews for more hardware testing.

Hardware specifications

Core Specifications: FNIRSI-1014D

Model: FNIRSI-1014D
Channels: 2
LCD size: 7 Inch
LCD Resolution: 800 * 480 Pixels
Display technology: LCD
Bandwidth: 100MHz (100MHz * 2 analog bandwidth)
Sampling Rate: 1GSa/s (Real Time Sampling Rate)
Voltage accuracy: ± 5%
Highest test voltage: 1X : 40V, 10X : 400V
Cursor: Position XY Trigger Y
Roll mode: Support
One-button AUTO: Support
Waveform storage: 1000 pictures + 1000 waveforms
Waveform manager: Support
Battery Included: Yes
IS Battery Demountable: No
Max Waveform Capture Rate: 50,000wfm/s
Record Length: 30KB
Certification: CE
Origin: Mainland China
DIY Supplies: Electrical
Display Size: 7 Inches & Above
Size: 340mm x 140mm x 70mm
Extension ports: USB picture export
Trigger edge: Rising edge/Falling edge
Trigger mode: Single, Normal, Auto
Coupling mode: AC/DC
ADC precision: 8bits
Input resistance: 1MΩ
Storage depth: 240Kbit
Horizontal time base range: 50S/div ~ 10nS/div
Vertical sensitivity: 50 mV/div ~ 500 V/div
External trigger voltage: 0~40 V
Material: ABS
Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in
Package weight: 1500g / 3.3lb

Available Versions

Available Versions & Selection Guide

Standard, Add P4100 Probe

FULL TECHNICAL REVIEW FNIRSI-1014D Dual Channel Desktop Digital Oscilloscope 100MHz* 2 Analog Bandwidth 1GSa/s Sampling Rate 10Mhz Signal Generator 7 | andibond.com

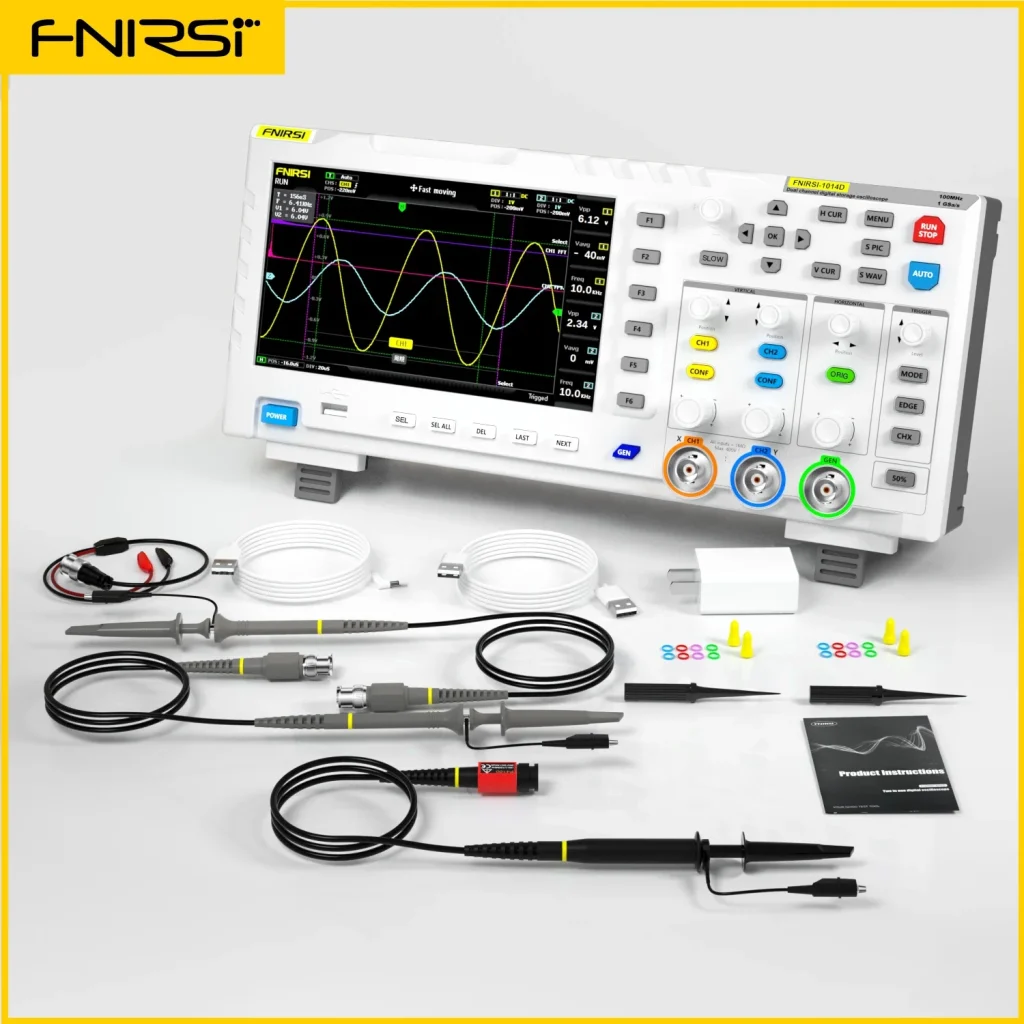

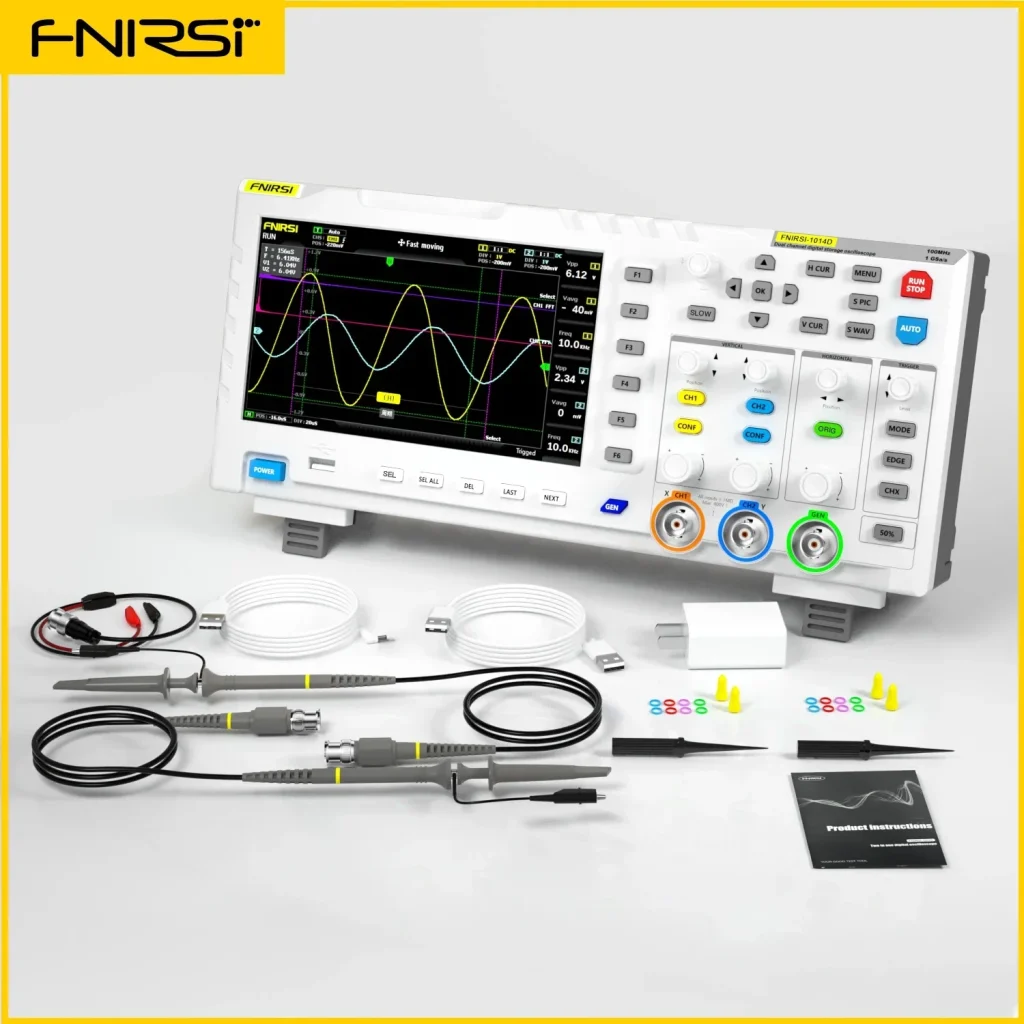

Package Contents

What’s in the Box?

1 * FNIRSI-1014D Oscillograph Host
2 * Matching 100MHz Probe (1X and 10X）
1 * Clip
1 * 5V2A Power Adapter
1 * USB Data Line
1 * English User Manual

Features and benefits

Why I love FNIRSI-1014D

Integrated DDS Function Signal Generator: This device boasts a built-in DDS signal generator supporting 14 standard function signals, including sine, square, triangle, sawtooth, and more, all with a precise 1Hz frequency step. The sine wave can reach frequencies up to 10MHz, while other standard signals extend to 2MHz, and the cut-off frequency also reaches 2MHz. This capability allows users to generate a wide array of test signals for various applications, from basic circuit testing to complex system diagnostics, offering unparalleled flexibility compared to devices with limited signal generation options.
Industry-Original Capture Output Function: A standout feature is the «Capture output» function, which allows users to intercept part or the entirety of complex signals measured by the oscilloscope and use them as the output signal for the signal generator. This unique capability can store up to 1000 customized signals, providing a significant advantage over traditional arbitrary signal generators that often suffer from subjective manual signal description and characteristic distortion. With a frequency adjustable from 1Hz to 1MHz (@ 2.4Vpp) and a resolution of 1Hz, this function is invaluable for replicating real-world signals for testing and analysis, a feature currently absent in most professional oscilloscopes or signal generators.
Intelligent Anti-Burning Protection and Robust Encoder Algorithm: The FNIRSI-1014D incorporates an intelligent anti-burning module on its two input channels, capable of tolerating up to 400V continuous voltage input. This eliminates the common concern of accidental oscilloscope damage when probes are not correctly set to the 10X position for high-voltage measurements. Furthermore, it features a targeted high-intelligence decoding algorithm designed to overcome the common issue of encoder (knob) wear and oxidation found in many desktop oscilloscopes, ensuring infinite encoder life and reliable operation even if the physical encoder degrades, thus extending the device’s lifespan and usability.
Dual-Channel Input with High Performance: Equipped with two input channels, each featuring a 1MΩ input impedance, the FNIRSI-1014D enables simultaneous measurement of two distinct signals. This dual-channel capability is crucial for comparative analysis, such as evaluating the input and output signals of an amplifier to determine its amplification factor, distortion, or output internal resistance, or testing complementary PWM signals in switching power supplies. This significantly broadens its application scope compared to single-channel devices, providing deeper insights into circuit behavior.
Efficient One-Button Automatic Adjustment and Comprehensive Triggering: The device simplifies operation with its «One-button AUTO» function, which automatically identifies signal characteristics and adaptively sets trigger levels (25%, 50%, 75%) within approximately 2 seconds for a 1V peak-to-peak signal, ensuring the waveform appears centered on the screen without tedious manual adjustments. Complementing this is a complete triggering function offering Single, Normal, and Auto modes, allowing users to effectively capture both periodic analog signals (Auto mode), aperiodic digital logic signals (Normal mode), and sudden aperiodic burst signals (Single mode), making it highly adaptable to a wide range of measurement scenarios.
Advanced Display, Measurement, and Storage Capabilities: The FNIRSI-1014D features a fully fitted 7-inch 800×480 resolution color TFT LCD display, offering bright colors and high contrast for clear waveform visualization. It supports up to 12 parameter measurements (VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period) and includes a cursor measurement function for convenient manual reading of period, frequency, and voltage. With a built-in 1GB storage space, it can store up to 1000 screenshots and 1000 sets of waveform data, managed by a powerful image manager that supports thumbnail browsing, zooming, and moving, facilitating secondary analysis and documentation. The USB interface further allows easy sharing of screenshots with a computer.
Lissajous Figures and FFT Display: For advanced signal analysis, the oscilloscope includes Lissajous figures graphic display functionality, which is essential for comparing and judging the amplitude, frequency, and phase contrast of two groups of signals. Additionally, the FFT (Fast Fourier Transform) display function allows users to analyze the spectral characteristics of signals, providing insights into harmonic components and frequency content. These features, combined with memory compression technology for flicker-free waveform refresh and adjustable screen/grid brightness, enhance the analytical power and user experience of the FNIRSI-1014D.

Pros and Cons

Strengths & Weaknesses:

What I Like

Integrated DDS function signal generator with 14 standard signals and 1Hz frequency step, sine wave up to 10MHz.
Unique «Capture output» function for intercepting and re-outputting complex signals, storing up to 1000 customized waveforms.
Intelligent anti-burning protection module tolerates up to 400V continuous voltage input, enhancing safety.
Targeted high-intelligence decoding algorithm ensures infinite encoder life, solving common hardware wear issues.
Dual-channel input with 1MΩ impedance allows for comprehensive comparative signal analysis.
Efficient «One-button AUTO» adjustment for quick and accurate waveform display, typically within 2 seconds.
Complete trigger functions (Single, Normal, Auto) for versatile signal capture.
High 100MHz analog bandwidth and 1GSa/s real-time sampling rate for detailed signal acquisition.
Large 7-inch 800×480 color TFT LCD display provides clear and high-contrast waveform visualization.
Extensive measurement capabilities with 12 parameters and cursor measurement function.
Built-in 1GB storage for 1000 screenshots and 1000 waveform data sets, with a powerful image manager.
FFT and Lissajous figures display functions for advanced spectral and phase analysis.

Points to Consider

Battery is included but not demountable, which might limit long-term serviceability or replacement options.
While powerful, the «Capture output» frequency range is limited to 1MHz, which might not cover all high-frequency custom signal generation needs.
The device is described as a «desktop» oscilloscope, but its compact size (340x140x70mm) and battery inclusion suggest it’s more portable, which could be a pro or con depending on user expectation.
Voltage accuracy is ±5%, which might be acceptable for general DIY and maintenance but could be a limitation for highly precise scientific or industrial applications.
The storage depth of 240Kbit (or 30KB record length) might be considered moderate for capturing very long, high-resolution waveforms compared to higher-end professional oscilloscopes.

Price and Availability

Where to Buy & Customer Reviews

Check Price on AliExpress (Best Value)

AliExpress

Find on eBay (New & Used)

ebay

As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

Store info

STORE

⭐ 98.6% Positive Feedback | 123.0K Followers

Name:	FNIRSI Official Store
Store no.:	2939001
Location:	China
Open since:	Feb 26, 2017

Detailed seller ratings

Item as Described	4.9 Above Average
Communication	4.9 Above Average
Shipping Speed	4.9 Above Average

OTHER GOODS

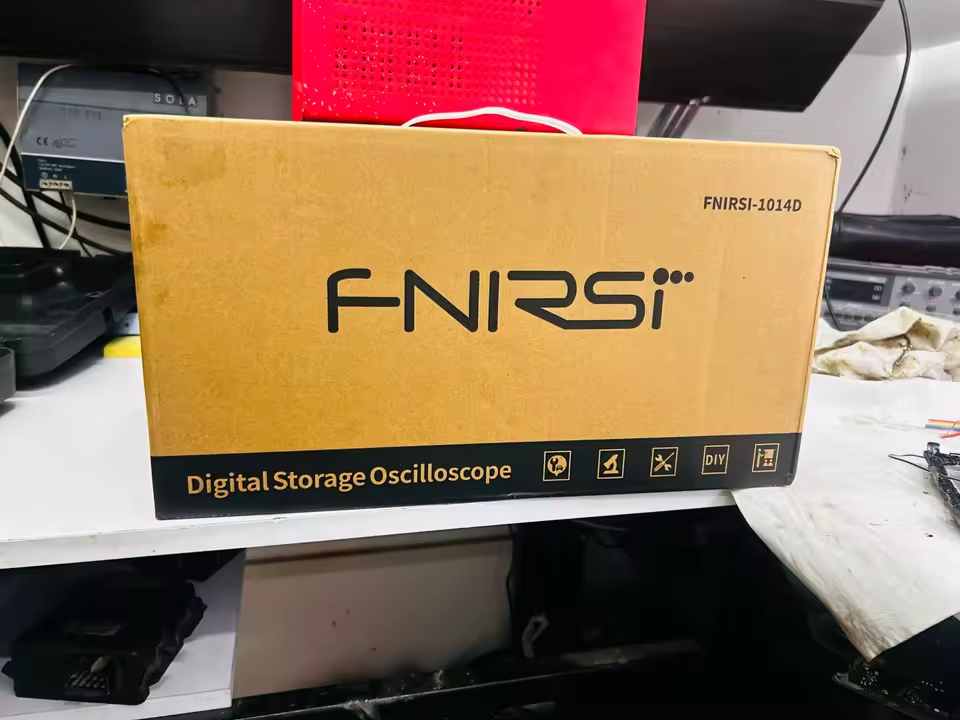

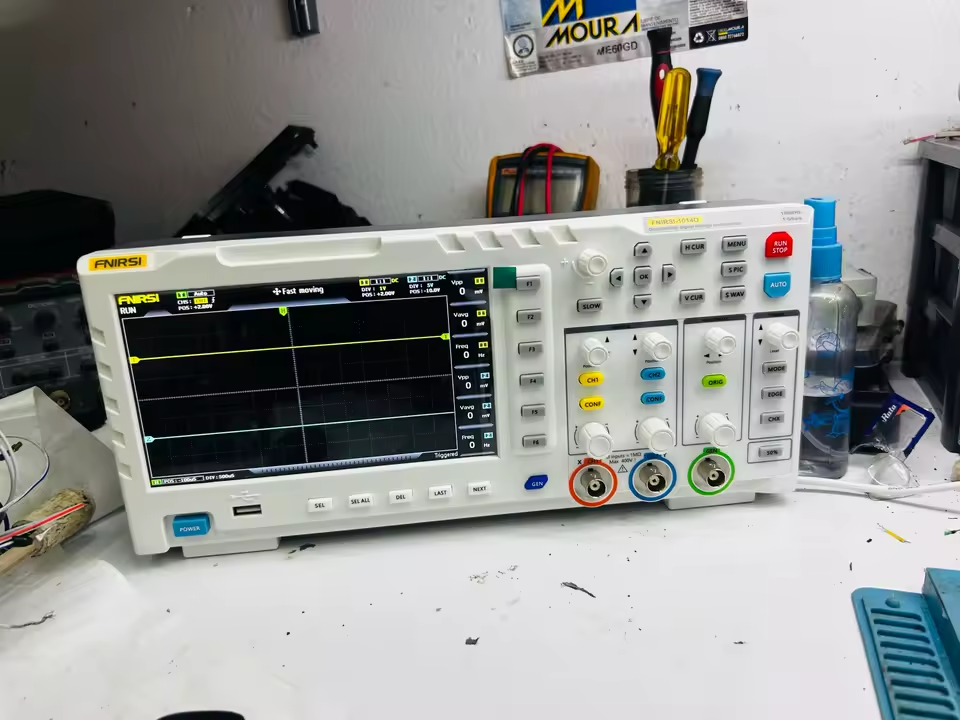

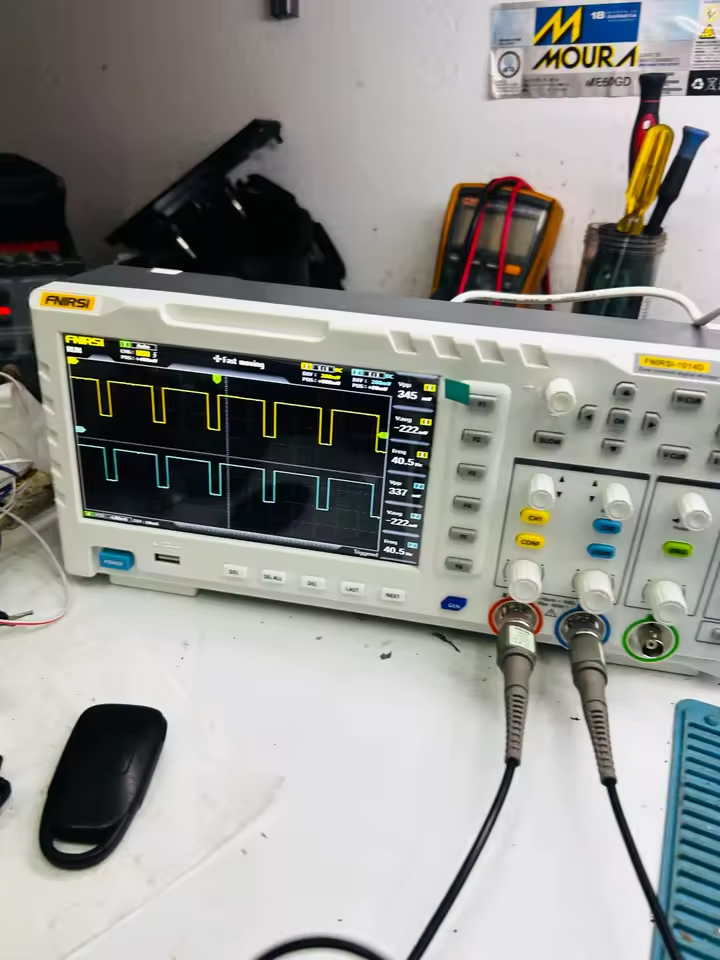

User reviews

User Reviews & Feedback Analysis ⭐ 4.8 (25) | Sold (6)

Reviews FNIRSI-1014D

5 Stars 4.8

Authentic Feedback Analysis:

Authentic Feedback Analysis:
⭐ 5.0/5 | P***y: instrumento bem embalado, novo e melhor custo benefício. uma ótima compra.
⭐ 5.0/5 | w***z:
⭐ 5.0/5 | E***v: Осциллограф работает прекрасно!
⭐ 5.0/5 | S***n: ishlatsa bo’ladi
⭐ 5.0/5 | L***k: Perfect !!!
⭐ 5.0/5 | AliExpress Shopper:
⭐ 5.0/5 | I***v:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | E***v:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | s***-:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | P***E:
⭐ 5.0/5 | AliExpress Shopper:
⭐ 5.0/5 | AliExpress Shopper:
⭐ 1.0/5 | T***l:

Pinout and Interface Map

PRODUCT PARAMETER FNIRSI-1014D

FNIRSI-1014D

Comparison table

Technical Specifications & Comparison FNIRSI-1014D

Parameter	FNIRSI-1014D	Details
Model	FNIRSI-1014D
Channels	2	Dual channel input for simultaneous measurement.
Bandwidth	100MHz	100MHz * 2 analog bandwidth.
Sampling Rate	1GSa/s	Real Time Sampling Rate.
Highest test voltage	1X : 40V, 10X : 400V	Intelligent anti-burning protection.
LCD size	7 Inch
LCD Resolution	800 * 480	High-definition color TFT LCD.
Display technology	LCD
Voltage accuracy	± 5%
Cursor	Position XY Trigger Y	For manual measurement of amplitude and frequency.
Roll mode	Support	For monitoring slow level changes.
One-button AUTO	Support	Efficient automatic adjustment in ~2 seconds.
Waveform storage	1000 pictures + 1000 waveforms	Built-in 1GB storage space.
Waveform manager	Support	Thumbnail browsing, view, zoom, move.
Max Waveform Capture Rate	50,000wfm/s
Record Length	30KB
Storage depth	240Kbit
Input resistance	1MΩ
ADC precision	8bits
Coupling mode	AC/DC
Trigger mode	Single, Normal, Auto	Complete triggering function.
Trigger edge	Rising edge/Falling edge
External trigger voltage	0~40 V
Horizontal time base range	50S/div ~ 10nS/div
Vertical sensitivity	50 mV/div ~ 500 V/div
DDS Signal Generator	14 standard signals	Sine up to 10MHz, others 2MHz, 1Hz step.
Capture Output Function	Support	Intercepts complex signals, stores 1000 customized.
Intelligent Decoding Algorithm	Support	Infinite encoder life.
FFT Display	Support	Analyzes spectral characteristics.
Lissajous Figures	Support	Compares amplitude, frequency, phase.
Extension ports	USB picture export	For sharing screenshots with computer.
Battery Included	Yes
IS Battery Demountable	No
Certification	CE
Size	340mm x 140mm x 70mm
Weight	1500g / 3.3lb

Final summary

Final Verdict: FNIRSI-1014D

The FNIRSI-1014D stands as an exceptional value proposition in the realm of test and measurement equipment, perfectly bridging the gap between hobbyist tools and professional-grade instruments. Its dual functionality as a 100MHz dual-channel oscilloscope and a 10MHz DDS signal generator, combined with a 1GSa/s sampling rate, makes it an ideal choice for a broad spectrum of users, from electronics enthusiasts and students to seasoned technicians in maintenance and R&D. The intelligent anti-burning protection and the innovative «Capture output» function are significant advantages that enhance both safety and utility, setting it apart from competitors. While the non-demountable battery and moderate storage depth are minor considerations, the FNIRSI-1014D’s robust feature set, including its intelligent encoder algorithm and comprehensive analysis tools like FFT and Lissajous figures, far outweighs these points. For anyone seeking a powerful, reliable, and feature-rich oscilloscope-signal generator combo that offers incredible bang for the buck, the FNIRSI-1014D is an outstanding investment that will undoubtedly elevate their diagnostic and development capabilities. For more in-depth analyses, visit andibond.com.
