Full technical review FNIRSI TSG6020 TSG3020

Product Introduction

The FNIRSI TSG6020 and TSG3020 represent a new generation of dual-channel function signal generators designed to meet the demanding needs of electronics enthusiasts, students, and professionals. These devices solve the critical problem of needing precise, versatile, and portable signal generation for debugging, testing, and developing electronic circuits. Their unique combination of a high sampling rate, extensive waveform capabilities, and a user-friendly touchscreen interface makes them stand out in the market, ideal for a wide array of projects from basic circuit analysis to complex communication system development and electronics repair. Check out our other technical reviews for more hardware testing.

Hardware specifications

Core Specifications: FNIRSI TSG6020 TSG3020

Brand Name: FNIRSI
Model Numbers: TSG6020 / TSG3020
Channels: 2
Sampling Rate: 200 MSa/s
Vertical Resolution: 14 bits
Display: 4.3-inch TFT capacitive touchscreen (480×272 pixels)
Power Supply: DC 5V2A (Type-C interface)
Interface: USB Device
Output Impedance: 50Ω Typical
Max Output Frequency: 30MHz (TSG3020) / 60MHz (TSG6020)
Max Output Amplitude: 20Vpp
Waveforms: Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary Waveforms
Modulation Types: AM, FM, PM, FSK, ASK, PSK
Sweep Modes: Linear Sweep, Logarithmic Sweep
Built-in Frequency Counter: 7-Digit (100 mHz – 100 MHz range)
Certification: CE
Origin: Mainland China

Available Versions

Available Versions & Selection Guide

The FNIRSI Function Signal Generator is available in two primary models: the TSG3020, offering a maximum output frequency of 30MHz, and the TSG6020, which extends the maximum output frequency to 60MHz. Both models are offered with various plug types, including EU and US, to accommodate different regional power standards.

Package Contents

What’s in the Box?

Each FNIRSI TSG3020 or TSG6020 package includes the respective Signal Generator unit, a Charging Adapter, a Type-C Charging Cable for power and data transfer, a dedicated Data Cable, Test Lead Cables, a set of Alligator Clips for versatile connections, and a comprehensive User Guide to assist with setup and operation.

Features and benefits

Why I love FNIRSI 2D15P 3-in-1

Dual-Channel Output and High Sampling Rate: The FNIRSI TSG6020/TSG3020 boasts a dual-channel output with an impressive sampling rate of 200 MSa/s and a 14-bit vertical resolution. This ensures the generation of highly accurate and detailed waveforms, crucial for precise testing and analysis in complex electronic systems. The dual-channel capability allows for simultaneous generation of two independent signals, significantly enhancing efficiency in applications requiring multiple signal inputs or comparative analysis.
Extensive Waveform Generation and Frequency Range: These generators support a wide array of waveforms including Sine, Square, Ramp, Pulse, Noise, DC, and Arbitrary Waveforms. The TSG6020 offers a maximum output frequency of 60 MHz, while the TSG3020 reaches 30 MHz, with sine wave frequencies extending from 1 μHz up to 60 MHz (TSG6020) or 30 MHz (TSG3020). This broad frequency range and waveform variety make the devices suitable for diverse applications, from low-frequency sensor simulations to high-frequency RF testing.
Advanced Modulation and Sweep Functions: Equipped with six modulation types—AM, FM, PM, FSK, ASK, and PSK—the TSG series provides comprehensive signal manipulation capabilities. Users can define carrier and modulating waves from a selection of standard and arbitrary forms, with modulation frequencies up to 200 kHz for AM and PM, and 1 μHz – 200 kHz for FM. Additionally, the linear and logarithmic sweep modes, with sweep times from 1 ms to 500 s ± 0.1%, enable automated frequency response testing, simplifying characterization of filters, amplifiers, and other frequency-dependent circuits.
Integrated 7-Digit Frequency Counter and Precise Output Control: A built-in 7-digit frequency counter with a range of 100 mHz to 100 MHz and an accuracy of ±51 ppm allows for precise measurement of external signals, adding significant value as a standalone test instrument. The output characteristics are equally robust, offering an amplitude range of 1 mVpp to 10 Vpp (for ≤10 MHz, 50 Ω) or 1 mVpp to 5 Vpp (for ≤60 MHz, 50 Ω), with an accuracy of ±(5% of setting + 2 mVpp) for a 1 kHz sine wave. This level of precision ensures reliable and repeatable test results.
User-Friendly Interface and Robust Design: The 4.3-inch TFT capacitive touchscreen, combined with physical buttons, offers an intuitive and flexible control experience. The screen’s 90° adjustable angle enhances usability in various work environments. Power is supplied via a convenient Type-C 5V/2A interface, making it compatible with common power adapters and portable power banks. Furthermore, the device features channel protection and a typical output impedance of 50 Ω, ensuring durability and compatibility with standard test equipment.

Pros and Cons

Strengths & Weaknesses:

What I Like

Dual-channel output for simultaneous signal generation.
High sampling rate of 200 MSa/s and 14-bit vertical resolution for precise waveforms.
Wide range of standard and arbitrary waveforms (Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary).
Comprehensive modulation capabilities (AM, FM, PM, FSK, ASK, PSK).
Built-in 7-digit frequency counter with 100 MHz range and good accuracy (±51 ppm).
Intuitive 4.3-inch TFT capacitive touchscreen with 90° adjustable angle.
Type-C 5V/2A power input for modern compatibility and portability.
Robust output characteristics including channel protection and 50 Ω impedance.

Points to Consider

Battery not included, limiting standalone portability without an external power source.
Max output amplitude decreases at higher frequencies (10 Vpp up to 10 MHz, 5 Vpp up to 60 MHz).
Frequency deviation values for FM modulation are not explicitly provided for the TSG series.
Information on software/firmware updates or advanced programming interfaces (beyond USB Device) is not explicitly detailed.
No explicit mention of internal storage capacity for arbitrary waveforms beyond «24 Waveforms».

Price and Availability

Where to Buy & Customer Reviews

Check Price on AliExpress (Best Value)

AliExpress

Find on eBay (New & Used)

ebay

As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

Store info

STORE

⭐ 98.6% Positive Feedback | 123.0K Followers

Name:	FNIRSI Official Store
Store no.:	2939001
Location:	China
Open since:	Feb 26, 2017

Detailed seller ratings

Item as Described	4.9 Above Average
Communication	4.9 Above Average
Shipping Speed	4.9 Above Average

OTHER GOODS

Pinout and Interface Map

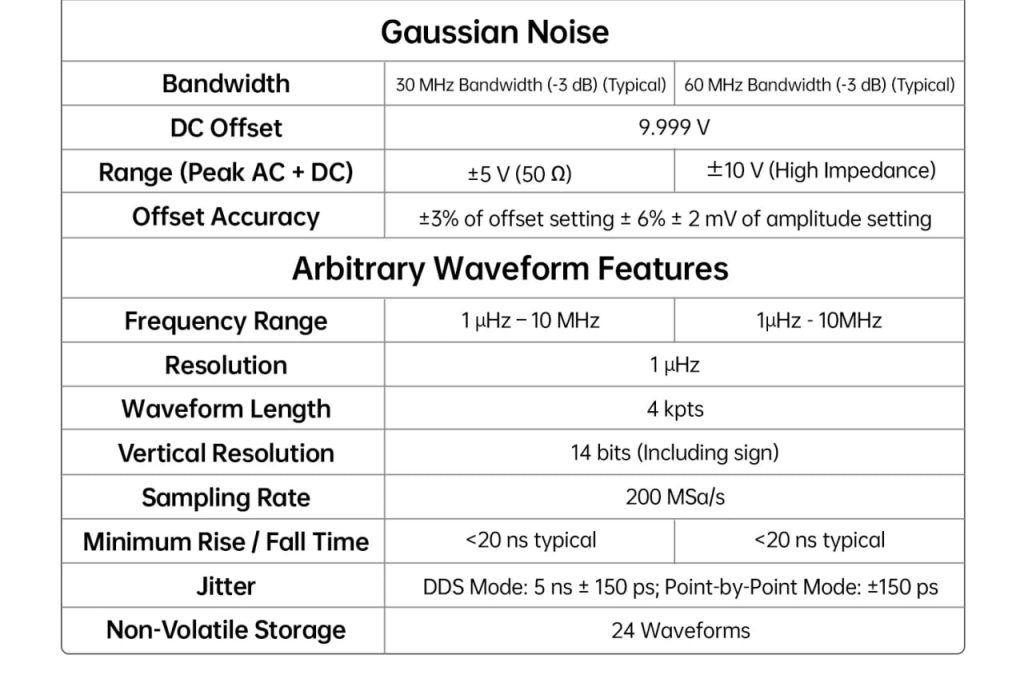

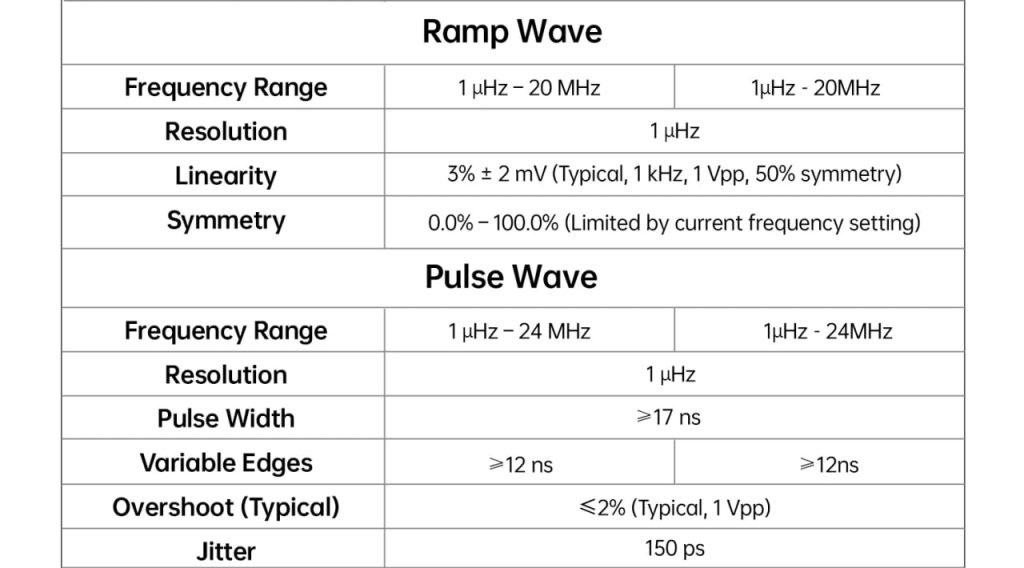

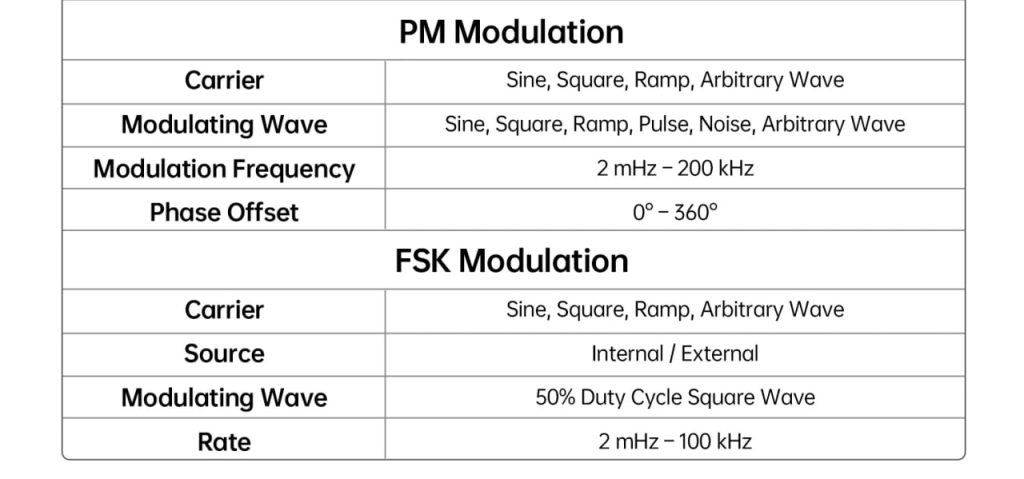

PRODUCT PARAMETER FNIRSI TSG6020 TSG3020

FNIRSI TSG6020 TSG3020

Comparison table

Technical Specifications & Comparison FNIRSI TSG6020 TSG3020

Feature	TSG3020	TSG6020
Max Output Frequency	30 MHz	60 MHz
Sine Wave Frequency Range	1 μHz ~ 30 MHz	1 μHz ~ 60 MHz
Square Wave Frequency Range	1 μHz ~ 24 MHz	1 μHz ~ 24 MHz
Ramp Wave Frequency Range	1 μHz — 20 MHz	1 μHz — 20 MHz
Pulse Wave Frequency Range	1 μHz — 24 MHz	1 μHz — 24 MHz
Gaussian Noise Bandwidth (-3 dB)	30 MHz	60 MHz
Amplitude Range (50 Ω)	≤10 MHz: 1 mVpp — 10 Vpp	≤10 MHz: 1 mVpp — 10 Vpp ≤60 MHz: 1 mVpp — 5 Vpp
Sampling Rate	200 MSa/s
Vertical Resolution	14 bits
Channels	2
Max Output Amplitude	20 Vpp
Modulation Types	AM, FM, PM, FSK, ASK, PSK
Sweep Modes	Linear Sweep, Logarithmic Sweep
Built-in Frequency Counter	7-Digit (100 mHz – 100 MHz)
Display Screen	4.3″ TFT LCD, 480 × 272 Pixels (H × V)
Power Input	Type-C 5V/2A
Output Impedance	50 Ω Typical

Final summary

Final Verdict: FNIRSI TSG6020 TSG3020

The FNIRSI TSG6020 TSG3020 Function Signal Generator series represents a compelling choice for anyone requiring a versatile and precise signal source. Its dual-channel output, high sampling rate, and extensive waveform capabilities make it an excellent investment for electronics repair, educational settings, and hobbyist projects. While the absence of an included battery and the amplitude reduction at higher frequencies are minor considerations, the intuitive touchscreen interface, comprehensive modulation options, and integrated frequency counter significantly outweigh these points. For professionals and enthusiasts seeking a reliable, feature-rich, and portable signal generator that offers exceptional value for its price, the FNIRSI TSG series is an ideal selection, with its broad functionality being the standout advantage. For more in-depth analyses, visit andibond.com.
