Product Introduction

The FNIRSI DS215H is a versatile 2-in-1 dual-channel digital test instrument designed to address the complex needs of maintenance and R&D industries. It uniquely combines the functionalities of a high-precision digital oscilloscope with a robust signal generator in a single, portable device. This integration streamlines workflows for professionals and enthusiasts alike, eliminating the need for multiple tools and offering a compact solution for on-the-go diagnostics and development. Its blend of advanced measurement capabilities, wide voltage protection, and user-friendly design positions it as an indispensable tool for anyone working with electronics, from micro-signal analysis to high-voltage system testing. The DS215H aims to provide accurate, efficient, and flexible testing for a broad spectrum of electronic applications. Check out our other technical reviews for more hardware testing.

Hardware specifications

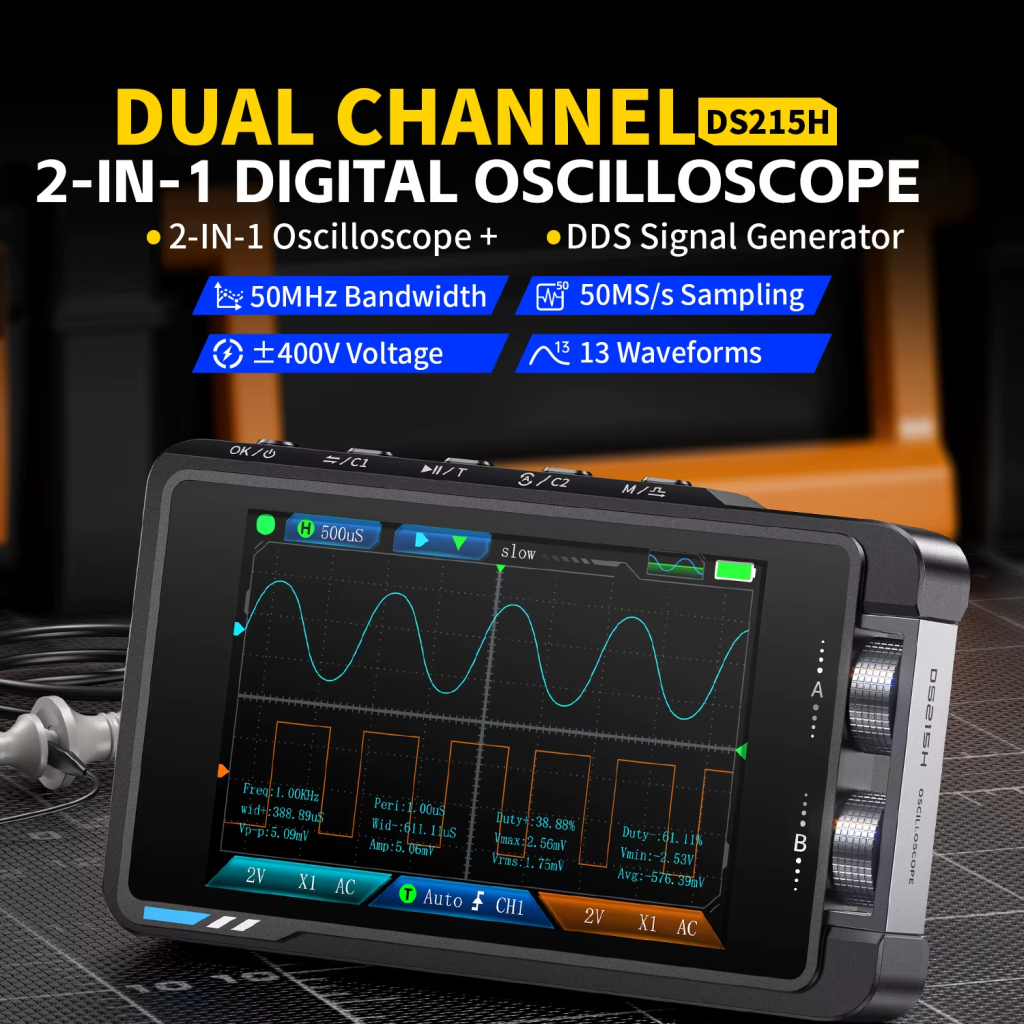

Core Specifications: FNIRSI DS215H

Display: 3.5-inch IPS high-definition color screen (480×320 resolution)
Backlight: Brightness Adjustable
Power Supply: TYPE-C (5V/1A)
Battery: 1500mAh rechargeable lithium battery, up to 4 hours continuous operation
Languages: Supports 8 languages (ZH, EN, RU, JA, ES, PT, DE, KO)
Product Size: Approximately 66x110x19.5mm
Bare Weight: Approximately 138g
Channel: Dual Channel
Bandwidth: 50MHz analog bandwidth
Real-time sampling rate: 250 MSa/s
Storage space: 14M
Time base range: 20ns/div — 20s/div
Vertical sensitivity: 10mV/div — 10V/div
Vertical resolution: 8 bits
Input impedance: 1MΩ
Probe attenuation factor: 1x / 10x
Input coupling: AC / DC
Trigger type: Rising edge / Falling edge
Peak voltage: ±400V
Trigger level range: 8 grids (positive and negative)
Trigger mode: Auto / Normal / Single
Output waveform: 13 types of waveform outputs
Waveform frequency: 0-50 KHz (adjustable by 1Hz step)
Square wave duty cycle: 0-100%
Waveform amplitude: 0.1V — 3.0V
Measurement data: Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, Duty cycle, Pulse width
Waveform display mode: Scroll
Certification: CE, WEEE
Origin: Mainland China
DIY Supplies: Electrical

Available Versions

Available Versions & Selection Guide

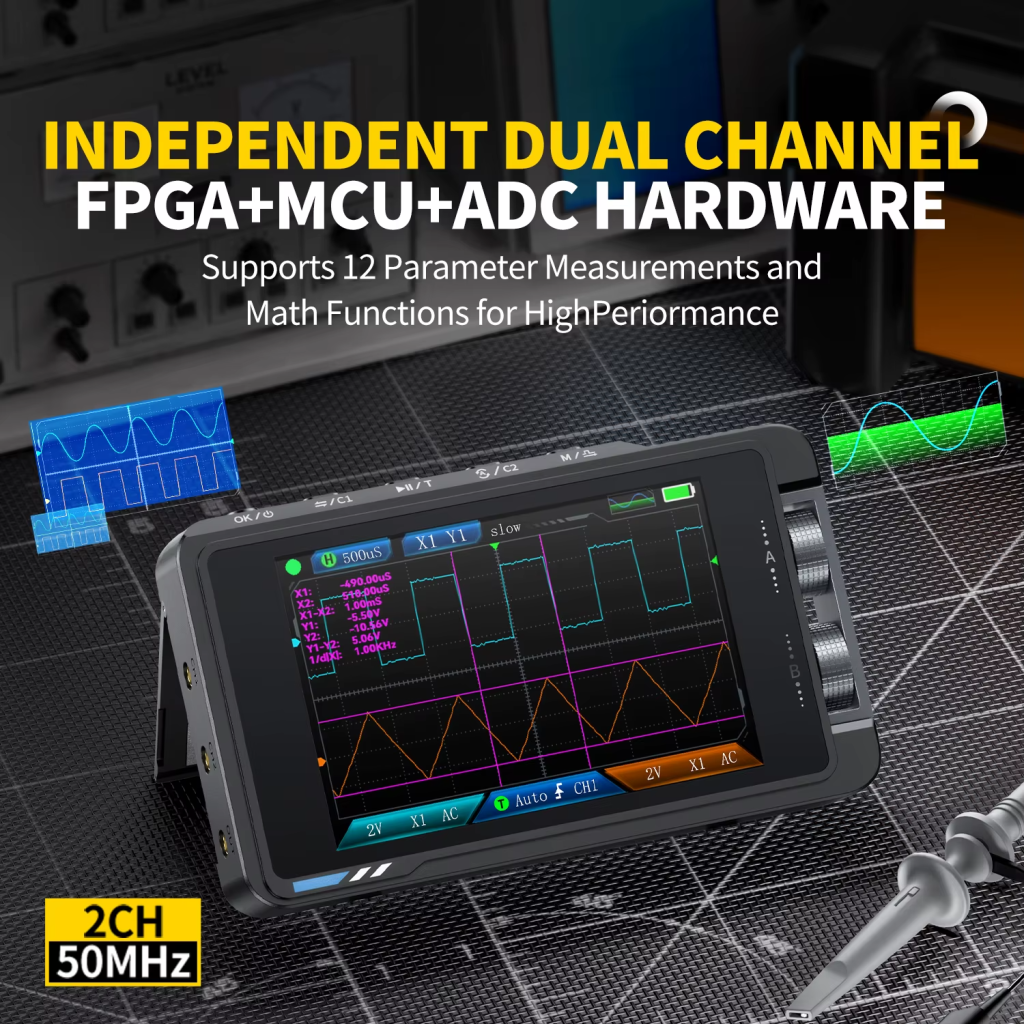

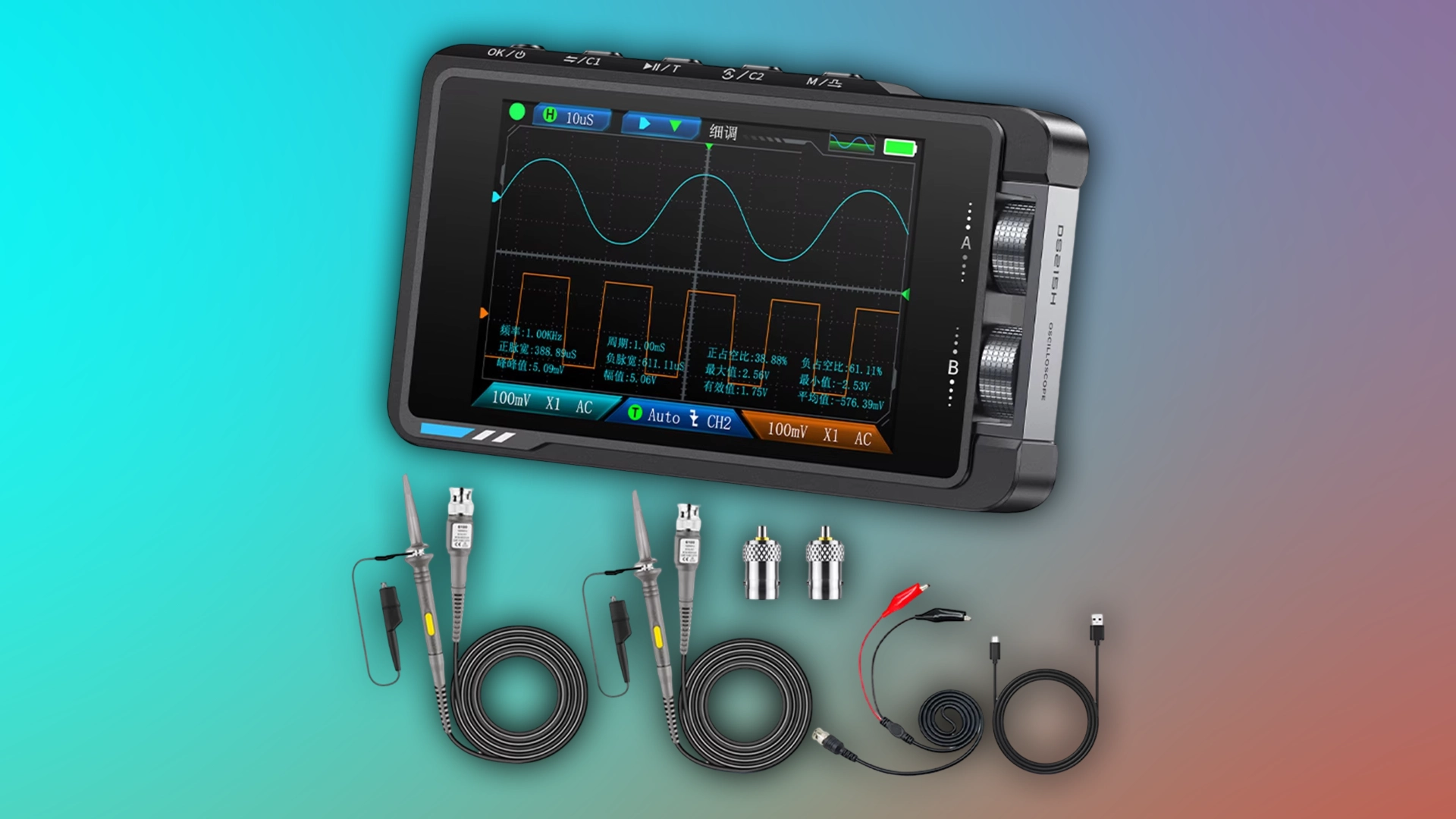

The FNIRSI DS215H is available in two main configurations to suit different user needs. The DS215H P6100x1 (Standard) package includes the host device, one P6100 high voltage probe, one adapter, one alligator clip probe, one charging cable, one user manual, and a packaging color box. For users requiring extended capabilities, the DS215H P6100x2 (Option) package provides the host device, two P6100 high voltage probes, two adapters, one alligator clip probe, one charging cable, one user manual, and a packaging color box, offering dual-probe functionality for more complex measurements.

Package Contents

What’s in the Box?

The FNIRSI DS215H comes with comprehensive packages depending on the selected version:

NO.1 (Standard)

— Host device *1
— P6100 high voltage probe *1
— Adapter *1
— Alligator clip probe *1
— Charging cable *1
— User manual *1
— Packaging color box *1

NO.2 (Option)

— Host device *1
— P6100 high voltage probe *2
— Adapter *2
— Alligator clip probe *1
— Charging cable *1
— User manual *1
— Packaging color box *1

Features and benefits

Why I love FNIRSI DS215H

High-Precision Measurement Capabilities: The FNIRSI DS215H boasts a high-precision sampling rate of 250 MSa/s and a 50MHz analog bandwidth, ensuring that users can capture and analyze signals with exceptional clarity and detail across a wide range of frequencies. This capability is crucial for accurate diagnostics in complex electronic circuits, allowing engineers and technicians to identify subtle anomalies and ensure system stability.
Dual-Channel Flexibility and Wide Voltage Protection: With its dual-channel design, the DS215H enables comprehensive testing of complex systems, allowing simultaneous observation of two different signals. Furthermore, it supports peak voltage measurements up to ±400V, providing a robust and safe performance envelope for working with high-voltage scenarios, protecting both the device and the user.

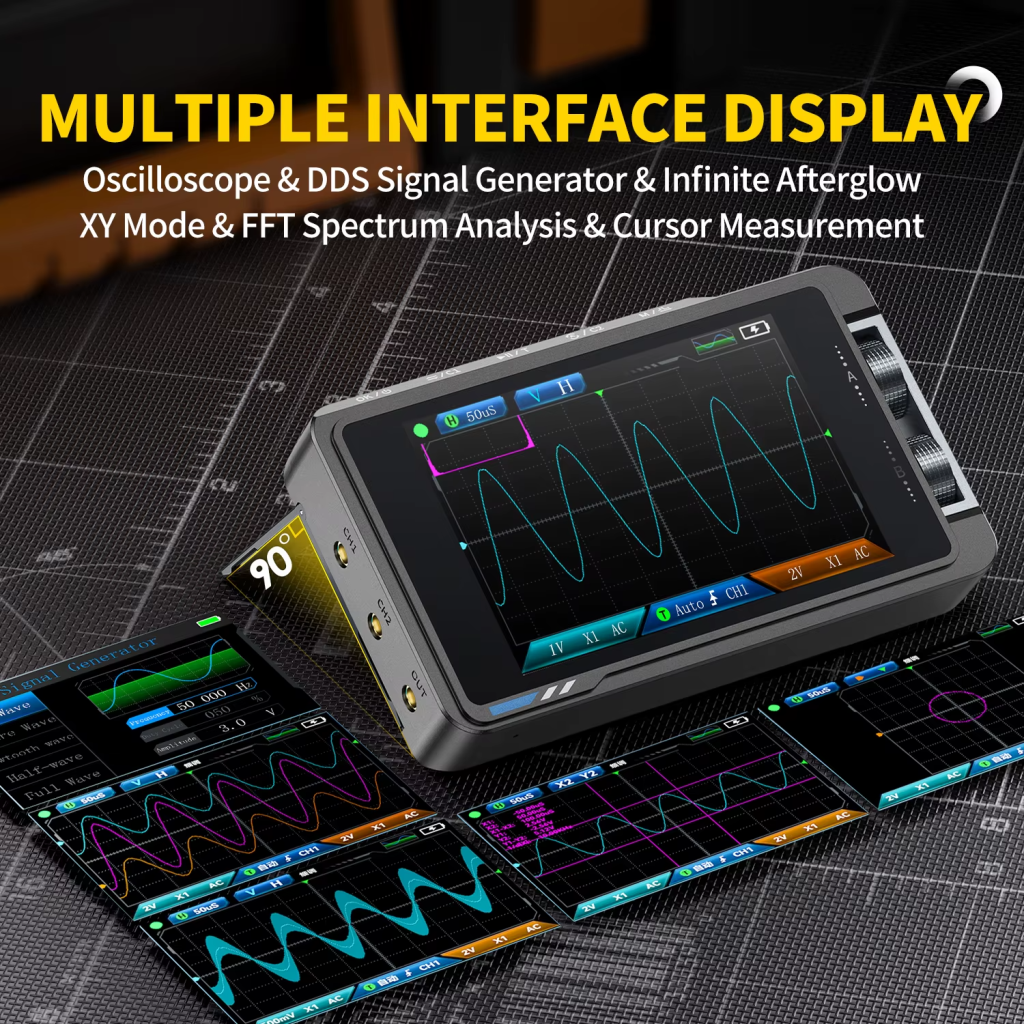

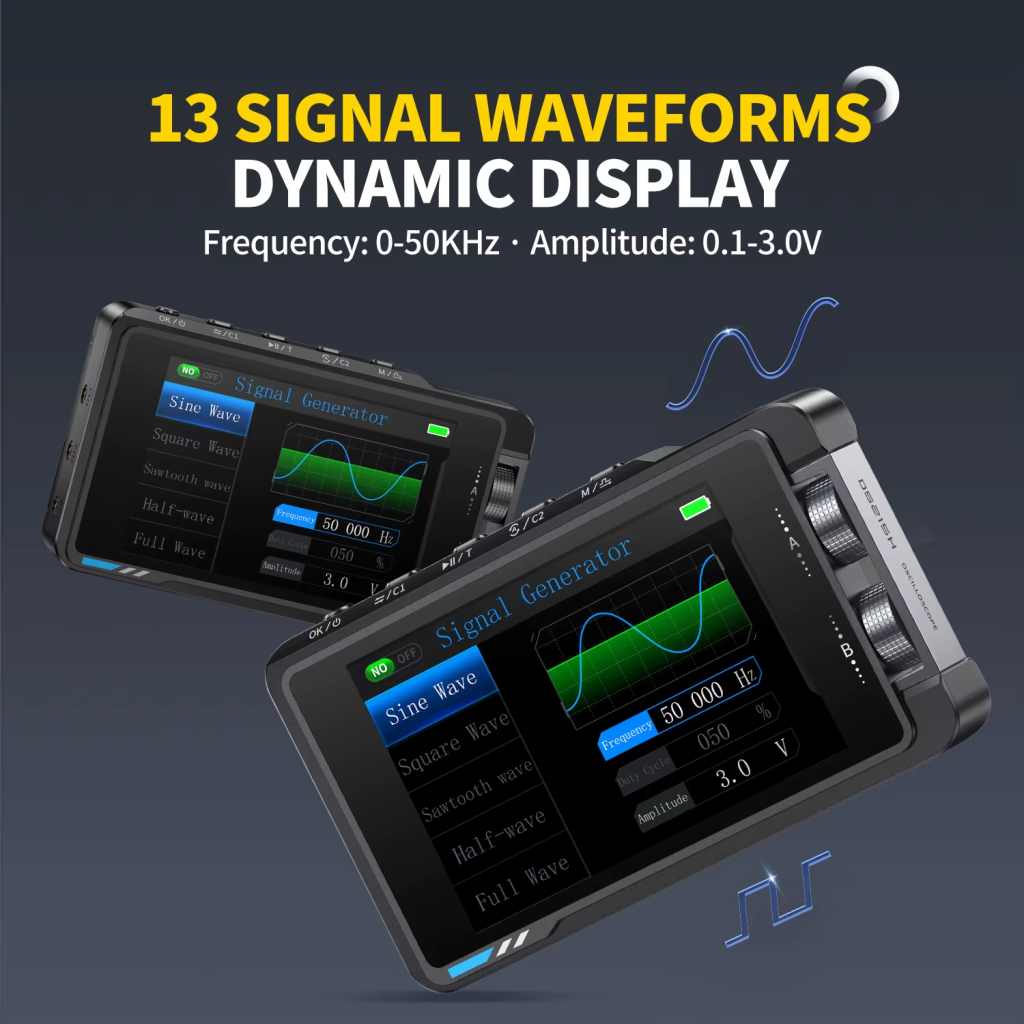

Integrated Signal Generator for Versatile Testing: Beyond its oscilloscope functions, the DS215H includes a powerful signal generator capable of producing 13 different waveform outputs. With an adjustable frequency range from 0 to 50 KHz (in 1Hz steps), and customizable amplitude (0.1V — 3.0V) and duty cycle (0-100%), this feature makes the device an all-in-one solution for injecting test signals into circuits, facilitating debugging, and verifying component responses.
Portable Design with Long-Lasting Battery Life: Designed for maximum portability, the DS215H features a compact size of approximately 66x110x19.5mm and a bare weight of just 138g. Its 3.5-inch IPS high-definition color screen (480×320 resolution) with adjustable backlight ensures clear visibility in various environments. Powered by a 1500mAh rechargeable lithium battery, it offers up to 4 hours of continuous operation, making it ideal for field work, educational purposes, and mobile troubleshooting without constant access to power.
Advanced Triggering and Data Analysis Features: The device offers multiple trigger modes (Auto, Normal, Single) and trigger types (Rising edge / Falling edge) with an 8-grid trigger level range, providing precise control over signal capture. Additionally, its 14M storage space allows for screenshot saving and viewing, enhancing data analysis and documentation. The ability to measure various parameters like Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, Duty cycle, and Pulse width further empowers users with comprehensive signal characterization.

Pros and Cons

Strengths & Weaknesses:

What I Like

High-precision 250 MSa/s sampling rate and 50MHz bandwidth for accurate measurements.
Dual-channel functionality for comprehensive system analysis.
Integrated signal generator with 13 waveform outputs (0-50 KHz, 0.1-3.0V amplitude, 0-100% duty cycle).
Portable and lightweight design (138g, 66x110x19.5mm) with a 3.5-inch IPS color screen.
Long battery life of up to 4 hours from a 1500mAh battery.
Wide voltage protection up to ±400V.
Supports 8 languages, enhancing global accessibility.
Screenshot saving and viewing for convenient data analysis.
Multiple trigger modes (Auto, Normal, Single) and types (Rising/Falling edge) with 8-grid level range.
Good build quality for the price.

Points to Consider

FFT function is reported as having no scale and being too small to be useful.
Firmware issues reported, including poor trigger options and aliases on the scope display requiring time scale double-checking.
Built-in function generator may have a permanent DC offset, requiring an external series capacitor for 0V DC offset sinewaves.
Manual could be more detailed with better explanations and photos.
Some users reported issues with the quality of the second probe/adapter in the P6100x2 kit.
One user reported a «pushed in» button due to poor soldering.
Frequency measurement inaccuracies at lower frequencies (below 1 KHz) if many periods are on screen.
No apparent option to shift the signal below the screen boundary.

Price and Availability

Where to Buy & Customer Reviews

Check Price on AliExpress (Best Value)

AliExpress

Find on eBay (New & Used)

ebay

As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

Store info

STORE

⭐ 98.6% Positive Feedback | 123.0K Followers

Name:	FNIRSI Official Store
Store no.:	2939001
Location:	China
Open since:	Feb 26, 2017

Detailed seller ratings

Item as Described	4.9 Above Average
Communication	4.9 Above Average
Shipping Speed	4.9 Above Average

OTHER GOODS

User reviews

User Reviews & Feedback Analysis ⭐ 4.6 (47) | Sold (208)

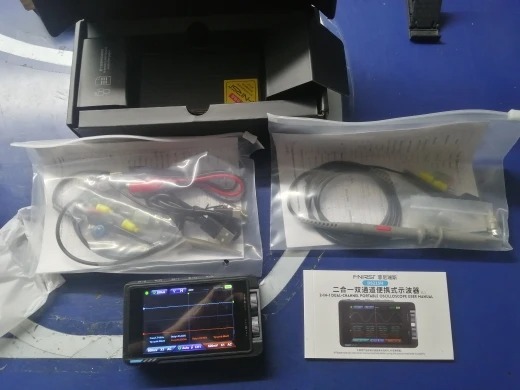

Reviews FNIRSI DS215H

Authentic Feedback Analysis:

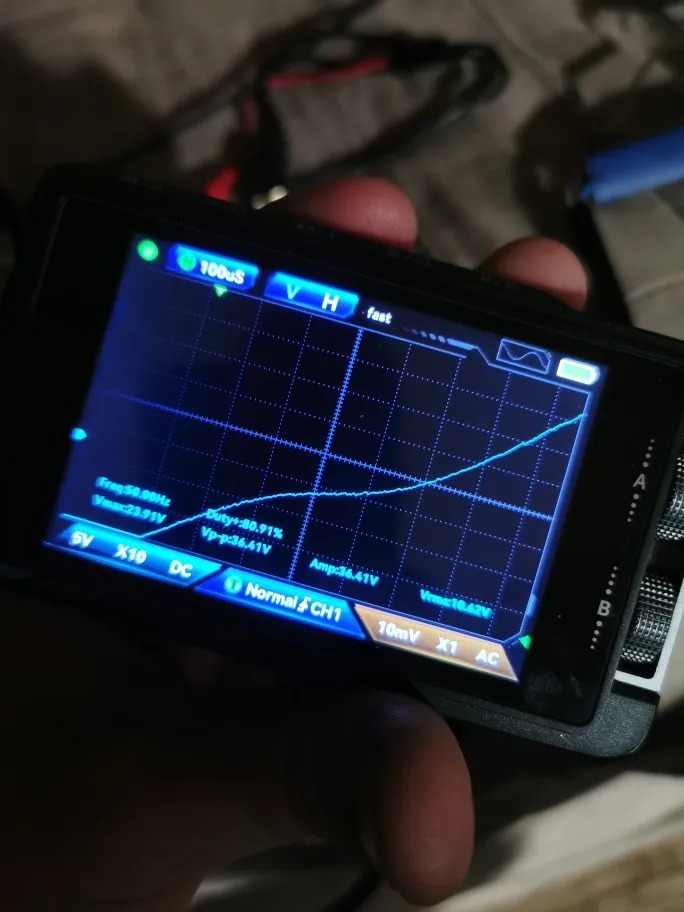

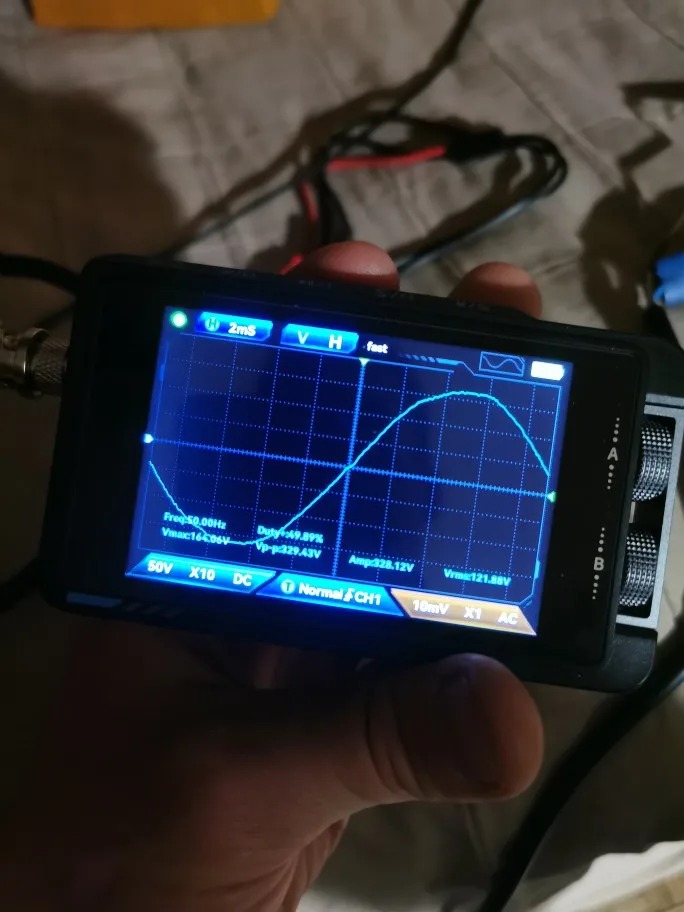

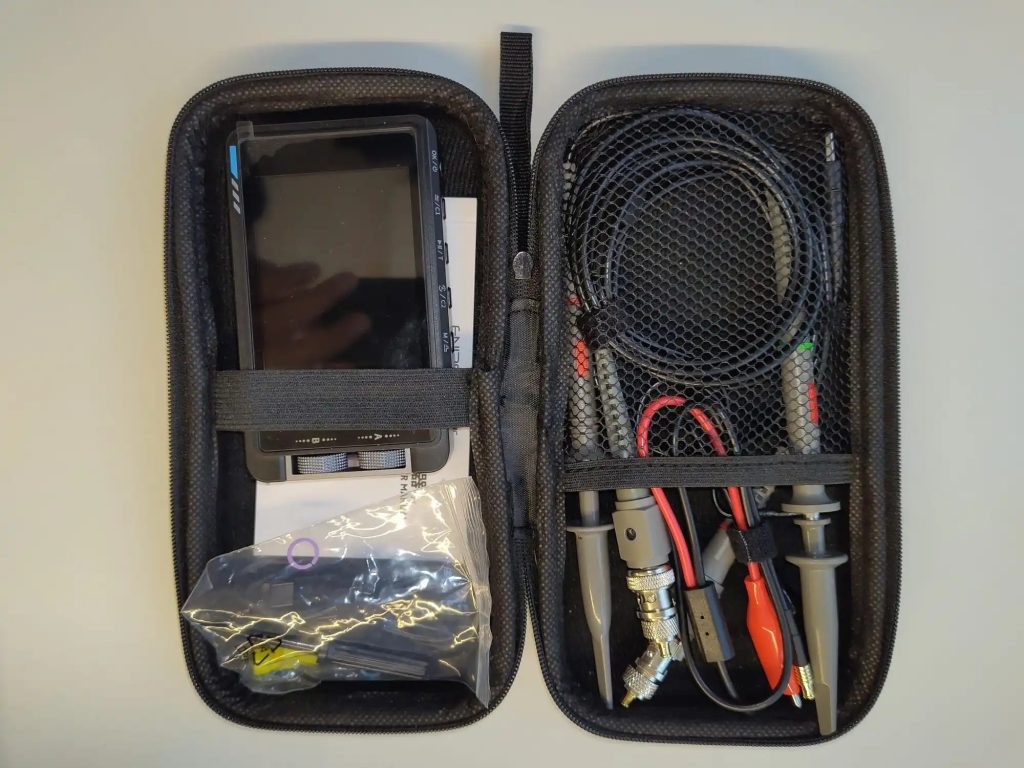

⭐ 5.0/5 | c***A: The product is as described and works as described. There are great youtube reviews that test every functionality. I’m only disappointed with the FFT, since it has no scale and is so small that I can’t imagine how can it be useful, but the features you get for the price are insane. Every one of my fellow audio electronics enthusiasts that has seen it wants one after seeing it working. The build quality feels very good, although one of the knobs doesn’t turn that smoothly (it feels as if it grinds the plastic housing at some spots), but it doesn’t affect the functionality. I like it so much that I would buy it again if it got lost. The case ‘Hartes EVA-Gehäuse für Xiaomi Car Inflator 1S Pumpengehäuse’ [Not included] fits it perfectly.
⭐ 5.0/5 | AliExpress Shopper: all ok.
⭐ 5.0/5 | I***R: all ok… working fine…. thx
⭐ 5.0/5 | AliExpress Shopper: Amazing little scope. Good quality and works great.
⭐ 5.0/5 | a***a: At first i had difficulty to understand all the menu’s and knobs but after playing with the machine it became all clear. The manual could be much better; more explanation and foto’s. The scope works well and i am satisfied. So much fun with this small scope, cheap and accurate, good seller.
⭐ 5.0/5 | J***a: I haven’t tried it yet but the good quality is noticeable.
⭐ 5.0/5 | D***r: I am satisfied with the device.

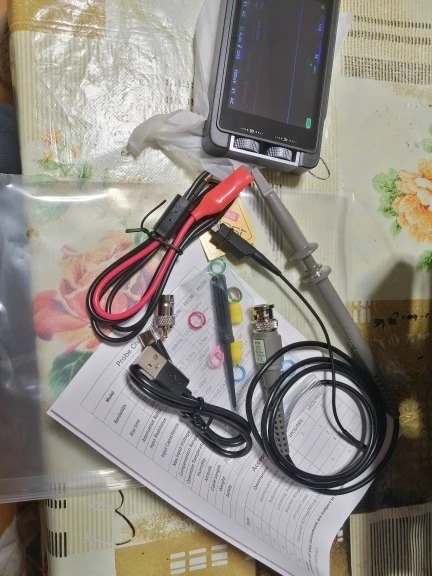

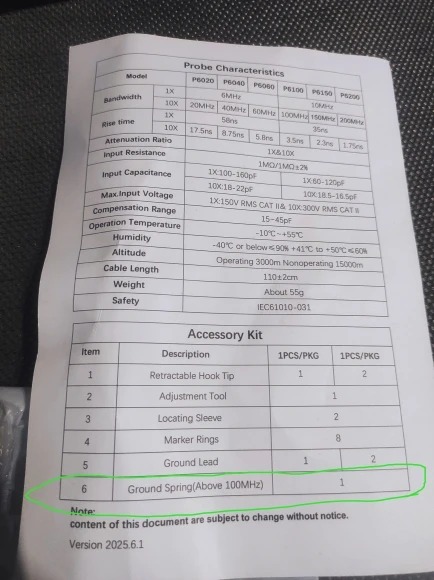

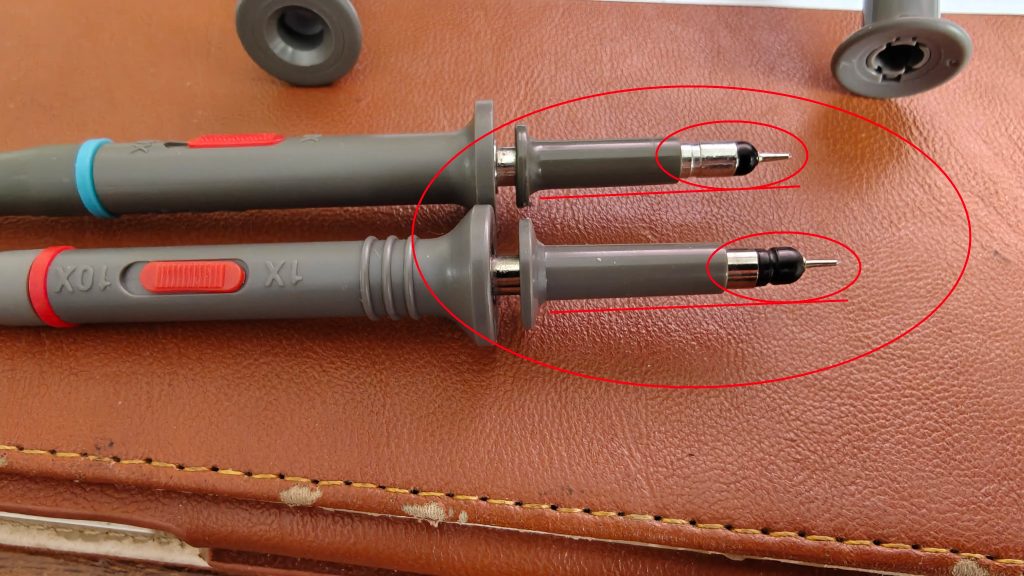

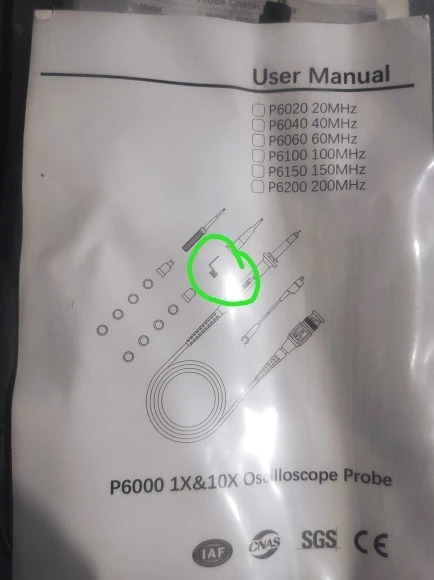

⭐ 2.0/5 | AliExpress Shopper: Both Probe kits do not include Ground Spring !!!
⭐ 3.0/5 | t***r: it is very small but excellent
⭐ 5.0/5 | h***n: Excellent. The device is very convenient to use
⭐ 5.0/5 | AliExpress Shopper: good packaging and arrived in good time, can’t wait to learn functions
⭐ 5.0/5 | h***r: very good.

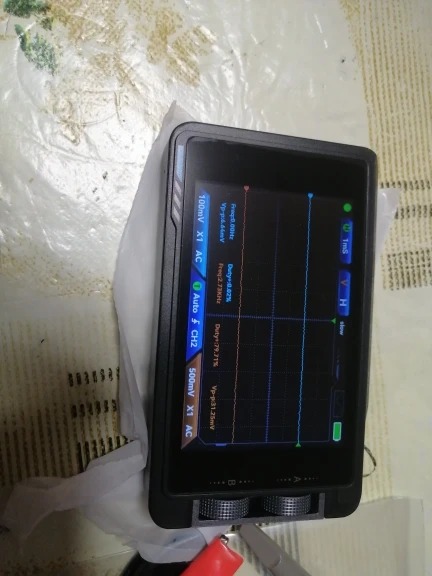

⭐ 3.0/5 | AliExpress Shopper: Nice built, but the firmware sucks ass! Trigger options are poor, the FFT function is a bad joke. The scope shows all aliases so you have to double check the time scale setting. Hoping to get a serious firmware update otherwise I do not recommend buying it! Beware that the built-in function generator has a permanent DC offset so you need to add a series capacitor if you want a sinewave with 0V DC offset! I am disappointed.
⭐ 5.0/5 | AliExpress Shopper: Originally an official store. This manufacturer truly makes excellent products, and the shop itself provides thorough service and support. This product is no exception. It’s a 2ch Castle Scope equipped with a signal generator, and above all, the design is superb.
⭐ 5.0/5 | A***o: Very good product
⭐ 5.0/5 | AliExpress Shopper: Received without any issues, super reliable and fast shipping, I have performed tests and I am satisfied with the purchase, I hope to give more information soon about the oscilloscope’s performance 👌👌👌
⭐ 4.0/5 | t***t: Simple and quite easy to use, operating manual not very clear. Quite difficult to understand the instructions and need to make trials and errors to get around the setup buttons. Users unfamiliar with these operations functions may find it difficult to use!
⭐ 5.0/5 | I***r: A good portable oscilloscope, considering the price. Only two types of trigger, but that’s fine.
⭐ 5.0/5 | K***r: very fast shipping, excellent quality, perfect 🙂

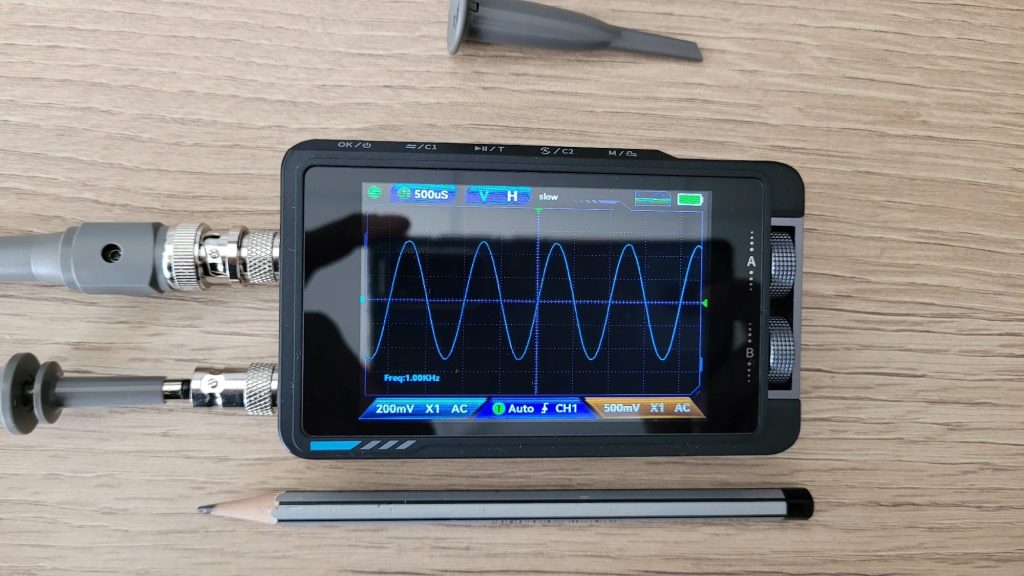

⭐ 5.0/5 | М***ч: Looks great. Knobs are conveniently located. For this price, the waveforms are normal.
⭐ 5.0/5 | AliExpress Shopper: Fast delivery, 9 days from order. First impressions are excellent. Controls are convenient and clear. I haven’t used oscilloscopes before, but there is someone who knows how it should work, based on this, when checking the sine wave in bluetti ac70p from the battery, it is ideal, better than from the mains, but the station cannot start a 150w refrigerator compressor. Well packaged, complete as described.

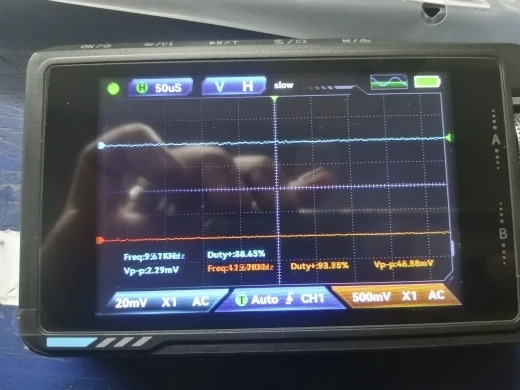

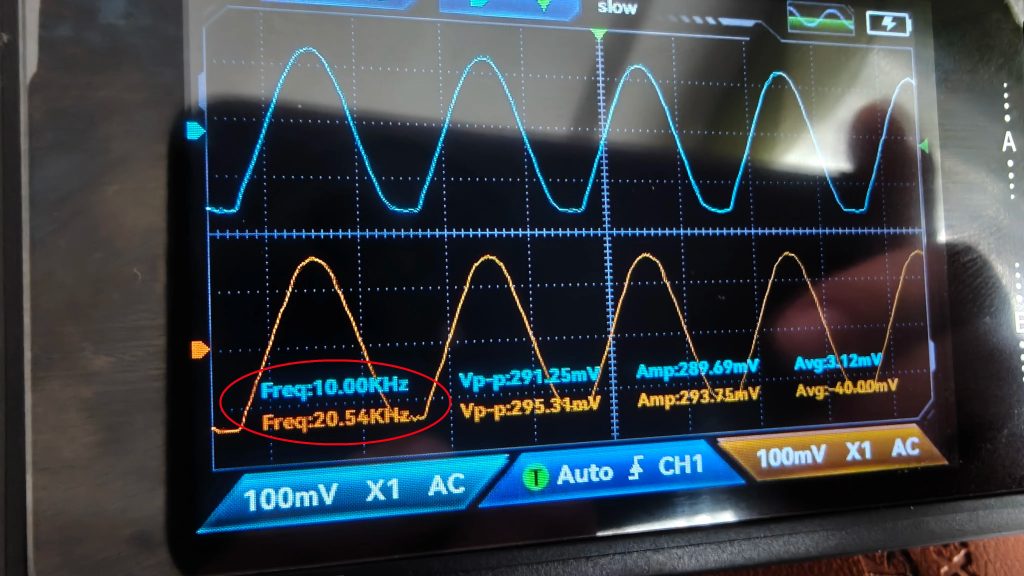

⭐ 5.0/5 | AliExpress Shopper: there are small nuances, but everything else is excellent. at a frequency below 1 kilohertz, the frequency shows incorrectly, 2 times less if there are many periods on the screen, if you reduce the time and have one wave or even half a wave on the screen, then everything becomes correct.
⭐ 5.0/5 | AliExpress Shopper: for this price it is a very good choice!
⭐ 5.0/5 | O***n: Plastic body. Functionality as stated, satisfied with the purchase.

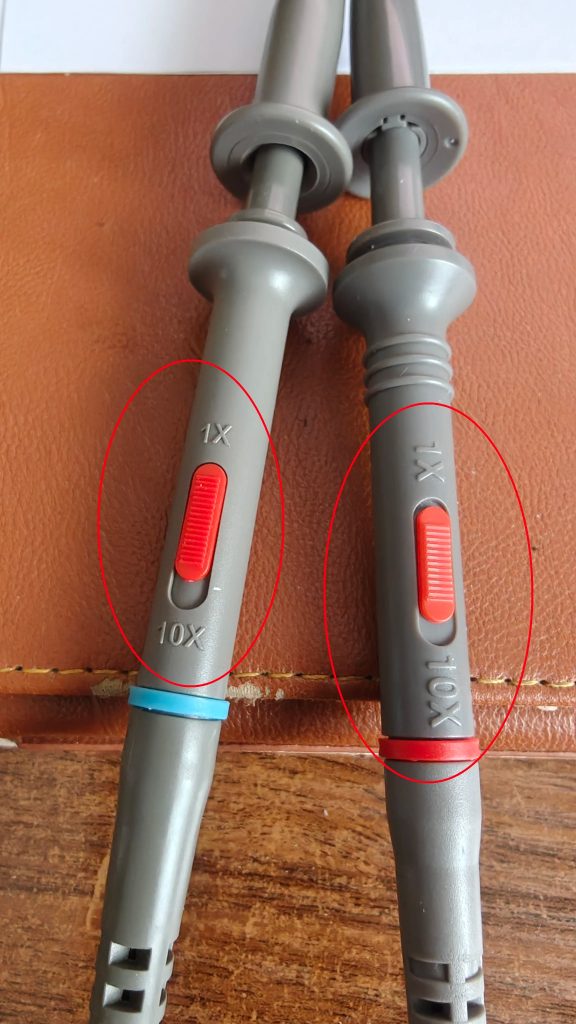

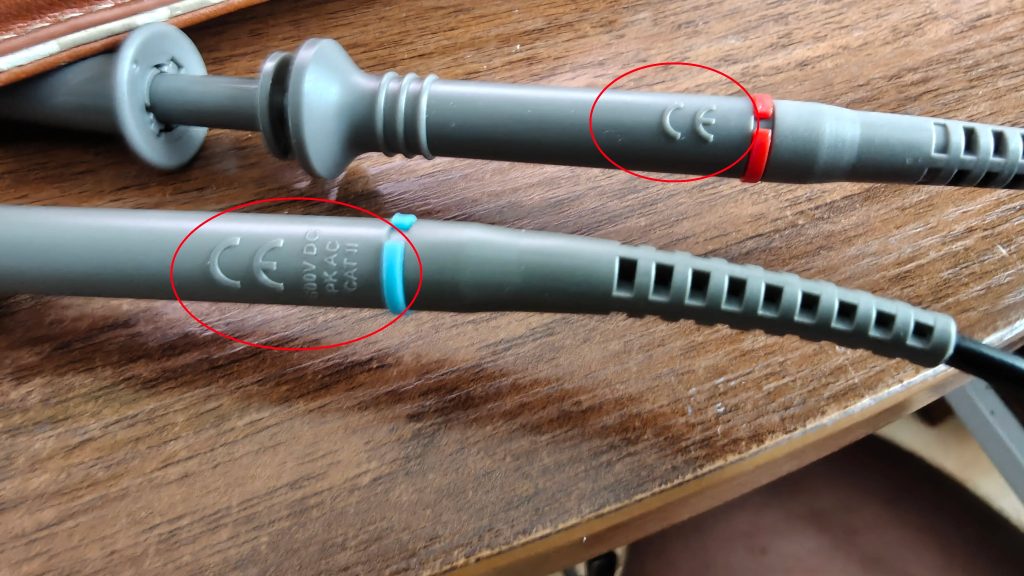

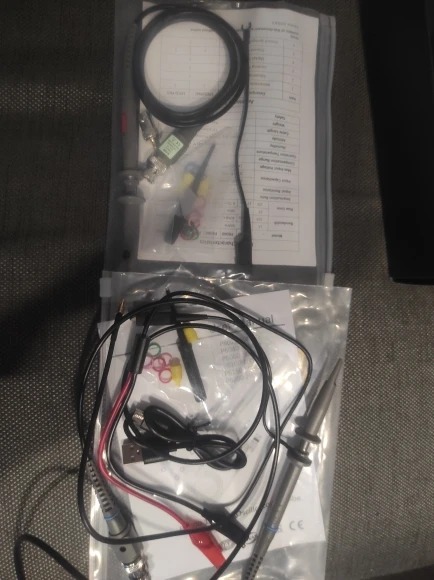

⭐ 2.0/5 | A***m: The oscilloscope is relatively normal. The same cannot be said about the additional (second) measurement cable. It is of terrible quality, as is its adapter. In the photo, you can see the difference, with the blue ring — this is the one that comes with the device. And with the red, this is what the seller adds himself. You can see what a difference in device readings due to the poor quality cable.

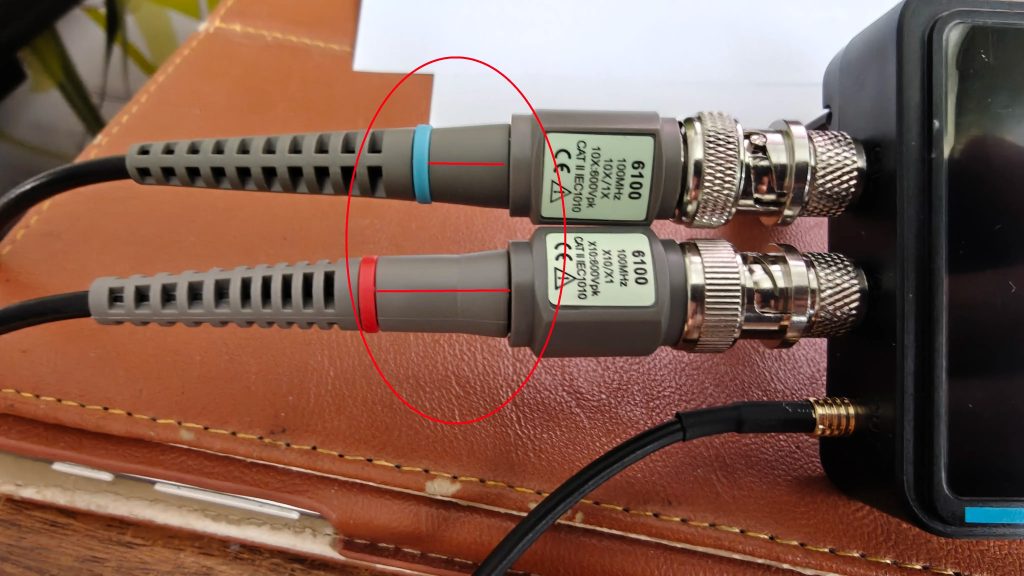

⭐ 5.0/5 | D***i: The adapter included with the second probe turned out to be loose and wobbles in the oscilloscope, which affects the readings of one channel. There is no way (or I haven’t found it) to shift the signal down beyond the screen.
