Product Introduction

The LILYGO T-Connect ESP32-S3 Industrial Control Development Board is a highly specialized and robust solution designed to bridge the gap between industrial communication protocols and modern IoT connectivity. This unique device addresses the critical need for seamless integration of industrial equipment, such as Battery Management Systems (BMS) and inverters, into smart home or industrial automation platforms like Home Assistant, by offering multiple isolated RS485 and CAN interfaces. It stands out in the market for its powerful ESP32-S3 core combined with galvanic isolation on its communication buses, making it an ideal choice for complex energy management, factory automation, and robust IoT projects where reliability and safety are paramount. Check out our other technical reviews for more hardware testing.

  • LILYGO T-Connect ESP32-S3
    • Technical Support & Resources

    Sample Code For Reference:

  • LILYGO T-Connect ESP32-S3
    • Hardware specifications

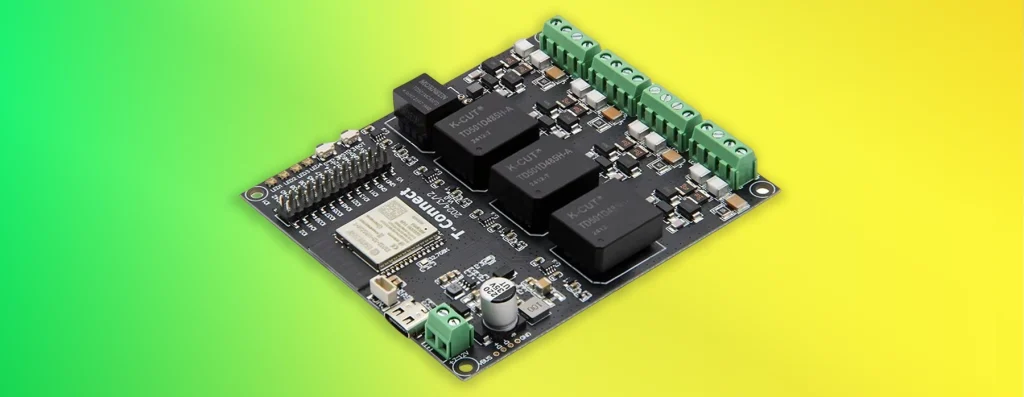

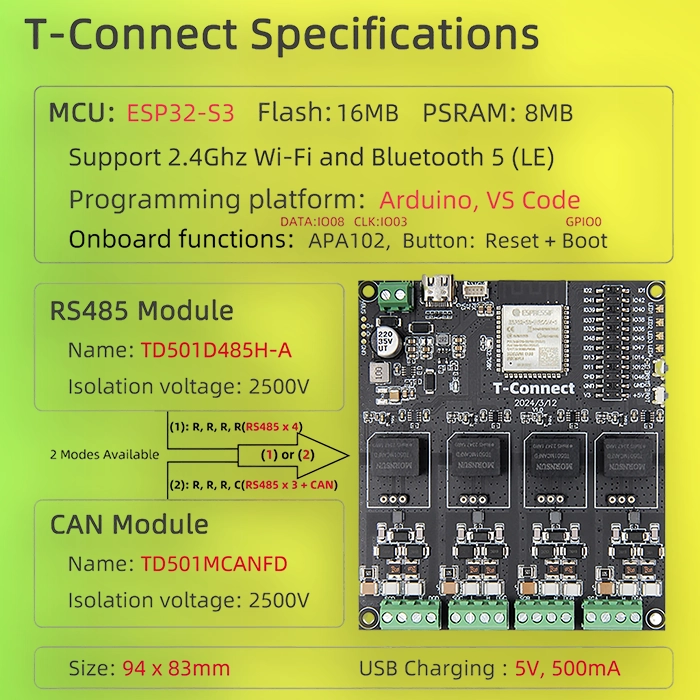

    Core Specifications: LILYGO T-Connect ESP32-S3 Industrial Control Development

    • MCU: ESP32-S3
    • Flash: 16MB
    • PSRAM: 8MB
    • Wireless Connectivity: 2.4Ghz Wi-Fi, Bluetooth 5 (LE)
    • Programming Platforms: Arduino, VS Code
    • DATA Pin: IO08
    • CLK Pin: IO03
    • GPIO: GPIO0
    • Onboard Functions: APA102, Buttons (Reset + Boot)
    • RS485 Module: TD501D485H-A (2500V Isolation, 2 Modes Available)
    • CAN Module: TD501MCANFD (2500V Isolation)
    • Dimensions: 94 x 83mm
    • USB Charging: 5V, 500mA
    Available Versions

    Available Versions & Selection Guide

    The LILYGO T-Connect ESP32-S3 is available in several configurations to suit diverse industrial needs:

    • — 3 RS485 and 1 CAN
    • — 4 RS485
    • — 4 CAN
    Package Contents

    What’s in the Box?

    The package typically includes the LILYGO T-Connect ESP32-S3 Industrial Control Development Board itself. Additional accessories may vary by vendor.

    Features and benefits

    Why I love LILYGO T-Connect ESP32-S3

    • Powerful ESP32-S3 Core with Ample Memory: The integrated ESP32-S3 chipset (16MB Flash, 8MB PSRAM) provides exceptional processing power for demanding industrial control logic and robust data logging, while extensive memory allows for complex firmware and web interfaces, ensuring seamless Wi-Fi and Bluetooth 5 (LE) connectivity for remote monitoring, integration with IoT platforms like Home Assistant, and efficient data exchange in real-time.
    • Multiple Galvanically Isolated RS485 Interfaces: Featuring TD501D485H-A modules with 2500V isolation, this board expertly resolves challenges of connecting numerous industrial devices (e.g., BMS, PLCs, smart meters) on shared buses, preventing ground loops, mitigating electrical noise, and protecting the sensitive ESP32-S3 microcontroller from voltage transients inherent in harsh industrial environments, thus guaranteeing stable and reliable long-term operation.
    • Isolated CAN Bus Module for Critical Systems: Equipped with TD501MCANFD modules, also featuring 2500V isolation, the T-Connect enables secure and reliable communication with critical CAN bus systems, such as advanced battery management systems (BMS) in electric vehicles or energy storage, and industrial automation networks, ensuring data integrity and robust operation in electrically noisy settings.
    • Industrial-Grade Design and Development Flexibility: Its compact 94 x 83mm footprint is optimized for integration into control cabinets and compact enclosures, while broad programming platform support (Arduino, VS Code) makes it highly accessible for rapid prototyping and deploying custom, robust firmware solutions tailored for specific industrial automation and IoT applications.
    Pros and Cons

    Strengths & Weaknesses:

    What I Like

    • — Unique combination of multiple isolated RS485 and CAN interfaces on a single board
    • — Powerful ESP32-S3 microcontroller with generous 16MB Flash and 8MB PSRAM
    • — Robust and stable Wi-Fi and Bluetooth 5 (LE) connectivity for seamless IoT integration
    • — Critical 2500V galvanic isolation on all communication interfaces ensures industrial reliability and safety
    • — Flexible programming support with Arduino and VS Code environments

    Points to Consider

    • — Specific industrial connectors might require adapter cables for some legacy or non-standard use cases
    • — The 5V/500mA USB charging limit may require external power considerations for highly power-intensive peripherals or applications
    Price and Availability

    Where to Buy & Customer Reviews

    Check Price on AliExpress (Best Value)

    AliExpress

    Find on eBay (New & Used)

    ebay

    As an Amazon Associate, eBay Partner, and AliExpress affiliate, I may receive compensation if you make a purchase through the links on this page at no extra cost to you. This supports my technical reviews and independent hardware testing.

    Store info

    STORE

    96.7% Positive Feedback ⭐ | 30.6K Followers

    Name:lilygo Official Store
    Store no.:2090076
    Location:China
    Open since:Mar 16, 2016

    Detailed seller ratings

    Item as Described4.8 Above Average
    Communication4.8 Above Average
    Shipping Speed4.8 Above Average
    User reviews

    User Reviews & Feedback Analysis ⭐ 5.0 (4)

    5 Stars 5

    Authentic Feedback Analysis:

    Authentic Feedback Analysis:
    ⭐ 5/5 | AliExpress Shopper: Awesome board for easy connectivity between multiple bms and my deye inverter. The possibility of having multiple rs485 with can is quite unique on the market. The board works flawlessly with home assistant through esphome and provides a stay stable connectivity to wifi.
    ⭐ 5/5 | AliExpress Shopper: Everything is fine, looks excellent. I haven’t tested it with the batteries yet.
    ⭐ 5/5 | a***r:
    ⭐ 5/5 | M***n:

    Pinout and Interface Map

    Pinout Configuration: LILYGO T-Connect ESP32-S3

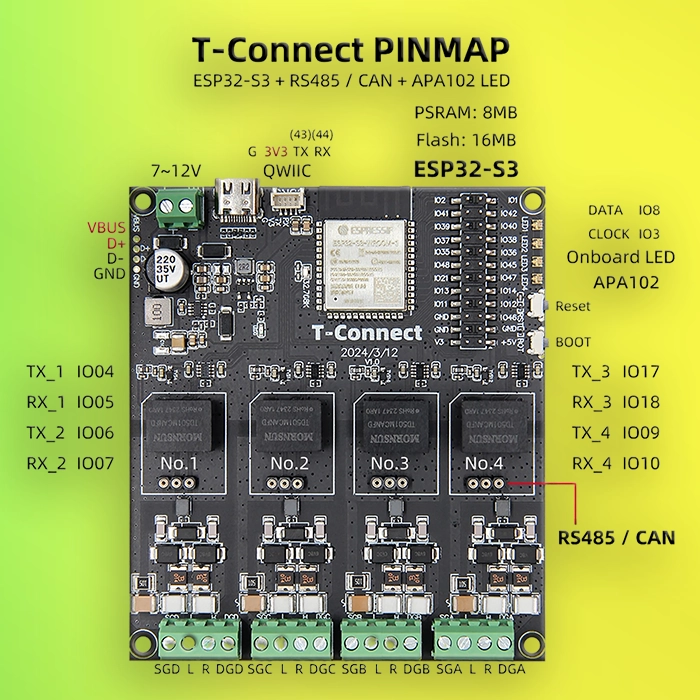

    T-CONNECT PINMAP ESP32-S3 + RS485 / CAN + APA102LED
